group: C1425
The VSH XPress C1425 is a carbon steel 90° bend pipe with 2 tube ends. By using VSH XPress in your piping installation you can install in a quick, easy and clean way. VSH XPress provides a complete piping system suitable for every conceivable application.
heating
cooling
compressed air
solar energy
sprinkler
vacuum
residential
fire protection
commercial building
industry
shipbuilding
ATG
Bureau Veritas
CNBOP
DNV-GL
Lloyds Register
LPCB
QB (CSTBat)
RINA
RISE
SBSC
SPF
VdS
item number
size
dimensions
weight
packaging
gtin
item number
size
Ø12
dimensions
128x78x12 mm
weight
0.07 kg
packaging
bag (10 pce)
gtin
08711985095913
item number
size
Ø15
dimensions
129x79x15 mm
weight
0.1 kg
packaging
bag (10 pce)
gtin
08711985095937
item number
size
Ø18
dimensions
131x81x18 mm
weight
0.11 kg
packaging
bag (10 pce)
gtin
08711985095951
item number
size
Ø22
dimensions
133x85x22 mm
weight
0.13 kg
packaging
bag (10 pce)
gtin
08711985095975
item number
size
Ø28
dimensions
136x98x28 mm
weight
0.19 kg
packaging
bag (5 pce)
gtin
08711985143911
item number
size
Ø35
dimensions
219x139x35 mm
weight
0.38 kg
packaging
bag (2 pce)
gtin
08711985246179
item number
size
Ø42
dimensions
273x173x42 mm
weight
0.61 kg
packaging
bag (2 pce)
gtin
08711985096033
item number
size
Ø54
dimensions
329x229x54 mm
weight
0.93 kg
packaging
bag (2 pce)
gtin
08711985096057
item number
size
d1
DN1
l1
z1
d2
DN2
l2
radius
angle
item number
6201844size
Ø12
d1
12.0
DN1
DN10
l1
72
z1
55
d2
12.0
DN2
DN10
l2
122
radius
14
angle
90
item number
6201855size
Ø15
d1
15.0
DN1
DN12
l1
72
z1
52
d2
15.0
DN2
DN12
l2
122
radius
18
angle
90
item number
6201866size
Ø18
d1
18.0
DN1
DN15
l1
72
z1
52
d2
18.0
DN2
DN15
l2
122
radius
22
angle
90
item number
6201877size
Ø22
d1
22.0
DN1
DN20
l1
74
z1
53
d2
22.0
DN2
DN20
l2
122
radius
27
angle
90
item number
6201888size
Ø28
d1
28.0
DN1
DN25
l1
84
z1
61
d2
28.0
DN2
DN25
l2
122
radius
34
angle
90
item number
6201899size
Ø35
d1
35.0
DN1
DN32
l1
122
z1
96
d2
35.0
DN2
DN32
l2
202
radius
42
angle
90
item number
6201901size
Ø42
d1
42.0
DN1
DN40
l1
152
z1
122
d2
42.0
DN2
DN40
l2
252
radius
51
angle
90
item number
6201910size
Ø54
d1
54.0
DN1
DN50
l1
202
z1
167
d2
54.0
DN2
DN50
l2
302
radius
65
angle
90
color
silver
materials
steel (St 34.2 (1.0034))
finishing
galvanised
shape
Bend (90º)
connection type
tube end
product group
fittings
ETIM class
EC003024 Fitting with 2 connections
HS code
73079980
brand
VSH
series
XPress Carbon
type
C1425
UNSPS
40172802

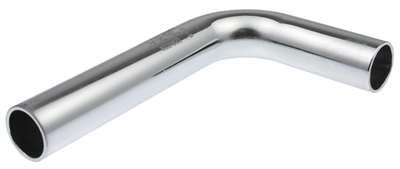

image | png
C1425

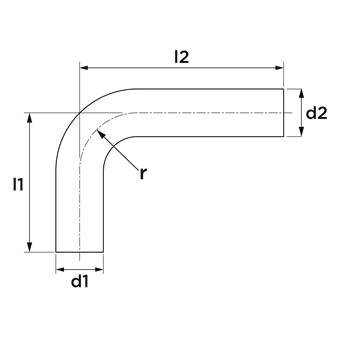

diagram | png
Diagram
certifications | pdf
ATG3056_XPress_Carbon_F
Environmental Product Declaration | pdf
EPD VSH XPress Carbon
certifications | pdf
VSH XPress Carbon LPCB
certifications | pdf
VSH XPress Carbon Lloyds Register
certifications | pdf
VSH XPress Carbon SBSC
certifications | pdf
VSH XPress Carbon SPF
certifications | pdf
VSH XPress QB
installation- & maintenance document | pdf
VSH XPress installation instructions
certifications | pdf
VSH _XPress_VdS
certifications | pdf
VSH_XPress_Galvanized_RINA
certifications | pdf
VSH_XPress_carbon_RISE
certifications | pdf
ATG3056_XPress_Carbon
certifications | pdf
VSH XPress Carbon&Stainless Bureau Veritas
label
value
label
ETIM class
label
Material connection 1
value
Steel
label
Material quality connection 1
value
St 34.2 (1.0034)
label
Surface protection connection 1
value
Galvanic/electrolytic zinc plated
label
Material connection 2
value
Steel
label
Material quality connection 2
value
St 34.2 (1.0034)
label
Surface protection connection 2
value
Galvanic/electrolytic zinc plated
label
Shape
value
Bend
label
Model
value
1-part
label
Bend angle
value
90°
label
Reducing
value
No
label
Eccentric
value
No
label
System specific
value
Yes
label
Connection 1
value
Spigot/tube end
label
Connection 2
value
Spigot/tube end
label
Main colour fitting
value
Grey
label
Flange compression class (PN)
value
PN 16
label
With buffer stud
value
Yes
label
High tensile strength
value
Yes
label
Medium temperature (continuous)
value
-35°C - 135°C
label
Medium temperature (continuous) (imperial)
value
-31°F - 275°F
label
Max. operating pressure at 20 °C
value
16bar
label
Max. operating pressure at 20 °C (imperial)
value
232.06psi
label
With thermal insulation
value
No
label
With sealing rings/gaskets
value
No
label
Capped
value
No
label
With connection indicator
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
FM quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
DIN-CERTCO certificate
value
No
label
With approval for TÜV
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
Certified according to NF 545
value
No
label
KIWA certified
value
No
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
label
Type approval according to BBR/EKS
value
No
