C1417
The VSH XPress C1417 is a carbon steel crossover with 2 tube ends. By using VSH XPress in your piping installation you can install in a quick, easy and clean way. VSH XPress provides a complete piping system suitable for every conceivable application.
applications
solutions
approvals
item number | size | weight | dimensions | packaging | gtin |
---|---|---|---|---|---|
6201921 | Ć12 | 0.06 kg | 154x41x12 mm | bag (10 pce) | 08711985112191 |
6201932 | Ć15 | 0.08 kg | 158x45x15 mm | bag (10 pce) | 08711985112214 |
6201943 | Ć18 | 0.1 kg | 165x49x18 mm | bag (10 pce) | 08711985112238 |
6201954 | Ć22 | 0.15 kg | 178x55x22 mm | bag (10 pce) | 08711985112252 |
6201965 | Ć28 | 0.21 kg | 210x64x28 mm | bag (5 pce) | 08711985144963 |
color | silver |
---|---|
materials | steel (St 34.2 (1.0034)) |
finishing | galvanised |
manufacturer | Aalberts integrated piping systems B.V. (VSH) |
shape | Jump |
connection type | tube end |
product group | fittings |
---|---|
ETIM class | EC003024 Fitting with 2 connections |
HS code | 73079980 |
brand | VSH |
series | XPress Carbon |
type | C1417 |
ATG3056_XPress_Carbon_F certifications |
download | |

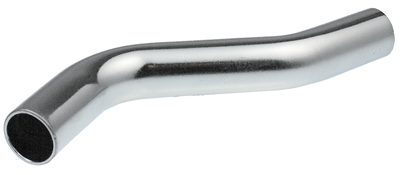

C1417 image |
png | download |
EPD-VSH-XPress-Carbon Environmental Product Declaration |
download | |
VSH XPress Carbon LPCB certifications |
download | |
VSH XPress Carbon Lloyds Register certifications |
download | |
VSH XPress Carbon SBSC certifications |
download | |
VSH XPress QB certifications |
download | |
VSH _XPress_VdS certifications |
download | |
VSH_XPress_Carbon-SPF certifications |
download | |
VSH_XPress_Galvanized_RINA certifications |
download | |
VSH_XPress_carbon_RISE certifications |
download | |
ATG3056_XPress_Carbon certifications |
download | |

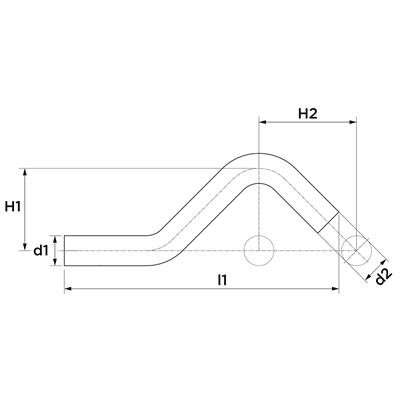

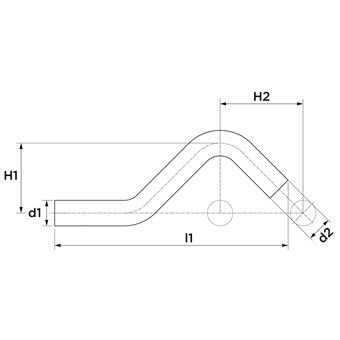

Diagram diagram |
png | download |
VSH XPress Carbon&Stainless Bureau Veritas certifications |
download | |
VSH XPress installation instructions installation- & maintenance document |
download |
label | value |
---|---|
ETIM class | EC003024 Fitting with 2 connections |
Material connection 1 | Steel |
Material quality connection 1 | St 34.2 (1.0034) |
Surface protection connection 1 | Galvanic/electrolytic zinc plated |
Material connection 2 | Steel |
Material quality connection 2 | St 34.2 (1.0034) |
Surface protection connection 2 | Galvanic/electrolytic zinc plated |
Shape | Offset |
Model | 1-part |
Reducing | No |
Eccentric | No |
System specific | Yes |
Connection 1 | Spigot/tube end |
Connection 2 | Spigot/tube end |
Main colour fitting | Grey |
Flange compression class | PN 16 |
With buffer stud | No |
High tensile strength | Yes |
Medium temperature (continuous) | -35°C - 135°C |
Medium temperature (continuous) (imperial) | -31°F - 275°F |
Max. operating pressure at 20 °C | 16bar |
Max. operating pressure at 20 °C (imperial) | 232.06psi |
With thermal insulation | No |
With sealing rings/gaskets | No |
Capped | No |
With connection indicator | No |
With de-aerator | No |
FM quality mark | No |
ULC quality mark | No |
UL quality mark | No |
DIN-CERTCO certificate | No |
With approval for TĆV | No |
DVGW quality mark for gas | No |
DVGW quality mark for water | No |
Certified according to NF 545 | No |
KIWA certified | No |
Gastec QA mark | No |
KOMO certified | No |
Type approval according to BBR/EKS | No |
item number | description | |
---|---|---|
6212646 | VSH XPress C+S insert depth marker 12-108 |
