group: C1046

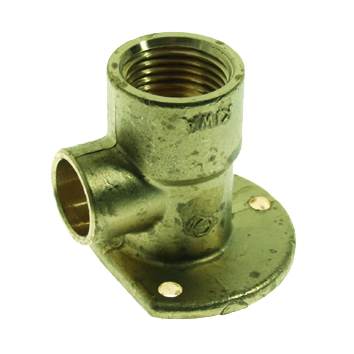

The VSH End Feed Brass C1046 is a high connection wallplate with a solder and a female thread end. VSH End Feed Brass provides an assortment of fittings for every soft-solder application. High quality and great dimensional accuracy are the top priorities of the VSH End Feed Brass product range.
hydrogen (H2)
potable water
natural gas
heating
cooling
compressed air
solar energy
vacuum
non-potable water
industry
commercial building
GASTEC
KIWA
Gastec-H2-ready
code
size
dimensions
weight
packaging
gtin
code
size
15xRp1/2"
dimensions
47x49x41 mm
weight
0.11 kg
packaging
bag (10 pce)
gtin
08711985002812

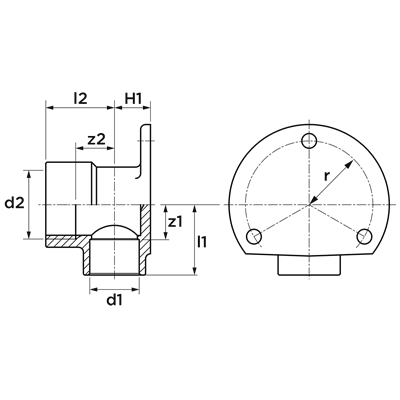

code
size
d1
DN1
l1
z1
d2
DN2
l2
z2
radius
angle
code
size
15xRp1/2"
d1
15.0
DN1
DN12
l1
22
z1
12
d2
21.3
DN2
1/2" (DN15)
l2
23
z2
8
radius
20
angle
90
item
VSH End Feed brass wallplate with high connection (solder x female thread)
item number with gtin
C1046 (08711985002812)
manufacturer
Aalberts integrated piping systems B.V. (VSH)
size
15xRp1/2"
weight
0.11 kg
dimensions
47x49x41 mm
color
brass
materials
brass (CW617N)
finishing
none
shape
Wall plate, 90º
connection type
solder, Rp - female thread cylindrical (BSPT)
pressure rating (PN)
PN 25
sealing
Metal sealing
max operating pressure liquid
25 bar
min. medium temperature
-20 °C
max medium temperature
110 °C
product group
fittingen
ETIM class
EC003099 Wall plateHS code
74122000
brand
VSH
series
End Feed
type
C1046
SCIP
9096d92f-2905-489e-9245-022c48ad808b
label
value
label
etim-class
value
EC003099 Wall platelabel
Housing material
value
Brass
label
Material quality
value
CuZn40Pb2 (CW617N)
label
Surface protection
value
Untreated
label
System specific
value
No
label
Nominal diameter connection 1
value
DN 12
label
Outer pipe diameter connection 1
value
15mm
label
Outer pipe diameter connection 1 (imperial)
value
0.59"
label
Nominal diameter connection 2
value
1/2 inch (15)
label
Outer pipe diameter connection 2
value
21.3mm
label
Outer pipe diameter connection 2 (imperial)
value
0.84"
label
Connection
value
Soldered sleeve
label
Thread size tap connection
value
1/2 inch
label
Length of connection 1
value
22mm
label
Length of connection 1 (imperial)
value
0.87"
label
Working length connection 1
value
11.5mm
label
Working length connection 1 (imperial)
value
0.45"
label
Wall thickness, connection 1
value
1.4mm
label
Wall thickness, connection 1 (imperial)
value
0.06"
label
Length of connection 2
value
23mm
label
Length of connection 2 (imperial)
value
0.91"
label
Working length connection 2
value
8mm
label
Working length connection 2 (imperial)
value
0.31"
label
Length from wall plate
value
41mm
label
Length from wall plate (imperial)
value
1.61"
label
Medium temperature (continuous)
value
110°C
label
Medium temperature (continuous) (imperial)
value
230°F
label
Max. operating pressure at 20 °C
value
25bar
label
Max. operating pressure at 20 °C (imperial)
value
362.59psi
label
With connection indicator
value
No
label
With protective cap
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
KIWA certified
value
Yes
label
Gastec QA mark
value
Yes
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
Yes
label
Type approval according to BBR/EKS
value
No
