VSH End Feed brass wallplate long (solder x female thread)

group: C1041

The VSH End Feed Brass C1041 is a long wallplate with a solder and a female thread end. VSH End Feed Brass provides an assortment of fittings for every soft-solder application. High quality and great dimensional accuracy are the top priorities of the VSH End Feed Brass product range.

  • manufactured from first class brass
  • same fitting applications for water and gas
  • provided with all relevant approvals
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

natural gas

natural gas

heating

heating

cooling

cooling

compressed air

compressed air

solar energy

solar energy

vacuum

vacuum

hydrogen (H2)

hydrogen (H2)

non-potable water

non-potable water

segments

commercial building

commercial building

industry

industry

approvals

GASTEC

GASTEC

Gastec-H2-ready

Gastec-H2-ready

KIWA

KIWA

item number

size

d1

DN1

l1

z1

d2

DN2

l2

z2

radius

angle

item number

0424413

size

12xG3/8"

d1

12.0

DN1

DN10

l1

18

z1

9

d2

17.2

DN2

3/8" (DN10)

l2

31

z2

21

radius

17

angle

90

item number

0424435

size

12xG1/2"

d1

12.0

DN1

DN10

l1

20

z1

11

d2

21.3

DN2

1/2" (DN15)

l2

31

z2

19

radius

20

angle

90

item number

0424446

size

15xRp1/2"

d1

15.0

DN1

DN12

l1

22

z1

11

d2

21.3

DN2

1/2" (DN15)

l2

34

z2

19

radius

20

angle

90

technical drawing for product

characteristics

color

brass

materials

brass (CW617N)

finishing

none

shape

Wall plate (90º)

connection type

solder

sealing

Metal sealing

general

product group

fittings

ETIM class

EC003099 Wall plate

HS code

74122000

brand

VSH

series

End Feed

type

C1041

SCIP

9096d92f-2905-489e-9245-022c48ad808b

technical

max operating pressure liquid

25 bar

min. medium temperature

-20 °C

max medium temperature

110 °C

image for C1041

image | png

C1041

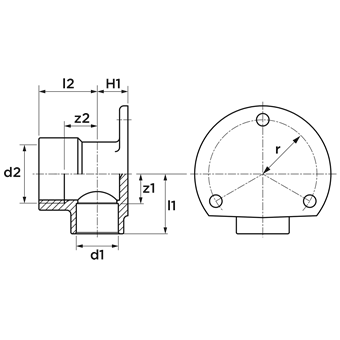

image for Diagram

diagram | png

Diagram

installation- & maintenance document | pdf

VSH End Feed Brass installation instructions

installation- & maintenance document | pdf

VSH End Feed Gas instructions

link to sheet | pdf

VSH End Feed MSDS

certifications | pdf

VSH Soldeer GASTEC

certifications | pdf

VSH Soldeer KIWA

certifications | pdf

VSH Solder fittings Gastec H2

label

value

label

ETIM class

label

Housing material

value

Brass

label

Material quality

value

CuZn40Pb2 (CW617N)

label

Surface protection

value

Untreated

label

System specific

value

No

label

Connection

value

Soldered sleeve

label

Wall thickness, connection 1

value

1.4mm

label

Wall thickness, connection 1 (imperial)

value

0.06"

label

Medium temperature (continuous)

value

°C - 110°C

label

Medium temperature (continuous) (imperial)

value

°F - 230°F

label

Max. operating pressure at 20 °C

value

25bar

label

Max. operating pressure at 20 °C (imperial)

value

362.59psi

label

With connection indicator

value

No

label

With protective cap

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

KIWA certified

value

Yes

label

KOMO certified

value

No

label

Type approval according to BBR/EKS

value

No

item number

carbon footprint (A-C) embodied carbon

data source

item number

0424413

carbon footprint (A-C) embodied carbon

0.37kgCO2e

data source

TM65

item number

0424435

carbon footprint (A-C) embodied carbon

0.46kgCO2e

data source

TM65

item number

0424446

carbon footprint (A-C) embodied carbon

0.55kgCO2e

data source

TM65
