group: BSM-S
potable water
natural gas
heating
cooling
compressed air
vacuum
industry
no approvals available
code
size
dimensions
weight
packaging
gtin
code
size
M8-M10 x 12-14
dimensions
44x60x20 mm
weight
0.06 kg
packaging
carton (50 pce)
gtin
08719313012663
code
size
M8-M10 x 15-18
dimensions
48x64x20 mm
weight
0.06 kg
packaging
carton (10 pce)
gtin
08719313044541
code
size
M8-M10 x 19-22
dimensions
52x68x20 mm
weight
0.07 kg
packaging
carton (50 pce)
gtin
08719313012687
code
size
M8-M10 x 23-26
dimensions
56x72x20 mm
weight
0.07 kg
packaging
carton (50 pce)
gtin
08719313012694
code
size
M8-M10 x 27-30
dimensions
60x76x20 mm
weight
0.08 kg
packaging
carton (50 pce)
gtin
08719313012700
code
size
M8-M10 x 32-35
dimensions
65x81x20 mm
weight
0.08 kg
packaging
carton (50 pce)
gtin
08719313012717
code
size
M8-M10 x 36-39
dimensions
69x85x20 mm
weight
0.09 kg
packaging
carton (10 pce)
gtin
08719313035259
code
size
M8-M10 x 40-44
dimensions
74x90x20 mm
weight
0.09 kg
packaging
carton (50 pce)
gtin
08719313012731
code
size
M8-M10 x 48-52
dimensions
82x98x20 mm
weight
0.1 kg
packaging
carton (50 pce)
gtin
08719313012748
code
size
M8-M10 x 53-58
dimensions
88x104x20 mm
weight
0.11 kg
packaging
carton (50 pce)
gtin
08719313012755
code
size
M8-M10 x 58-61
dimensions
91x107x20 mm
weight
0.11 kg
packaging
carton (50 pce)
gtin
08719313012762
code
size
M8-M10 x 62-67
dimensions
97x113x20 mm
weight
0.14 kg
packaging
carton (10 pce)
gtin
08719313035266
code
size
M8-M10 x 75-80
dimensions
110x126x20 mm
weight
0.16 kg
packaging
carton (50 pce)
gtin
08719313012786
code
size
M8-M10 x 87-92
dimensions
122x138x20 mm
weight
0.18 kg
packaging
carton (50 pce)
gtin
08719313012793
code
size
M8-M10 x 108-116
dimensions
146x162x20 mm
weight
0.25 kg
packaging
carton (50 pce)
gtin
08719313012809
code
size
M8-M10 x 121-127
dimensions
157x173x20 mm
weight
0.27 kg
packaging
carton (5 pce)
gtin
08719313035273
code
size
DN1
z3
D1
item

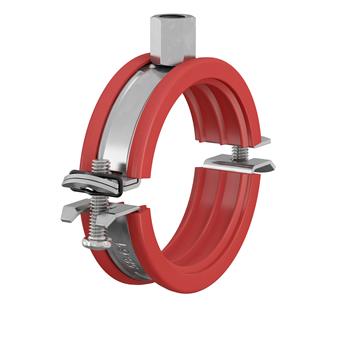

BSM-S clip
item number with gtin
BSM-S
manufacturer
Aalberts integrated piping systems B.V. (VSH)
weight
0.27 kg
dimensions
157x173x20 mm
materials
steel
finishing
galvanized (electrolytically zincplated)
min. medium temperature
-60 °C
max medium temperature
250 °C
product group
bevestiging (double screw)
ETIM class
EC010049 Two-part bracket roundHS code
73089098
brand
FastFix
series
clips - lined
type
BSM-S
label
value
label
etim-class
label
Material
value
Steel
label
Surface protection
value
Galvanic/electrolytic zinc plated
label
Inlay damping value
value
17dB(A)
label
Connection facility
value
Internal thread
label
Connection size, connection facility
value
M8/M10
label
Lock facility
value
Double screw
label
Suitable for number of pipes
value
1
label
Height
value
20mm
label
Height (imperial)
value
0.79"
label
FM quality mark
value
No
label
UL quality mark
value
No
label
ULC quality mark
value
No
label
LPCB quality mark
value
No
label
Suitable for steel tube
value
Yes
label
Suitable for stainless steel tube
value
Yes
label
Suitable for copper tube
value
Yes
label
Suitable for aluminium tube
value
Yes
label
Suitable for cast iron pipe
value
Yes
label
Suitable for plastic tube
value
Yes
label
Suitable for pipe coil
value
Yes
label
Medium temperature (continuous)
value
-60°C - 250°C
label
Medium temperature (continuous) (imperial)
value
-76°F - 482°F
label
VdS quality mark
value
No
label
KIWA certified
value
No
