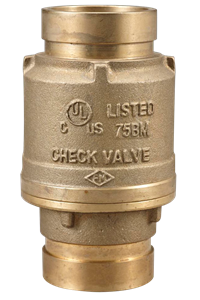

VSH Shurjoint brass swing check valve (2 x groove)

group: BH22C

VSH Shurjoint grooved pipe systems consist of a wide range of groove couplings, fittings and valves for heating, compressed air and industry. VSH Shurjoint is less labor intensive, safer, cleaner and delivers consistent connection quality.
  • VSH Shurjoint can be perfectly combined with other VSH systems such as VSH XPress, VSH SudoPress and VSH PowerPress
  • the 'Aalberts integrated piping systems' range covers a fully integrated system from ¼" to 104"
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

heating

heating

cooling

cooling

compressed air

compressed air

segments

commercial building

commercial building

industry

industry

approvals

no approvals available

item number

size

dimensions

weight

packaging

gtin

item number

1BH220020001

size

60.3 (DN50)

dimensions

83x83x145 mm

weight

1.63 kg

packaging

bag (1 pce)

gtin

04710574638375

item number

size

d1

DN1

l1

d2

DN2

l2

item number

1bh220020001

size

60.3 (DN50)

d1

60.3

DN1

DN50

l1

73

d2

60.3

DN2

DN50

l2

73

technical drawing for product

characteristics

color

black

materials

brass

finishing

varnished

shape

straight

connection type

groove (fitting)

sealing

EPDM

general

product group

valves (check valves)

ETIM class

EC011469 Check valve

HS code

84813091

brand

VSH

series

Shurjoint

type

BH22C

UNSPS

40141634

technical

max operating pressure liquid

17 bar

min. medium temperature

-34 °C

max medium temperature

110 °C

image for BH22C

image | png

BH22C

image for Diagram

diagram | png

Diagram

submittal sheet | pdf

Datasheet

installation- & maintenance document | pdf

VSH Shurjoint installation instructions

label

value

label

ETIM class

label

Surface protection

value

Coated

label

Nominal diameter

value

DN 50

label

Outer pipe diameter all connections

value

60.3mm

label

Outer pipe diameter all connections (imperial)

value

2.37"

label

Connections

value

Groove

label

Sealing

value

Ethylene-propylene diene monomer rubber (EPDM)

label

Backflow safeguard according to EN 1717

value

EB

label

Length of connection 1

value

73mm

label

Length of connection 1 (imperial)

value

2.87"

label

Length of connection 2

value

73mm

label

Length of connection 2 (imperial)

value

2.87"

label

Height

value

145mm

label

Height (imperial)

value

5.71"

label

Medium temperature (continuous)

value

-34°C - 110°C

label

Medium temperature (continuous) (imperial)

value

-29.2°F - 230°F

label

Max. operating pressure at 20 °C

value

17bar

label

Max. operating pressure at 20 °C (imperial)

value

246.56psi

label

FM quality mark

value

No

label

UL quality mark

value

No

label

ULC quality mark

value

No

label

LPCB quality mark

value

No

label

Suitable for central heating water

value

Yes

label

Certified according to SVGW for water

value

No

label

Certified according to SVGW for gas

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

KIWA certified

value

No
