Broen Ballofix handle

Product Image for Broen Ballofix handle
Product Image for Broen Ballofix handle

group: B3894

The B9098 Broen Ballofix mini ball valves are high quality, compact ball valves with high quality finishing. The design and materials used, guarantee smooth operation, even after several years of use. Broen Ballofix ball valves can be used without or with operating handles. The handles are available in various colours so that colour coding is possible. Due to the wide range, an optimal version is available for every application.
  • Broen Ballofix mini ball valves can be operated using a screwdriver or Ballofix handle
  • we recommend opening and closing Broen Ballofix ball valves twice a year & nbsp; to ensure optimal operation
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

cooling

cooling

show all
show less

segments

industry

industry

commercial building

commercial building

show all
show less

approvals

no approvals available

  • assortment
  • dimensions
  • specifications
  • downloads
  • ETIM
  • sustainability

code

size

dimensions

weight

packaging

gtin

code

6005120

size

DN6-DN15 black

dimensions

30x10x13 mm

weight

0.01 kg

packaging

carton (20 pce)

gtin

-

code

6005153

size

DN6-DN15 red

dimensions

30x10x10 mm

weight

0 kg

packaging

carton (20 pce)

gtin

08711985251388

code

6005164

size

DN6-DN15 blue

dimensions

30x10x13 mm

weight

0.01 kg

packaging

carton (20 pce)

gtin

08711985221695

code

6005142

size

DN6-DN15 chrome

dimensions

30x10x13 mm

weight

0 kg

packaging

carton (20 pce)

gtin

08711985251401

code

6005131

size

DN20-DN32 black

dimensions

40x12x12 mm

weight

0.01 kg

packaging

carton (20 pce)

gtin

-

code

6002788

size

3 mm DN6-DN15 old model

dimensions

30x10x14 mm

weight

0 kg

packaging

carton (20 pce)

gtin

05708537064520

code

size

M1

M2

E

Y

code

6005120

size

DN6-DN15 black

M1

7

M2

22

E

10

Y

13

code

6005153

size

DN6-DN15 red

M1

7

M2

22

E

10

Y

13

code

6005164

size

DN6-DN15 blue

M1

7

M2

22

E

10

Y

13

code

6005142

size

DN6-DN15 chrome

M1

7

M2

22

E

10

Y

13

code

6005131

size

DN20-DN32 black

M1

10

M2

31

E

15

Y

18

code

6002788

size

3 mm DN6-DN15 old model

M1

7

M2

22

E

10

Y

13

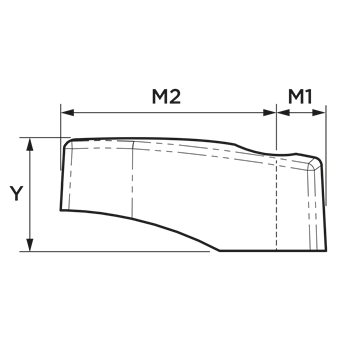

technical drawing for product

product info

item

Broen Ballofix handle

item number with gtin

B3894

manufacturer

BROEN

weight

0 kg

dimensions

30x10x14 mm

characteristics

color

black, chrome, red, blue

technical

min. medium temperature

-20 °C

max medium temperature

120 °C

general

product group

valves (accessories (valves))

ETIM class

EC011659 Accessories/spare parts for ball valve

brand

Broen

series

Ballofix

type

B9098

UNSPS

40141607

SCIP

e78c0723-c6e6-479c-bcc1-e395a5461292

image for Diagram

diagram | png

Diagram

save to my IPS
image for B9098

image | png

B9098

save to my IPS
image for B9096

image | png

B9096

save to my IPS
image for B9098-Black

image | png

B9098-Black

save to my IPS
image for B9098-Blue

image | png

B9098-Blue

save to my IPS
image for B9098-Chrome

image | png

B9098-Chrome

save to my IPS
image for B9098-Red

image | png

B9098-Red

save to my IPS

certifications | pdf

Reach declaration

save to my IPS

certifications | pdf

TM65 Embodied Carbon Declaration

save to my IPS

label

value

label

etim-class

value

EC011659 Accessories/spare parts for ball valve

label

Spare part

value

Yes

code

carbon footprint (A-C) embodied carbon

data source

code

6005120

carbon footprint (A-C) embodied carbon

0.03kgCO2e

data source

TM65

code

6005153

carbon footprint (A-C) embodied carbon

0.03kgCO2e

data source

TM65

code

6005164

carbon footprint (A-C) embodied carbon

0.03kgCO2e

data source

TM65

code

6005142

carbon footprint (A-C) embodied carbon

0.02kgCO2e

data source

TM65

code

6005131

carbon footprint (A-C) embodied carbon

0.04kgCO2e

data source

TM65

code

6002788

carbon footprint (A-C) embodied carbon

0.03kgCO2e

data source

TM65
