Broen Unikum ball valve (2 x female thread)

if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

cooling

cooling

segments

commercial building

commercial building

approvals

ETA

ETA

item number

size

dimensions

weight

packaging

gtin

item number

0212215

size

Rp3/8" (DN10)

dimensions

50x70x56 mm

weight

0.19 kg

packaging

bag (1 pce)

gtin

05708537784268

item number

0212216

size

Rp1/2" (DN15)

dimensions

62x70x59 mm

weight

0.26 kg

packaging

bag (1 pce)

gtin

05708537784305

item number

0212217

size

Rp3/4" (DN20)

dimensions

71x70x36 mm

weight

0.38 kg

packaging

bag (1 pce)

gtin

05708537784336

item number

0212218

size

Rp1" (DN25)

dimensions

83x70x39 mm

weight

0.63 kg

packaging

bag (1 pce)

gtin

05708537784374

item number

0212219

size

Rp1 1/4" (DN32)

dimensions

98x70x75 mm

weight

0.9 kg

packaging

bag (1 pce)

gtin

05708537784411

item number

0212220

size

Rp1 1/2" (DN40)

dimensions

109x120x106 mm

weight

1.46 kg

packaging

bag (1 pce)

gtin

05708537784435

item number

0212221

size

Rp2" (DN50)

dimensions

133x120x114 mm

weight

2.39 kg

packaging

bag (1 pce)

gtin

05708537784473

characteristics

color

brass

materials

brass (CW614N)

finishing

none

shape

straight (0º)

connection type

G - female thread gas cylindrical (BSPP)

sealing

EPDM

general

product group

valves (ball valves)

ETIM class

EC011343 Ball valve

HS code

84818081

brand

Broen

series

Unikum

type

B3860

UNSPS

40141607

SCIP

e78c0723-c6e6-479c-bcc1-e395a5461292

technical

max operating pressure liquid

10 bar

min. medium temperature

-20 °C

max medium temperature

120 °C

peak medium temperature

120 °C

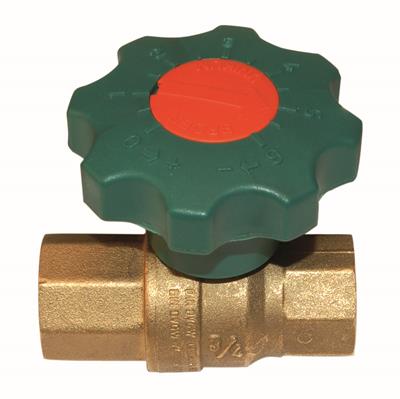

image for B9092

image | jpg

B9092

label

value

label

ETIM class

label

Housing material

value

Brass

label

Surface protection housing

value

None

label

Material ball

value

Brass

label

Material spindle

value

Brass

label

Material primary spindle seal

value

Ethylene-propylene diene monomer rubber (EPDM)

label

Connection 1

value

Internal thread cylindrical BSPP-G (ISO 228-1)

label

With coupling connection 1

value

No

label

Connection 2

value

Internal thread cylindrical BSPP-G (ISO 228-1)

label

With coupling connection 2

value

No

label

With drain valve

value

No

label

With drain possibility (connection)

value

No

label

With non-return valve

value

No

label

With filter

value

No

label

With thermometer

value

No

label

Model

value

Straight

label

With insulation shell

value

No

label

FM quality mark

value

No

label

UL quality mark

value

No

label

ULC quality mark

value

No

label

LPCB quality mark

value

No

label

Medium temperature (continuous)

value

-20°C - 120°C

label

Medium temperature (continuous) (imperial)

value

-4°F - 248°F

label

Medically clean

value

No

label

Grease-free

value

No

label

Operation

value

Lever handle

label

Housing construction

value

1-part

label

Full bore

value

Yes

label

Angle of the valve

value

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

KIWA certified

value

No

item number

carbon footprint (A1-A3) cradle-to-gate

carbon footprint (A-C) embodied carbon

carbon footprint (A-D) cradle-to-cradle

data source

item number

0212215

carbon footprint (A1-A3) cradle-to-gate

1.01kgCO2e

carbon footprint (A-C) embodied carbon

1.07kgCO2e

carbon footprint (A-D) cradle-to-cradle

0.94kgCO2e

data source

EPD

item number

0212216

carbon footprint (A1-A3) cradle-to-gate

1.42kgCO2e

carbon footprint (A-C) embodied carbon

1.49kgCO2e

carbon footprint (A-D) cradle-to-cradle

1.32kgCO2e

data source

EPD

item number

0212217

carbon footprint (A1-A3) cradle-to-gate

2.03kgCO2e

carbon footprint (A-C) embodied carbon

2.14kgCO2e

carbon footprint (A-D) cradle-to-cradle

1.88kgCO2e

data source

EPD

item number

0212218

carbon footprint (A1-A3) cradle-to-gate

3.45kgCO2e

carbon footprint (A-C) embodied carbon

3.64kgCO2e

carbon footprint (A-D) cradle-to-cradle

3.2kgCO2e

data source

EPD

item number

0212219

carbon footprint (A1-A3) cradle-to-gate

8.62kgCO2e

carbon footprint (A-C) embodied carbon

9.09kgCO2e

carbon footprint (A-D) cradle-to-cradle

8kgCO2e

data source

EPD

item number

0212220

carbon footprint (A1-A3) cradle-to-gate

7.72kgCO2e

carbon footprint (A-C) embodied carbon

8.13kgCO2e

carbon footprint (A-D) cradle-to-cradle

7.16kgCO2e

data source

EPD

item number

0212221

carbon footprint (A1-A3) cradle-to-gate

12.4kgCO2e

carbon footprint (A-C) embodied carbon

13.06kgCO2e

carbon footprint (A-D) cradle-to-cradle

11.5kgCO2e

data source

EPD
