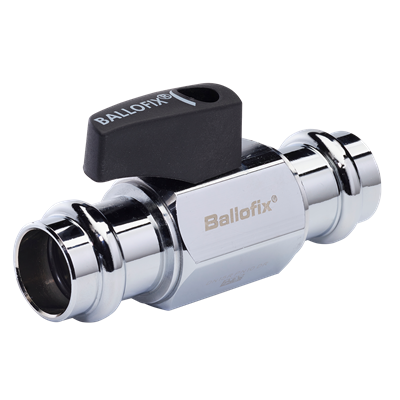

group: B3815
potable water
heating
cooling
compressed air
commercial building
industry
KIWA
SITAC
WRAS
item number
size
dimensions
weight
packaging
gtin
item number
size
15 (DN15R) Cr (black)
dimensions
83x28x38 mm
weight
0.16 kg
packaging
carton (5 pce)
gtin
05708537794434
item number
size
22 (DN15R) Cr (black)
dimensions
88x31x48 mm
weight
0.22 kg
packaging
carton (5 pce)
gtin
05708537786149
item number
size
d1
DN1
l1
z1
d2
DN2
l2
z2
slw0
H1
M1
M2
E
H
h1
h2
Y
V
U
a
item number
6002128size
15 (DN15R) Cr (black)
d1
15.0
DN1
DN12
l1
38
z1
14
d2
15.0
DN2
DN12
l2
45
z2
20
slw0
25
H1
26
M1
7
M2
22
E
10
H
25
h1
0
h2
0
Y
13
V
13
U
14
a
90
item number
6002141size
22 (DN15R) Cr (black)
d1
22.0
DN1
DN20
l1
41
z1
16
d2
22.0
DN2
DN20
l2
47
z2
23
slw0
28
H1
32
M1
10
M2
31
E
15
H
33
h1
h2
Y
33
V
14
U
a
90
color
black, chrome
materials
brass (CW625N (DZR))
finishing
chromed
shape
straight (0º)
connection type
press (M/V)
pressure rating (PN)
PN 10
sealing
EPDM
product group
valves (ball valves)
ETIM class
EC011343 Ball valve
HS code
84818081
brand
Broen
series
Ballofix
type
B3815
UNSPS
40141607
SCIP
e78c0723-c6e6-479c-bcc1-e395a5461292
max operating pressure liquid
10 bar
min. medium temperature
-20 °C
max medium temperature
120 °C
peak medium temperature
120 °C
Kvs-value
6
label
value
label
ETIM class
value
label
Housing material
value
Brass
label
Material quality
value
Brass CW625N (CuZn35Pb1.5AlAs)
label
Surface protection housing
value
Chromium-plated
label
Material ball seal
value
Ethylene-propylene diene monomer rubber (EPDM)
label
Material ball
value
Brass
label
Surface protection ball
value
Chromium-plated
label
Material spindle
value
Brass
label
Material primary spindle seal
value
Ethylene-propylene diene monomer rubber (EPDM)
label
Material secondary spindle seal
value
Ethylene-propylene diene monomer rubber (EPDM)
label
Connection 1
value
Press sleeve
label
With coupling connection 1
value
No
label
Contour code connection 1
value
M/V
label
Connection 2
value
Press sleeve
label
With coupling connection 2
value
No
label
Contour code connection 2
value
M/V
label
Sealing
value
Ethylene-propylene diene monomer rubber (EPDM)
label
Article compression class
value
PN 10
label
Flange compression class
value
PN 10
label
With drain valve
value
No
label
With drain possibility (connection)
value
No
label
With non-return valve
value
No
label
With filter
value
No
label
With thermometer
value
No
label
Model
value
Straight
label
With insulation shell
value
No
label
FM quality mark
value
No
label
UL quality mark
value
No
label
ULC quality mark
value
No
label
LPCB quality mark
value
No
label
Fire-safe
value
No
label
Max. pressure difference at 20 °C
value
10bar
label
Medium temperature (continuous)
value
-20°C - 120°C
label
Medium temperature (continuous) (imperial)
value
-4°F - 248°F
label
Medically clean
value
No
label
Grease-free
value
No
label
Operation
value
Lever handle
label
Housing construction
value
1-part
label
Full bore
value
No
label
Angle of the valve
value
0°
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
KIWA certified
value
Yes
item number
carbon footprint (A1-A3) cradle-to-gate
carbon footprint (A-C) embodied carbon
carbon footprint (A-D) cradle-to-cradle
data source
item number
6002128carbon footprint (A1-A3) cradle-to-gate
0.85kgCO2e
carbon footprint (A-C) embodied carbon
0.9kgCO2e
carbon footprint (A-D) cradle-to-cradle
0.88kgCO2e
data source
EPD
item number
6002141carbon footprint (A1-A3) cradle-to-gate
1.23kgCO2e
carbon footprint (A-C) embodied carbon
1.3kgCO2e
carbon footprint (A-D) cradle-to-cradle
1.28kgCO2e
data source
EPD
