VSH tap with aerator Aquarius DA-EB

group: B3540

The VSH B3540 is an aerator tap Aquarius DA-EB. This aerator has a maximum operation temperature of 60°C, which means it is not suitable for hot water. VSH aerator taps can be used in drinking water installations as universal connection taps for washing machines and dishwashers. The aerator taps with check valve are also suitable for filling central heating installations.

  • Applicable for demineralized water
  • Maintenance-free
  • Provided with all relevant approvals

read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

segments

commercial building

commercial building

approvals

KIWA

KIWA

item number

size

d1

DN1

l1

DN2

M

Y

item number

0500995

size

G1/2"xG3/4"

d1

21.3

DN1

1/2" (DN15)

l1

50

DN2

3/4" (DN20)

M

46

Y

27

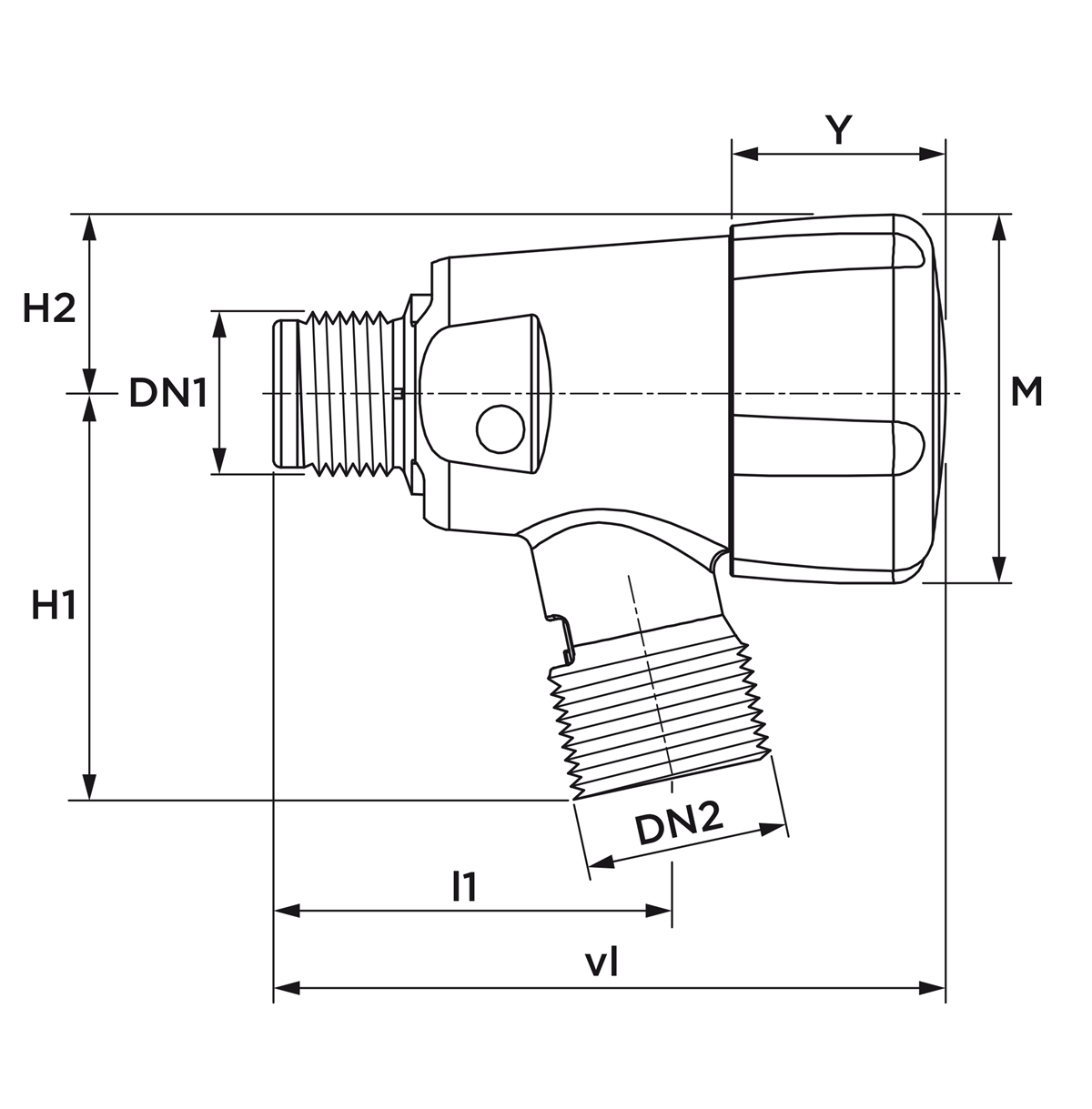

technical drawing for product

characteristics

color

grey

materials

plastic (POM)

finishing

none

shape

reducer, Perpendicular

connection type

G - male thread gas cylindrical (BSPP)

sealing

EPDM, NBR (Nitrile)

general

product group

taps (aerator taps)

ETIM class

EC011375 Water tap

HS code

84818079

brand

VSH

type

B3540

technical

max operating pressure liquid

10 bar

max medium temperature

60 °C

image for B3540

image | png

B3540

image for Diagram

diagram | png

Diagram

certifications | pdf

VSH Aquarius aerator valve KIWA

label

value

label

ETIM class

label

Model

value

Mechanical

label

Key operated

value

No

label

Type of electronic operating method

value

Other

label

Self-closing

value

No

label

Mounting method

value

Wall

label

With rosette

value

No

label

With spout

value

Yes

label

Connection size supply

value

1/2 inch

label

Spout model

value

Fixed

label

Tap nozzle

value

External thread

label

With aerator

value

Yes

label

Nominal diameter outlet

value

3/4 inch

label

Type of power supply

value

Other

label

Sound class according to EN ISO 3822

value

None

label

With transformer

value

No

label

Reserve accumulator

value

No

label

Degree of protection (IP)

value

Other

label

Flushing time adjustable

value

No

label

Programming

value

Other

label

With building management system connection

value

No
