VSH tap with aerator NEN DA

group: B3510

The VSH B3510 is an aerator tap NEN DA. VSH aerator taps can be used in drinking water installations as universal connection taps for washing machines and dishwashers. The aerator taps with check valve are also suitable for filling central heating installations.

  • Maintenance-free
  • Provided with all relevant approvals

read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

segments

commercial building

commercial building

approvals

KIWA

KIWA

item number

size

dimensions

weight

packaging

gtin

item number

0500412

size

G1/2"xG3/4"

dimensions

110x45x110 mm

weight

0.31 kg

packaging

bag (1 pce)

gtin

08711985026832

item number

0500709

size

G3/4"xG3/4"

dimensions

111x45x112 mm

weight

0.42 kg

packaging

bag (1 pce)

gtin

08711985026818

item number

size

d1

DN1

l1

z1

DN2

M

Y

V

item number

0500412

size

G1/2"xG3/4"

d1

21.3

DN1

1/2" (DN15)

l1

97

z1

41

DN2

3/4" (DN20)

M

45

Y

8

V

30

item number

0500709

size

G3/4"xG3/4"

d1

26.9

DN1

3/4" (DN20)

l1

99

z1

37

DN2

3/4" (DN20)

M

45

Y

8

V

30

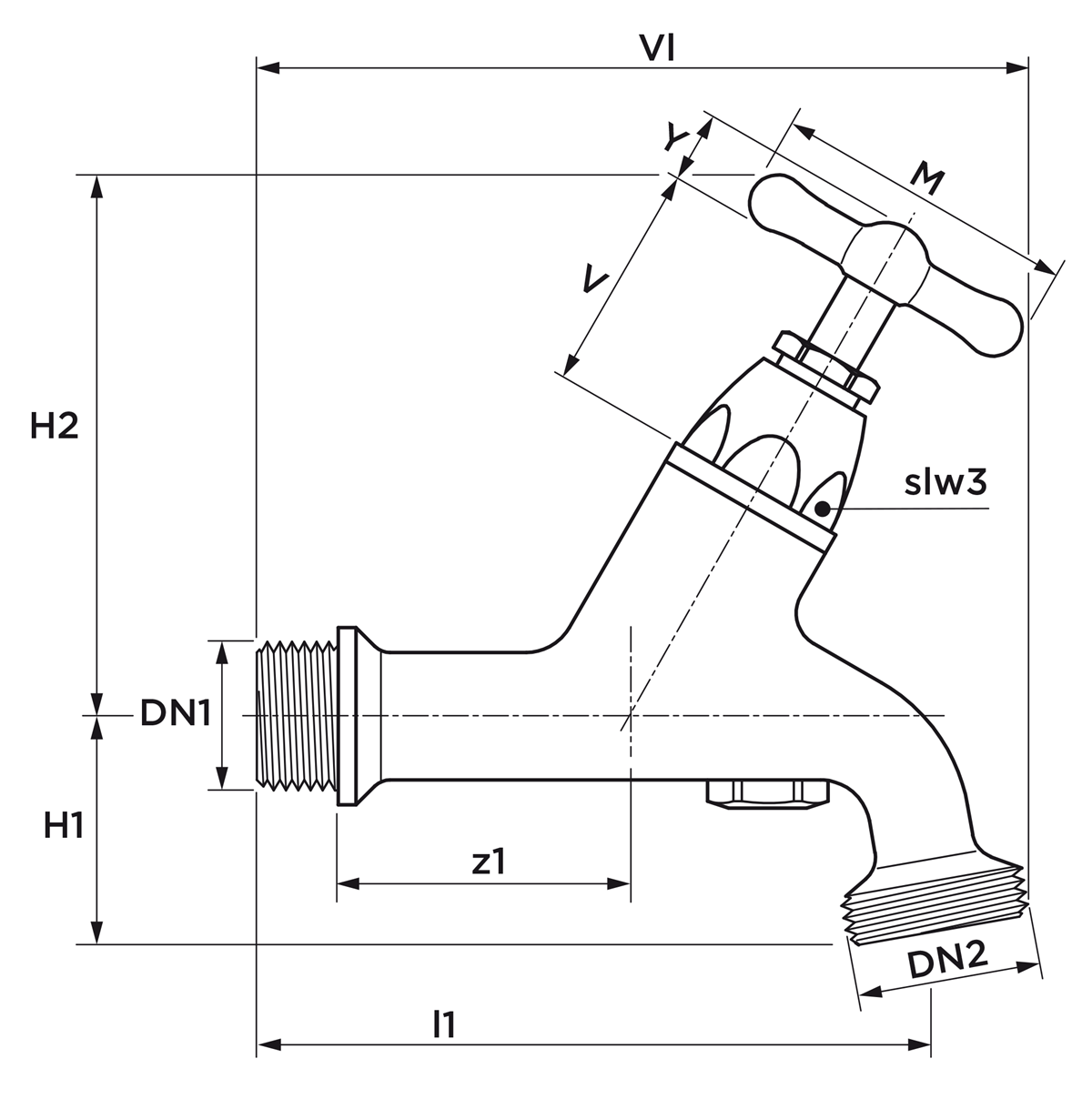

technical drawing for product

characteristics

color

chrome

materials

brass (CC757S)

finishing

chromed

shape

reducer, Perpendicular (60º)

connection type

G - male thread gas cylindrical (BSPP)

sealing

EPDM, NBR (Nitrile)

general

product group

taps (aerator taps)

ETIM class

EC011375 Water tap

HS code

84818079

brand

VSH

type

B3510

UNSPS

30181700

SCIP

eaaa45a4-d4e9-4d3e-8f71-546149c8cf4b

technical

max operating pressure liquid

10 bar

max medium temperature

65 °C

peak medium temperature

90 °C

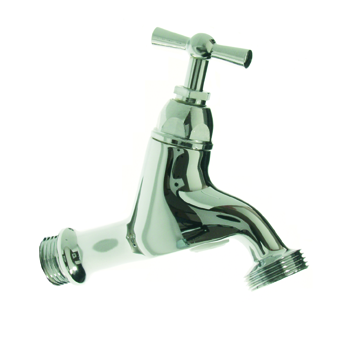

image for B3510

image | png

B3510

image for Diagram

diagram | png

Diagram

certifications | pdf

VSH aerator and tap valve KIWA

installation- & maintenance document | pdf

VSH tap and aerator valve installation manual

label

value

label

ETIM class

label

With handle

value

Yes

label

Key operated

value

No

label

Material tap

value

Brass

label

Surface protection

value

Chromium-plated

label

Mounting method

value

Wall

label

With spout

value

Yes

label

Spout model

value

Fixed

label

Tap nozzle

value

External thread

label

With aerator

value

Yes

label

Nominal diameter outlet

value

3/4 inch
