Pegler ProFlow thermo electric actuator on/off

Pegler ProFlow thermo electric actuator on/off

AT01

The type AE01 thermo electric actuator modulating 0-10V, provides hydronic balancing in variable flow systems in order to ensure the optimum flow is achieved at all load conditions, in the terminal units. The actuator controlling the two-way valve inside the Apollo ProFlow 1600 PICV is connected to a room thermostat or a BMS system. By opening or closing the two-way valve in reference to the room temperature, the required temperature is achieved.

  • compact, energy-efficient and durable
  • including visual position feedback
  • compatible with type 1600 Apollo ProFlow PICV
  • compatible with type 902 Ballorex Dynamic
  • connection: M30x1,5



applications

heating cooling

solutions

building installations industry
item number size weight dimensions packaging gtin
15281 24VAC 0-10VDC 0.14 kg 45x55x65 mm carton (1 pce) 05022050217974
15202 24VAC/DC - NC 0.14 kg 95x55x75 mm carton (1 pce) 05022050327925
15280 230VAC - NC 0.12 kg 52x50x60 mm carton (1 pce) 05022050217684
item number size d1 M M1 M2 E h1 Y
15281 24VAC 0-10VDC 40 48 18 30 44 5 57
15202 24VAC/DC - NC 40 48 18 30 44 5 57
15280 230VAC - NC 40 48 18 30 44 5 57

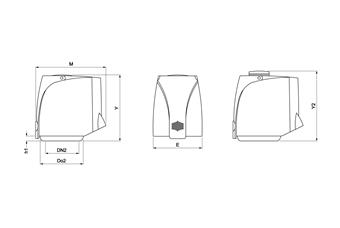

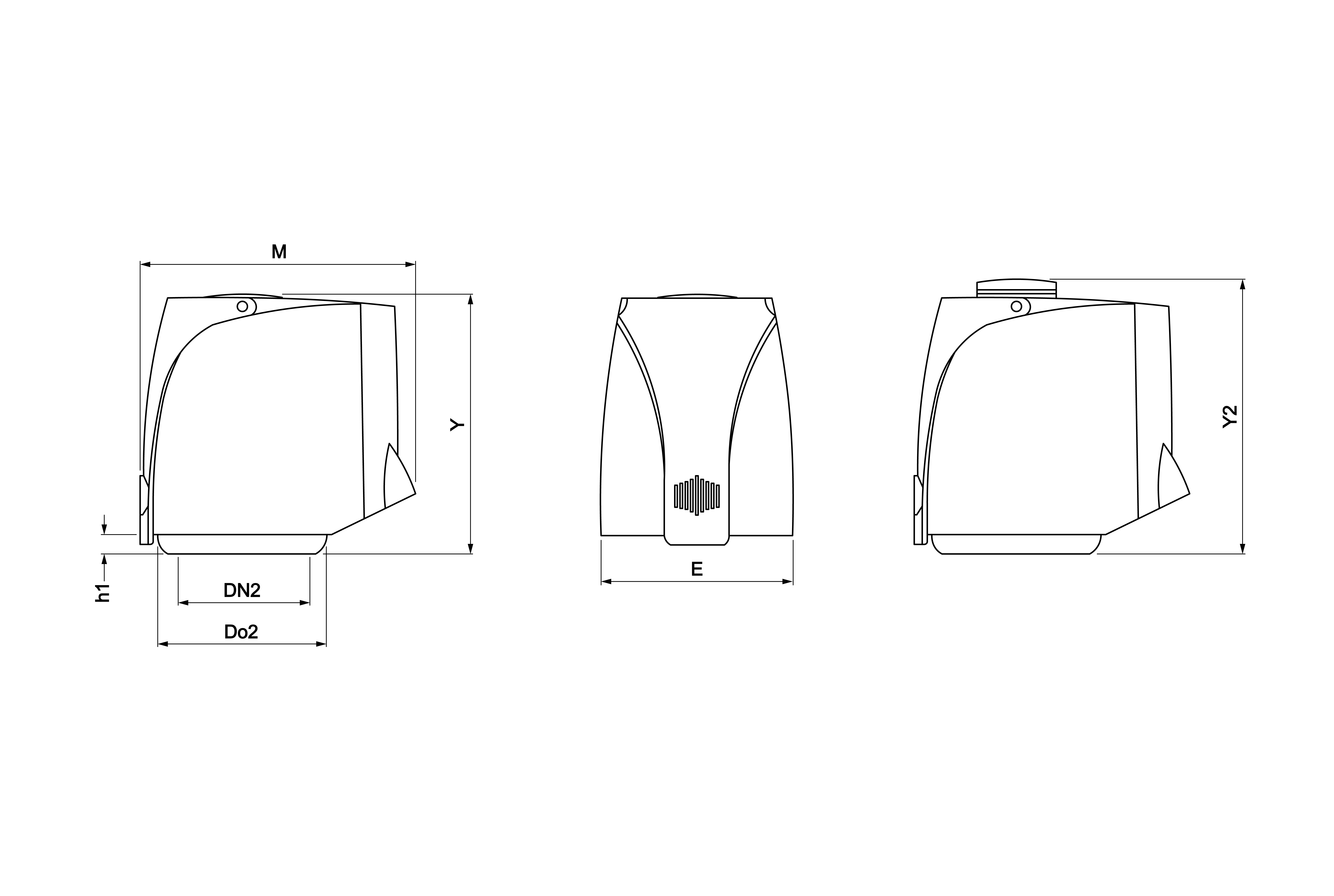

see above for the diagram related to these dimensions
color white
materials plastic
finishing none
manufacturer 5022050000002
shape round
product group valves (accessories (valves), dynamic balancing valve)
ETIM class EC011290 Electric servomotor
HS code 90329000
country of origin Germany
brand Pegler
series ProFlow Dynamic
type AT01
UNSPS 40141609
label value
ETIM class EC011290 Electric servomotor
Suitable for valve Yes
Energy consumption at rest 0W
Regulation type splitrange No
Transmission Hydraulic
Connection to stop valve M30 x 1.5
With top flange direct mount according to ISO 5211 No
Return at zero supply voltage Yes
Position reporting system None
Adjustable operating range No
Suitable for manual operation No
Stroke length 4mm
Degree of protection (IP) IP54
Housing material Plastic
