group: AP21400T
potable water
heating
cooling
compressed air
vacuum
commercial building
industry
ACS
Belgaqua
DVGW Wasser
GDV
KIWA
KIWA SE
SINTEF
VA (ETA)
WRAS
item number
size
dimensions
weight
packaging
gtin
item number
size
15xG3/4 (DN12)
dimensions
94x82x32
weight
0.23 kg
packaging
bag (1 pce)
gtin
05708537829594
item number
size
18xG3/4 (DN15)
dimensions
105x84x32
weight
0.27 kg
packaging
bag (1 pce)
gtin
05708537829624
item number
size
22xG3/4 (DN20)
dimensions
132x88x38
weight
0.28 kg
packaging
bag (1 pce)
gtin
05708537829655
item number
size
28xG1 1/4 (DN25)
dimensions
135x114x46
weight
0.65 kg
packaging
bag (1 pce)
gtin
05708537829686
item number
size
35xG1 1/2 (DN32)
dimensions
160x122x57
weight
0.97 kg
packaging
bag (1 pce)
gtin
05708537829716

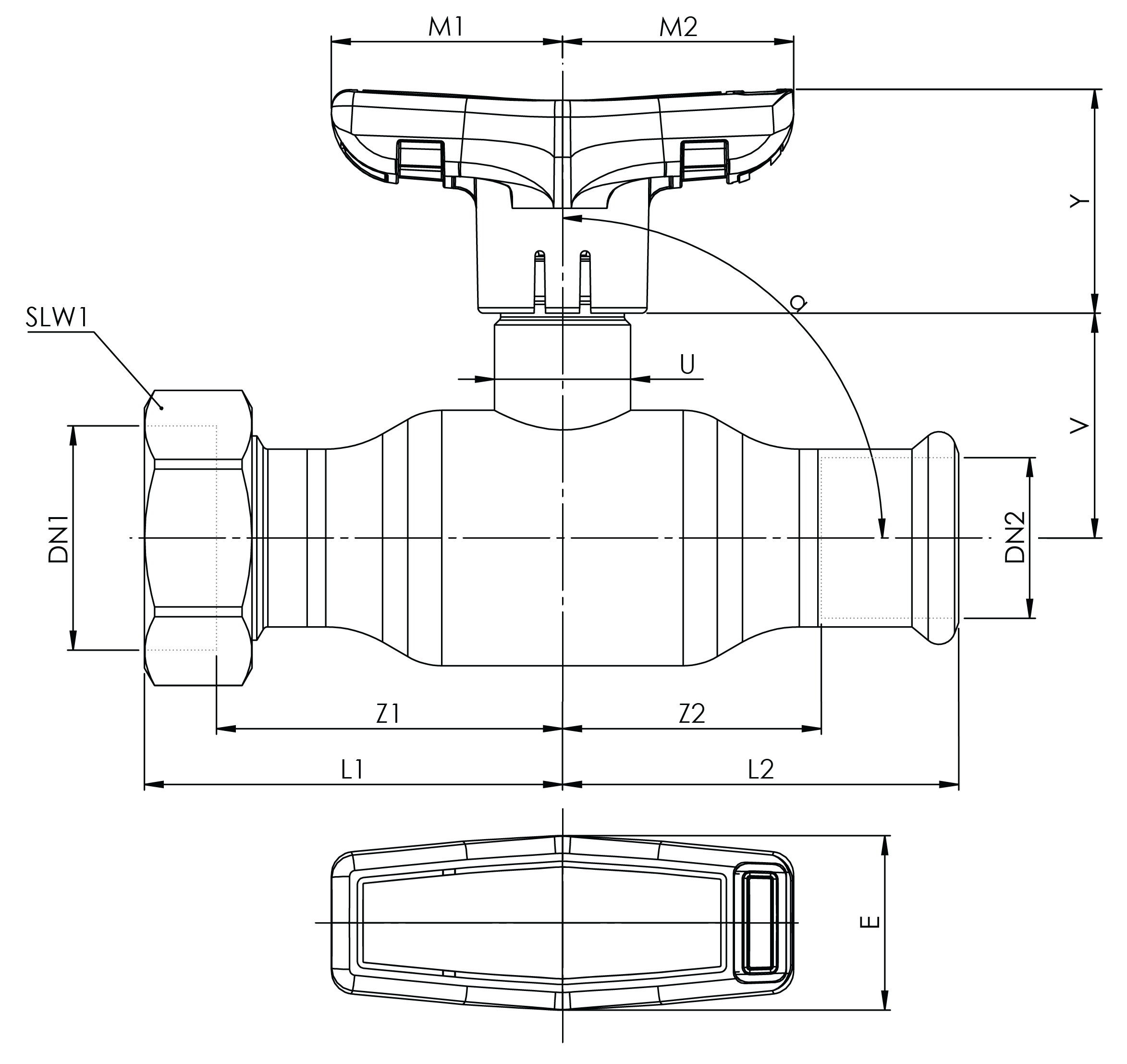

item number
size
d1
DN1
l1
z1
DN2
l2
z2
slw2
M1
M2
E
H
h1
h2
Y
V
U
item number
123461296size
15xG3/4 (DN12)
d1
15.0
DN1
DN12
l1
47
z1
28
DN2
3/4" (DN20)
l2
47
z2
38
slw2
32
M1
35
M2
35
E
25
H
64
h1
10
h2
0
Y
38
V
26
U
18
item number
123461297size
18xG3/4 (DN15)
d1
18.0
DN1
DN15
l1
52
z1
32
DN2
3/4" (DN20)
l2
53
z2
44
slw2
32
M1
35
M2
35
E
25
H
66
h1
10
h2
0
Y
38
V
28
U
18
item number
123461298size
22xG3/4 (DN20)
d1
22.0
DN1
DN20
l1
61
z1
41
DN2
3/4" (DN20)
l2
72
z2
62
slw2
32
M1
35
M2
35
E
25
H
68
h1
10
h2
0
Y
38
V
31
U
18
item number
123461299size
28xG1 1/4 (DN25)
d1
28.0
DN1
DN25
l1
68
z1
46
DN2
1 1/4" (DN32)
l2
67
z2
55
slw2
46
M1
45
M2
45
E
31
H
87
h1
10
h2
0
Y
50
V
37
U
24
item number
123461300size
35xG1 1/2 (DN32)
d1
35.0
DN1
DN32
l1
81
z1
56
DN2
1 1/2" (DN40)
l2
79
z2
67
slw2
52
M1
45
M2
45
E
31
H
93
h1
10
h2
0
Y
50
V
43
U
24
color
silver
materials
stainless steel (PA 6.6 (Nylon 6.6), EPDM, Stainless steel 316L (1.4404))
finishing
none
shape
straight (0º)
connection type
press (M), G - female thread gas cylindrical (BSPP)
pressure rating (PN)
PN 16
sealing
EPDM, PTFE
product group
valves (ball valves)
ETIM class
EC011343 Ball valve
HS code
84818081
brand
Apollo
series
FullFlow Stainless
type
AP21400T
UNSPS
40141607
max operating pressure liquid
16 bar
min. medium temperature
-35 °C
max medium temperature
135 °C
peak medium temperature
150 °C
label
value
label
ETIM class
value
label
Surface protection housing
value
None
label
Connection 1
value
Press sleeve
label
With coupling connection 1
value
No
label
Contour code connection 1
value
M
label
Connection 2
value
Internal thread cylindrical BSPP-G (ISO 228-1)
label
With coupling connection 2
value
Yes
label
Article compression class
value
PN 16
label
Flange compression class
value
PN 16
label
With drain valve
value
No
label
With drain possibility (connection)
value
No
label
With non-return valve
value
No
label
With filter
value
No
label
With thermometer
value
No
label
Model
value
Straight
label
With insulation shell
value
No
label
FM quality mark
value
No
label
UL quality mark
value
No
label
ULC quality mark
value
No
label
LPCB quality mark
value
No
label
Medium temperature (continuous)
value
-35°C - 135°C
label
Medium temperature (continuous) (imperial)
value
-31°F - 275°F
label
Medically clean
value
No
label
Grease-free
value
No
label
Operation
value
T-handle
label
Angle of the valve
value
0°
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
Yes
label
KIWA certified
value
Yes
