group: AP20101G
potable water
heating
cooling
compressed air
vacuum
industry
commercial building
ACS
KIWA
DVGW Wasser
GDV
KIWA SE
SINTEF
VA (ETA)
WRAS
Belgaqua
code
size
dimensions
weight
packaging
gtin
code
size
15 (DN10)
dimensions
94x120x60 mm
weight
0.26 kg
packaging
bag (1 pce)
gtin
05708537820317
code
size
18 (DN15)
dimensions
103x124x60 mm
weight
0.3 kg
packaging
bag (1 pce)
gtin
05708537820324
code
size
22 (DN20)
dimensions
121x130x60 mm
weight
0.3 kg
packaging
bag (1 pce)
gtin
05708537820331
code
size
28 (DN25)
dimensions
135x148x82 mm
weight
0.69 kg
packaging
bag (1 pce)
gtin
05708537820348
code
size
35 (DN32)
dimensions
161x159x82 mm
weight
0.99 kg
packaging
bag (1 pce)
gtin
05708537820355
code
size
42 (DN40)
dimensions
198x190x111 mm
weight
1.62 kg
packaging
bag (1 pce)
gtin
05708537820362
code
size
54 (DN50)
dimensions
226x208x111 mm
weight
2.55 kg
packaging
bag (1 pce)
gtin
05708537820379

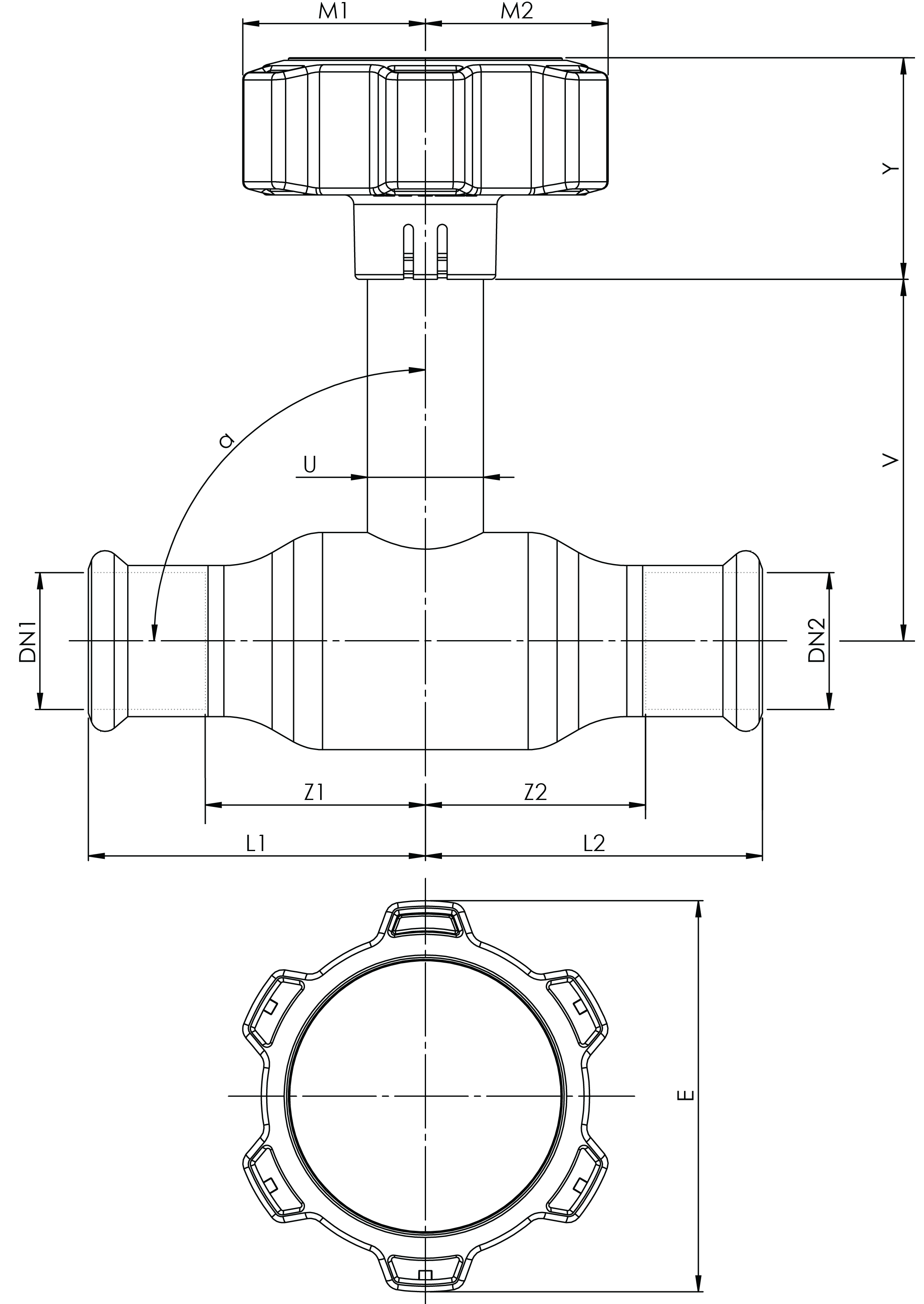

code
size
d1
DN1
l1
z1
d2
DN2
l2
z2
M
H
h1
h2
Y
V
U
code
size
15 (DN10)
d1
15.0
DN1
DN10
l1
47
z1
27
d2
15.0
DN2
DN10
l2
47
z2
27
M
60
H
106
h1
10
h2
0
Y
38
V
68
U
18
code
size
18 (DN15)
d1
18.0
DN1
DN15
l1
52
z1
32
d2
18.0
DN2
DN15
l2
52
z2
32
M
60
H
108
h1
10
h2
0
Y
38
V
70
U
18
code
size
22 (DN20)
d1
22.0
DN1
DN20
l1
61
z1
40
d2
22.0
DN2
DN20
l2
61
z2
40
M
60
H
111
h1
10
h2
0
Y
38
V
73
U
18
code
size
28 (DN25)
d1
28.0
DN1
DN25
l1
68
z1
45
d2
28.0
DN2
DN25
l2
68
z2
45
M
82
H
125
h1
10
h2
0
Y
50
V
74
U
24
code
size
35 (DN32)
d1
35.0
DN1
DN32
l1
81
z1
55
d2
35.0
DN2
DN32
l2
81
z2
55
M
82
H
131
h1
10
h2
0
Y
50
V
80
U
24
code
size
42 (DN40)
d1
42.0
DN1
DN40
l1
99
z1
69
d2
42.0
DN2
DN40
l2
99
z2
69
M
111
H
156
h1
10
h2
0
Y
59
V
98
U
28
code
size
54 (DN50)
d1
54.0
DN1
DN50
l1
113
z1
79
d2
54.0
DN2
DN50
l2
113
z2
79
M
111
H
165
h1
10
h2
0
Y
59
V
106
U
28
item

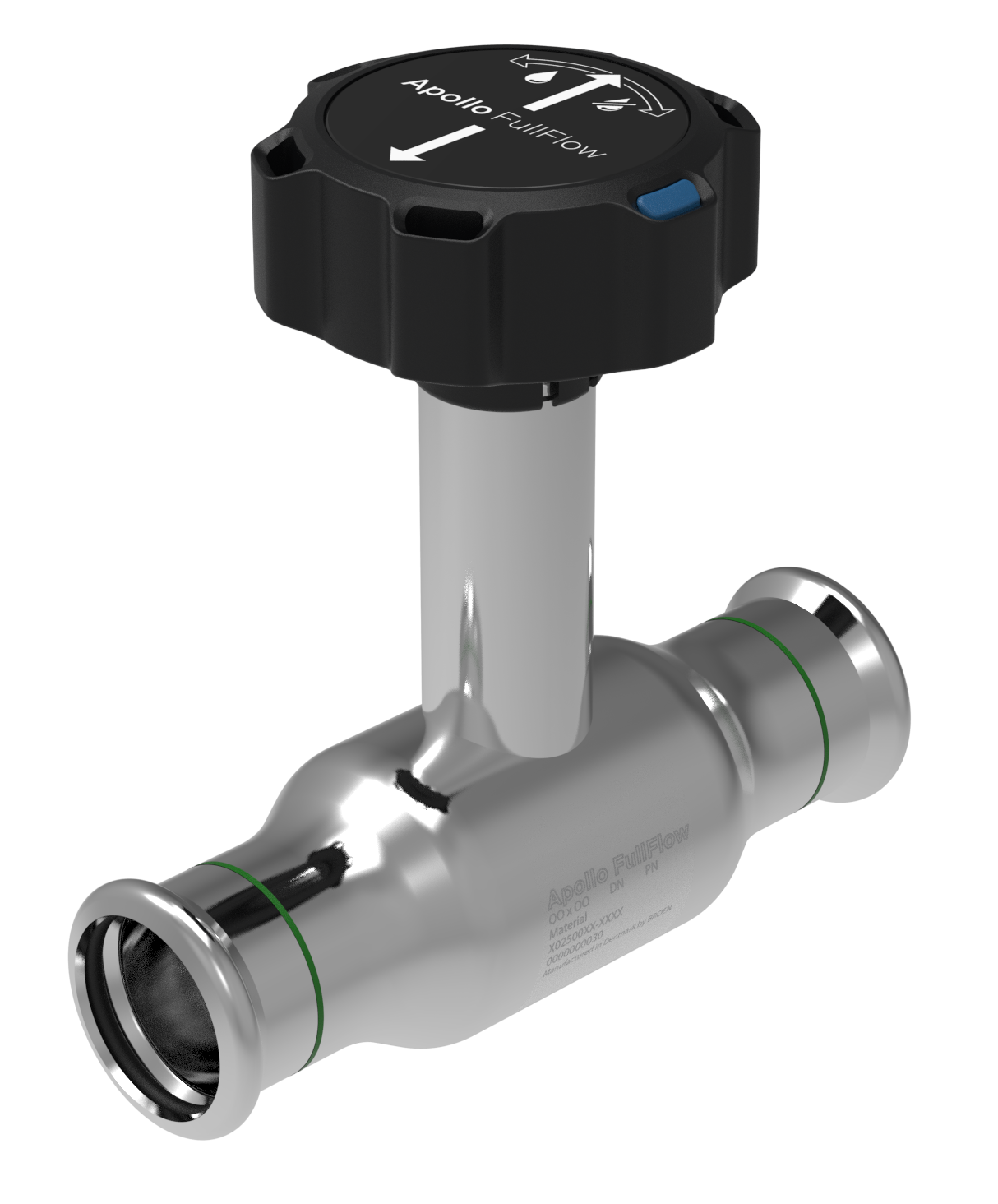

Apollo FullFlow Stainless ball valve with extended stem gear handle (2 x press)
item number with gtin
AP20101G
manufacturer
BROEN
weight
2.55 kg
dimensions
226x208x111 mm
color
silver
materials
stainless steel (Stainless steel 316L (1.4404), EPDM, PA 6.6 (Nylon 6.6))
finishing
none
shape
straight
connection type
press (M)
pressure rating (PN)
PN 16
sealing
EPDM, PTFE
max operating pressure liquid
16 bar
min. medium temperature
-35 °C
max medium temperature
135 °C
peak medium temperature
150 °C
product group
valves (ball valves)
ETIM class
EC011343 Ball valveHS code
84818081
brand
Apollo
series
FullFlow Stainless
type
AP20101G
UNSPS
40141607
label
value
label
etim-class
value
EC011343 Ball valvelabel
Surface protection housing
value
None
label
Connection 1
value
Press sleeve
label
With coupling connection 1
value
No
label
Contour code connection 1
value
M
label
Connection 2
value
Press sleeve
label
With coupling connection 2
value
No
label
Contour code connection 2
value
M
label
Article compression class
value
PN 16
label
Flange compression class
value
PN 16
label
With drain valve
value
No
label
With drain possibility (connection)
value
No
label
With non-return valve
value
No
label
With filter
value
No
label
With thermometer
value
No
label
Model
value
Straight
label
With insulation shell
value
No
label
FM quality mark
value
No
label
UL quality mark
value
No
label
ULC quality mark
value
No
label
LPCB quality mark
value
No
label
Medium temperature (continuous)
value
-35°C - 135°C
label
Medium temperature (continuous) (imperial)
value
-31°F - 275°F
label
Medically clean
value
No
label
Grease-free
value
No
label
Operation
value
Hand wheel
label
Angle of the valve
value
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
Yes
label
KIWA certified
value
Yes
