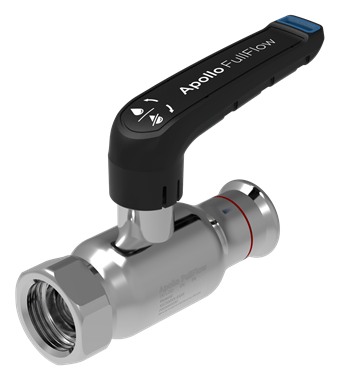

group: AP11000L
heating
cooling
compressed air
vacuum
residential
commercial building
industry
no approvals available
item number
size
dimensions
weight
packaging
gtin
item number
size
15xG1/2 (DN12)
dimensions
121x79x30 mm
weight
0.2 kg
packaging
bag (1 pce)
gtin
05708537596632
item number
size
18xG3/4 (DN15)
dimensions
126x84x32 mm
weight
0.26 kg
packaging
bag (1 pce)
gtin
05708537596694
item number
size
22xG3/4 (DN20)
dimensions
127x89x40 mm
weight
0.31 kg
packaging
bag (1 pce)
gtin
05708537598162
item number
size
28xG1 (DN25)
dimensions
156x110x41 mm
weight
0.62 kg
packaging
bag (1 pce)
gtin
05708537596793
item number
size
35xG1 1/4 (DN32)
dimensions
170x122x57 mm
weight
0.98 kg
packaging
bag (1 pce)
gtin
05708537596854
item number
size
42xG1 1/2 (DN40)
dimensions
198x140x68 mm
weight
1.53 kg
packaging
bag (1 pce)
gtin
05708537596915
item number
size
54xG2 (DN50)
dimensions
216x157x85 mm
weight
2.63 kg
packaging
bag (1 pce)
gtin
05708537596977
item number
size
d1
DN1
l1
z1
d2
DN2
l2
z2
slw2
M1
M2
E
H
h1
h2
Y
V
U
a
item number
1010001010size
15xG1/2 (DN12)
d1
15.0
DN1
DN12
l1
49
z1
28
d2
21.0
DN2
1/2" (DN15)
l2
46
z2
35
slw2
27
M1
12
M2
75
E
25
H
64
h1
10
h2
0
Y
38
V
26
U
18
a
90
item number
1015001010size
18xG3/4 (DN15)
d1
18.0
DN1
DN15
l1
54
z1
35
d2
26.4
DN2
3/4" (DN20)
l2
51
z2
40
slw2
36
M1
12
M2
75
E
25
H
66
h1
10
h2
0
Y
38
V
28
U
18
a
90
item number
1020001000size
22xG3/4 (DN20)
d1
22.0
DN1
DN20
l1
60
z1
38
d2
26.4
DN2
3/4" (DN20)
l2
52
z2
36
slw2
36
M1
12
M2
75
E
25
H
68
h1
10
h2
0
Y
38
V
31
U
18
a
90
item number
1025001000size
28xG1 (DN25)
d1
28.0
DN1
DN25
l1
70
z1
46
d2
33.3
DN2
1" (DN25)
l2
56
z2
37
slw2
41
M1
16
M2
100
E
31
H
87
h1
10
h2
0
Y
50
V
37
U
24
a
90
item number
1032001000size
35xG1 1/4 (DN32)
d1
35.0
DN1
DN32
l1
83
z1
57
d2
41.9
DN2
1 1/4" (DN32)
l2
70
z2
49
slw2
50
M1
16
M2
100
E
31
H
93
h1
10
h2
0
Y
50
V
43
U
24
a
90
item number
1040001000size
42xG1 1/2 (DN40)
d1
42.0
DN1
DN40
l1
101
z1
70
d2
47.8
DN2
1 1/2" (DN40)
l2
78
z2
57
slw2
56
M1
18
M2
119
E
36
H
106
h1
10
h2
0
Y
59
V
47
U
28
a
90
item number
1050001000size
54xG2 (DN50)
d1
54.0
DN1
DN50
l1
115
z1
79
d2
59.6
DN2
2" (DN50)
l2
96
z2
69
slw2
69
M1
18
M2
119
E
36
H
114
h1
10
h2
0
Y
59
V
55
U
28
a
90
color
silver
materials
steel (PA 6.6 (Nylon 6.6), St 37.8 (1.0345))
finishing
galvanised
shape
straight (0º)
connection type
press (M), G - female thread gas cylindrical (BSPP)
pressure rating (PN)
PN 16
sealing
EPDM, PTFE
product group
valves (ball valves)
ETIM class
EC011343 Ball valve
HS code
84818081
brand
Apollo
series
FullFlow Carbon
type
AP11000L
UNSPS
40141607
SCIP
be21985c-fa58-44d4-9bca-ffad91faeb7c
max operating pressure liquid
16 bar
min. medium temperature
-35 °C
max medium temperature
135 °C
peak medium temperature
150 °C
Kvs-value
label
value
label
ETIM class
value
label
Housing material
value
Steel
label
Material quality
value
St 37.8 (1.0345)
label
Material ball seal
value
Polytetrafluoroethylene (PTFE)
label
Material ball
value
Brass
label
Material spindle
value
Stainless steel
label
Material primary spindle seal
value
Ethylene-propylene diene monomer rubber (EPDM)
label
Material secondary spindle seal
value
Polytetrafluoroethylene (PTFE)
label
Connection 1
value
Press sleeve
label
With coupling connection 1
value
No
label
Contour code connection 1
value
M
label
Connection 2
value
Internal thread cylindrical BSPP-G (ISO 228-1)
label
With coupling connection 2
value
No
label
Article compression class
value
PN 16
label
Flange compression class
value
PN 16
label
With drain valve
value
No
label
With drain possibility (connection)
value
No
label
With non-return valve
value
No
label
With filter
value
No
label
With thermometer
value
No
label
Model
value
Straight
label
With insulation shell
value
No
label
FM quality mark
value
No
label
UL quality mark
value
No
label
ULC quality mark
value
No
label
LPCB quality mark
value
No
label
Medium temperature (continuous)
value
-35°C - 135°C
label
Medium temperature (continuous) (imperial)
value
-31°F - 275°F
label
Medically clean
value
No
label
Grease-free
value
No
label
Operation
value
Lever handle
label
Housing construction
value
1-part
label
Full bore
value
Yes
label
Angle of the valve
value
0°
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
KIWA certified
value
No
item number
carbon footprint (A1-A3) cradle-to-gate
carbon footprint (A-C) embodied carbon
carbon footprint (A-D) cradle-to-cradle
data source
item number
1010001010carbon footprint (A1-A3) cradle-to-gate
2.4kgCO2e
carbon footprint (A-C) embodied carbon
2.4kgCO2e
carbon footprint (A-D) cradle-to-cradle
2.41kgCO2e
data source
EPD
item number
1015001010carbon footprint (A1-A3) cradle-to-gate
2.17kgCO2e
carbon footprint (A-C) embodied carbon
2.17kgCO2e
carbon footprint (A-D) cradle-to-cradle
2.18kgCO2e
data source
EPD
item number
1020001000carbon footprint (A1-A3) cradle-to-gate
4.39kgCO2e
carbon footprint (A-C) embodied carbon
4.39kgCO2e
carbon footprint (A-D) cradle-to-cradle
4.41kgCO2e
data source
EPD
item number
1025001000carbon footprint (A1-A3) cradle-to-gate
5.72kgCO2e
carbon footprint (A-C) embodied carbon
5.72kgCO2e
carbon footprint (A-D) cradle-to-cradle
5.74kgCO2e
data source
EPD
item number
1032001000carbon footprint (A1-A3) cradle-to-gate
8.42kgCO2e
carbon footprint (A-C) embodied carbon
8.42kgCO2e
carbon footprint (A-D) cradle-to-cradle
8.65kgCO2e
data source
EPD
item number
1040001000carbon footprint (A1-A3) cradle-to-gate
11.1kgCO2e
carbon footprint (A-C) embodied carbon
11.1kgCO2e
carbon footprint (A-D) cradle-to-cradle
11.4kgCO2e
data source
EPD
item number
1050001000carbon footprint (A1-A3) cradle-to-gate
17.61kgCO2e
carbon footprint (A-C) embodied carbon
17.61kgCO2e
carbon footprint (A-D) cradle-to-cradle
18.09kgCO2e
data source
EPD
