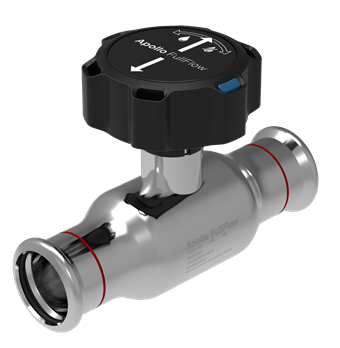

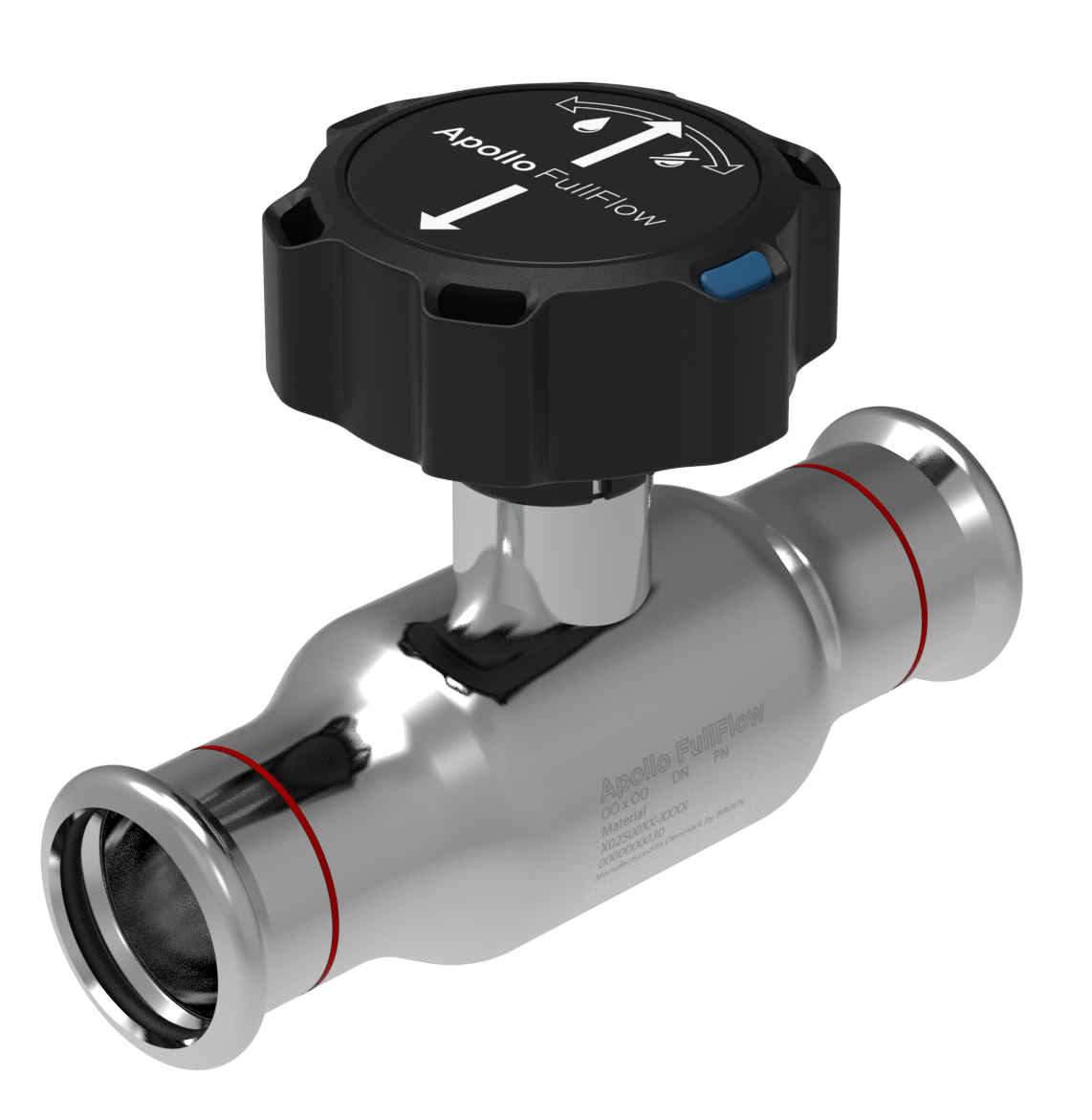

Product Image for Apollo FullFlow Carbon ball valve gear-handle (2 x press)

group: AP10100G

The Apollo FullFlow AP10100G is a FullFlow Carbon steel ball valve with 2 VSH XPress ends. The Apollo FullFlow valve is a uniquely designed ball valve with a full bore. By using the Apollo FullFlow ball valve you are always ensured that the material of your Carbon steel piping installation is a direct match with the VSH XPress fittings.

compact FullFlow design, produced in one piece minimizing the risk of leaks
interchangeable application identifier to distinguish hot and cold application
VSH XPress connection technology
Leak Before Pressed-function
unique laser marked valve identification

read more

read less

if the download did not start automatically, click here

PDF generation failed, please try again later

heating

cooling

compressed air

vacuum

show all

show less

residential

commercial building

industry

show all

show less

no approvals available

item number

size

dimensions

weight

packaging

gtin

item number

size

15 (DN12)

dimensions

98x77x60

weight

0.17 kg

packaging

bag (1 pce)

gtin

05708537820171

item number

size

18 (DN15)

dimensions

108x81x60

weight

0.22 kg

packaging

bag (1 pce)

gtin

05708537820188

item number

size

22 (DN20)

dimensions

120x88x60

weight

0.22 kg

packaging

bag (1 pce)

gtin

05708537820195

item number

size

28 (DN25)

dimensions

140x110x82

weight

0.56 kg

packaging

bag (1 pce)

gtin

05708537820201

item number

size

35 (DN32)

dimensions

165x122x82

weight

0.86 kg

packaging

bag (1 pce)

gtin

05708537820218

item number

size

42 (DN40)

dimensions

202x140x111

weight

1.4 kg

packaging

bag (1 pce)

gtin

05708537820225

item number

size

54 (DN50)

dimensions

240x157x111

weight

2.33 kg

packaging

bag (1 pce)

gtin

05708537820232

item number

size

d1

DN1

l1

z1

d2

DN2

l2

z2

M

H

h1

h2

Y

V

U

item number

size

15 (DN12)

d1

15.0

DN1

DN12

l1

49

z1

28

d2

15.0

DN2

DN12

l2

49

z2

28

M

60

H

64

h1

10

h2

0

Y

38

V

26

U

18

item number

size

18 (DN15)

d1

18.0

DN1

DN15

l1

54

z1

35

d2

18.0

DN2

DN15

l2

54

z2

35

M

60

H

66

h1

10

h2

0

Y

38

V

28

U

18

item number

size

22 (DN20)

d1

22.0

DN1

DN20

l1

60

z1

38

d2

22.0

DN2

DN20

l2

60

z2

38

M

60

H

68

h1

10

h2

0

Y

38

V

31

U

18

item number

size

28 (DN25)

d1

28.0

DN1

DN25

l1

70

z1

46

d2

28.0

DN2

DN25

l2

70

z2

46

M

82

H

87

h1

10

h2

0

Y

50

V

37

U

24

item number

size

35 (DN32)

d1

35.0

DN1

DN32

l1

83

z1

57

d2

35.0

DN2

DN32

l2

83

z2

57

M

82

H

93

h1

10

h2

0

Y

50

V

43

U

24

item number

size

42 (DN40)

d1

42.0

DN1

DN40

l1

101

z1

70

d2

42.0

DN2

DN40

l2

101

z2

70

M

111

H

106

h1

10

h2

0

Y

59

V

47

U

28

item number

size

54 (DN50)

d1

54.0

DN1

DN50

l1

120

z1

84

d2

54.0

DN2

DN50

l2

120

z2

84

M

111

H

114

h1

10

h2

0

Y

59

V

55

U

28

characteristics

color

silver

materials

steel (PA 6.6 (Nylon 6.6), St 37.8 (1.0345))

finishing

galvanised

shape

straight (0º)

connection type

press (M)

pressure rating (PN)

PN 16

sealing

EPDM, PTFE

general

product group

valves (ball valves)

ETIM class

EC011343 Ball valve

HS code

84818081

brand

Apollo

series

FullFlow Carbon

type

AP10100G

UNSPS

40141607

technical

max operating pressure liquid

16 bar

min. medium temperature

-35 °C

max medium temperature

135 °C

peak medium temperature

150 °C

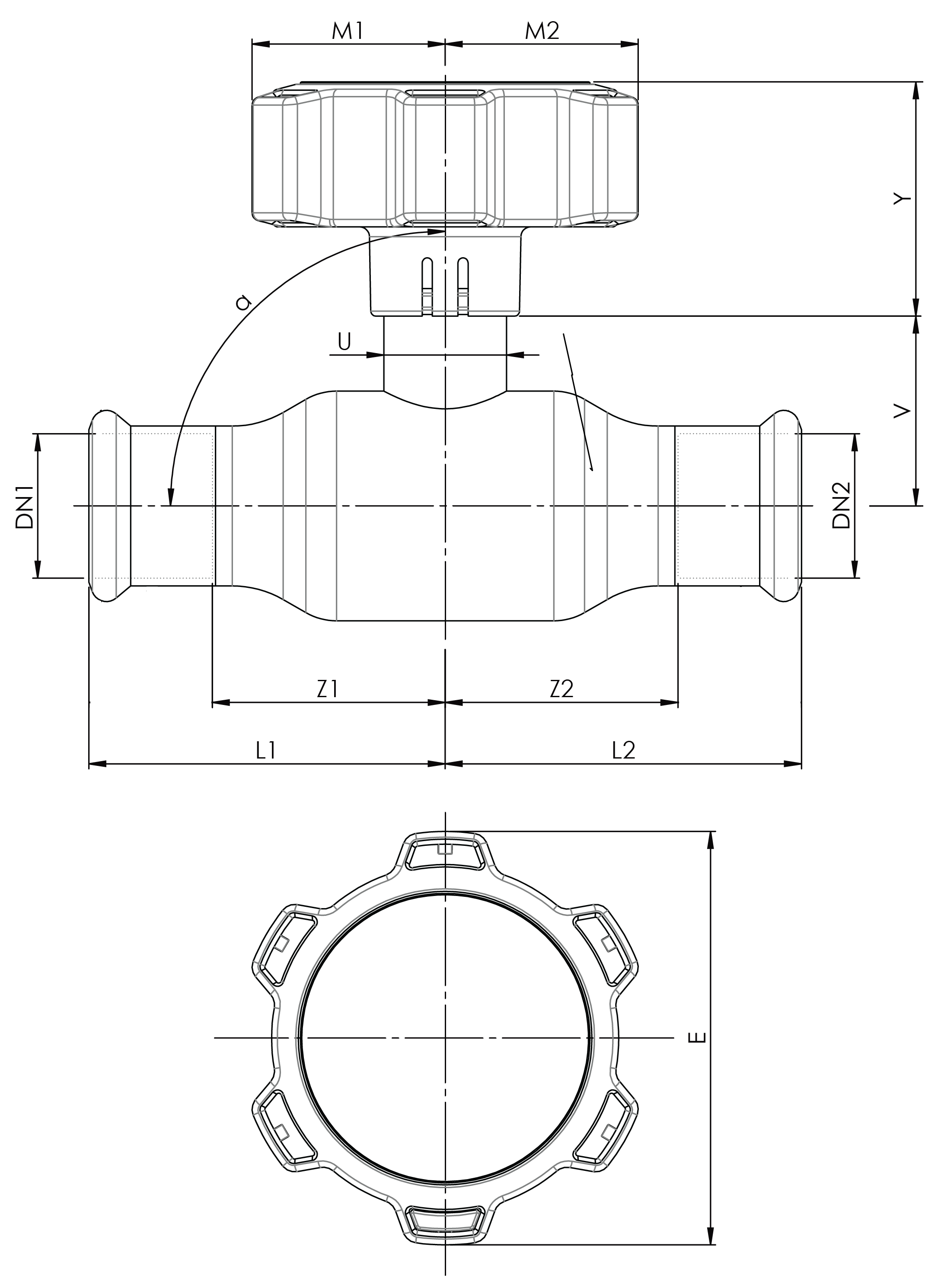

image for AP10100G

image | png

AP10100G

image for AP10100G_d.png

diagram | png


installation- & maintenance document | pdf

VSH XPress installation instructions

label

value

label

ETIM class

value

EC011343 Ball valve

label

Connection 1

value

Press sleeve

label

With coupling connection 1

value

No

label

Contour code connection 1

value

M

label

Connection 2

value

Press sleeve

label

With coupling connection 2

value

No

label

Contour code connection 2

value

M

label

Article compression class

value

PN 16

label

Flange compression class

value

PN 16

label

With drain valve

value

No

label

With drain possibility (connection)

value

No

label

With non-return valve

value

No

label

With filter

value

No

label

With thermometer

value

No

label

Model

value

Straight

label

With insulation shell

value

No

label

FM quality mark

value

No

label

UL quality mark

value

No

label

ULC quality mark

value

No

label

LPCB quality mark

value

No

label

Medium temperature (continuous)

value

-35°C - 135°C

label

Medium temperature (continuous) (imperial)

value

-31°F - 275°F

label

Medically clean

value

No

label

Grease-free

value

No

label

Operation

value

Hand wheel

label

Angle of the valve

value

0°

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

KIWA certified

value

No
