VSH gas ball valve 90° (2 x male thread)

group: A1111

The VSH gas connection valve angled A1111 is suitable for connecting gas appliances. With the connection tap you can easily make a connection from the gas hose to the wall plate. Operation is done with a rotary push button. The valve has Gastec Qa approval.
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

natural gas

natural gas

segments

commercial building

commercial building

industry

industry

shipbuilding

shipbuilding

approvals

GASTEC

GASTEC

item number

size

d1

DN1

l1

z1

DN2

l2

z2

M

angle

item number

0600226

size

R1/2"x(M24x1,5)

d1

21.3

DN1

1/2" (DN15)

l1

46

z1

29

DN2

DN12

l2

29

z2

18

M

29

angle

90

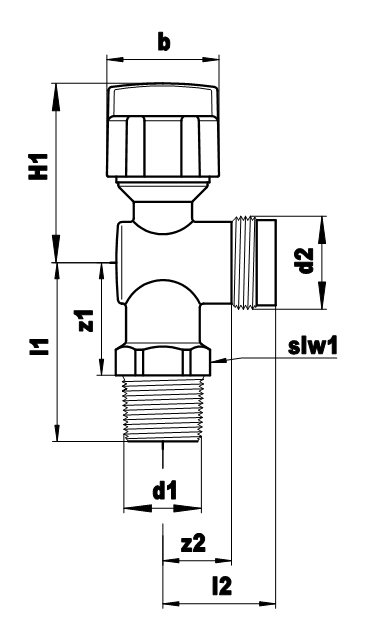

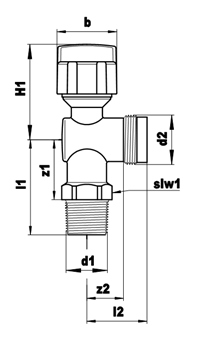

technical drawing for product

characteristics

color

chrome

materials

brass (CW617N)

finishing

chromed

manufacturer

Aalberts integrated piping systems B.V. (VSH)

shape

Perpendicular (90º)

connection type

R - male thread gas conical (BSPT), M - Male thread metric

general

product group

valves (angle valves, gas valves)

ETIM class

EC011015 Gas valve

HS code

84818081

brand

VSH

type

A1111

SCIP

4164f411-1503-4f1c-9573-17d1ce0b4799

label

value

label

ETIM class

label

Housing material

value

Brass

label

Housing material quality

value

CuZn40Pb2 (CW617N)

label

Surface protection housing

value

Chromium-plated

label

Nominal diameter connection 1

value

1/2 inch (15)

label

Outer pipe diameter connection 1

value

21.3mm

label

Outer pipe diameter connection 1 (imperial)

value

0.84"

label

Connection 1

value

External thread conical BSPT-R (ISO 7-1 / EN 10226-1)

label

With coupling connection 1

value

No

label

Nominal diameter connection 2

value

DN 12

label

Connection 2

value

External thread metric

label

With coupling connection 2

value

No

label

Approved according to EN 331

value

No

label

Operation

value

Turn button

label

Length of connection 1

value

46mm

label

Length of connection 1 (imperial)

value

1.81"

label

Working length connection 1

value

29mm

label

Working length connection 1 (imperial)

value

1.14"

label

Length of connection 2

value

29mm

label

Length of connection 2 (imperial)

value

1.14"

label

Working length connection 2

value

18mm

label

Working length connection 2 (imperial)

value

0.71"

label

Length of handle/diameter of hand wheel

value

29mm

label

Length of handle/diameter of hand wheel (imperial)

value

1.14"

label

DVGW quality mark for gas

value

No

label

Gastec QA mark

value

Yes
