SEPP Safe built-in check valve DB, form A2

SEPP Safe built-in check valve DB, form A2

8224

applications

potable water

solutions

building installations industry
item number size weight dimensions packaging gtin
0022688 R1/2" (DN15) 0.64 kg 90x50x190 mm carton (1 pce) 04018422142228
item number size DN1 l2 z2
0022688 R1/2" (DN15) 1/2" (DN15) 95 82

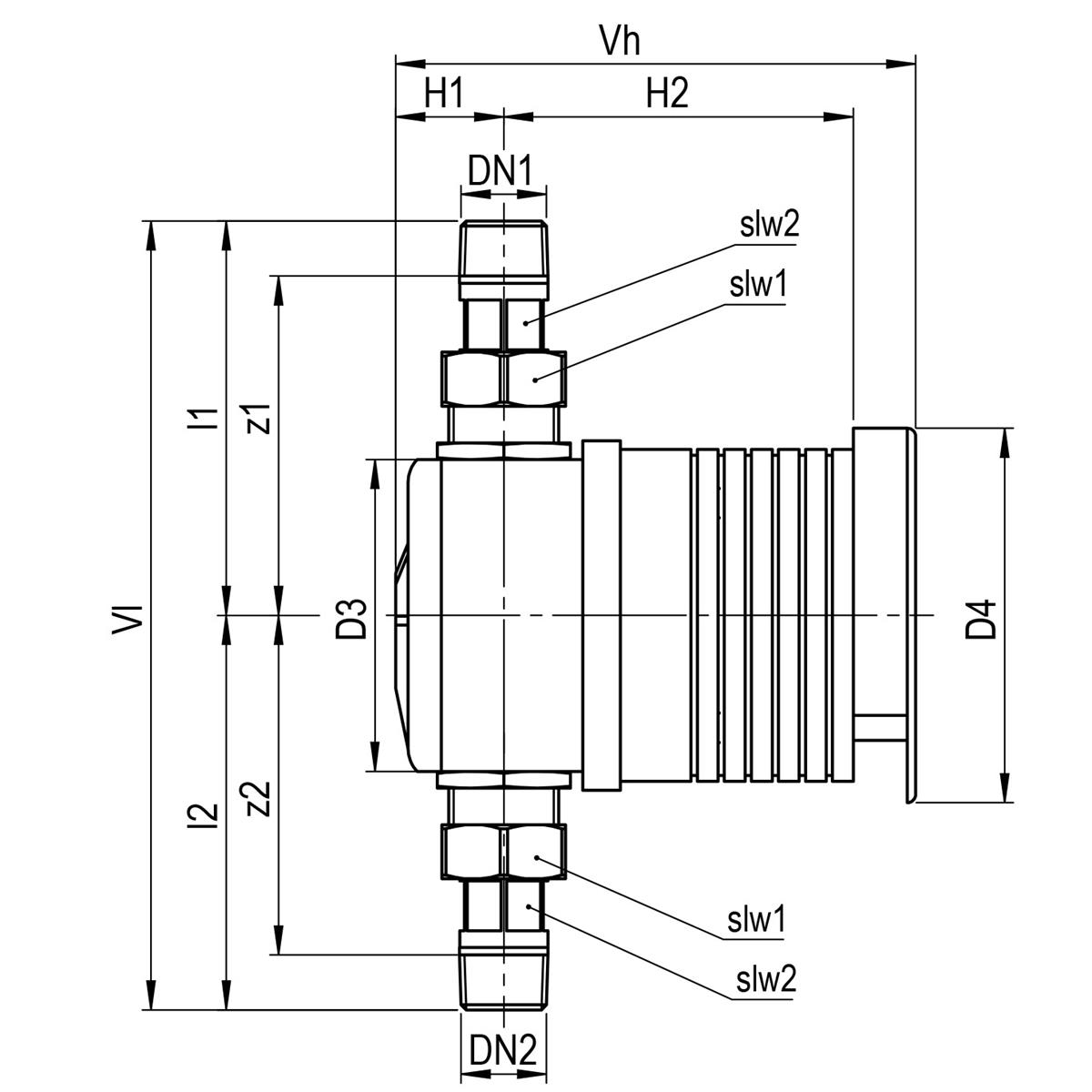

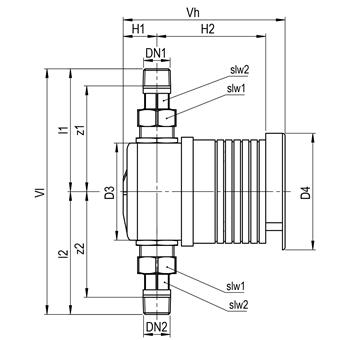

see above for the diagram related to these dimensions
color white, black
materials brass
manufacturer Seppelfricke
connection type R - male thread gas conical (BSPT)
pressure rating (PN) PN 10
product group safety valves (safety valve)
ETIM class EC010131 Aerator (pressureless system)
HS code 84818019
brand Seppelfricke
series SEPP Safe
type 8224
label value
ETIM class EC010131 Aerator (pressureless system)
Nominal diameter 1/2 inch (15)
Connection 1 External thread conical BSPT-R (ISO 7-1 / EN 10226-1)
Max. operating pressure at 20 °C 10bar
Max. operating pressure at 20 °C (imperial) 145.04psi
Height 190mm

accessories

item number description
0025252 Seppelfricke SEPP Safe inlay for check valve model 8224 (DN15)
0022453 Seppelfricke SEPP Safe replacement-cover D90 (DN15) Cr
0070178 Seppelfricke SEPP Safe flush-unit for 8224 (DN15)
