SEPP Safe aerator with flush automatic form E, single

if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

segments

commercial building

commercial building

industry

industry

approvals

no approvals available

item number

size

DN1

l1

z1

item number

0540660

size

G3/4" (DN15)

DN1

1/2" (DN15)

l1

114

z1

73

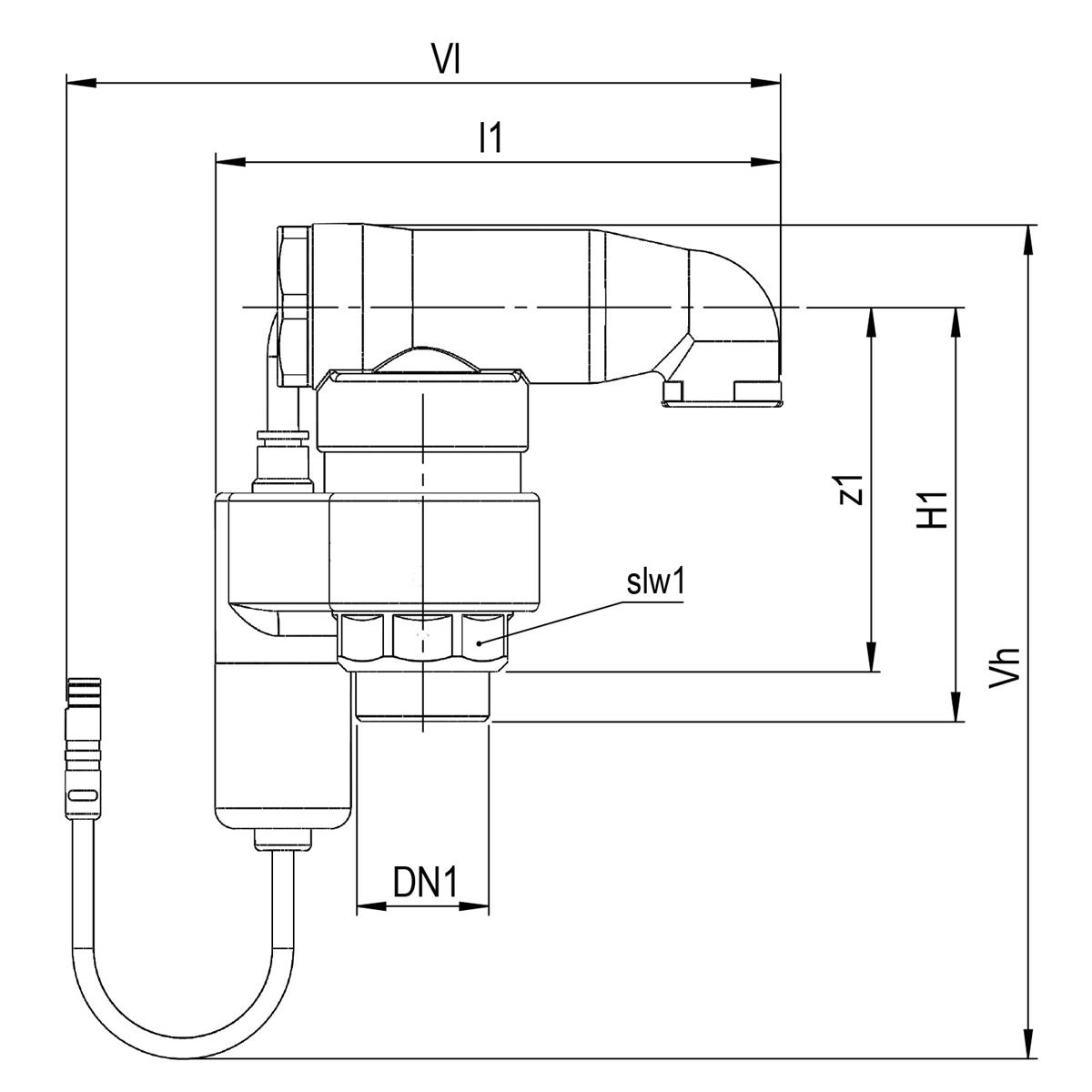

technical drawing for product

characteristics

color

chrome

materials

brass

finishing

chromed

connection type

G - male thread gas cylindrical (BSPP)

pressure rating (PN)

PN 10

sealing

EPDM

general

product group

safety valves (safety valves, aerators)

ETIM class

EC010131 Aerator (pressureless system)

HS code

84818019

brand

Seppelfricke

series

SEPP Safe

type

8155.50

technical

max operating pressure liquid

10 bar

max medium temperature

80 °C

image for 8155.50

image | jpg

8155.50

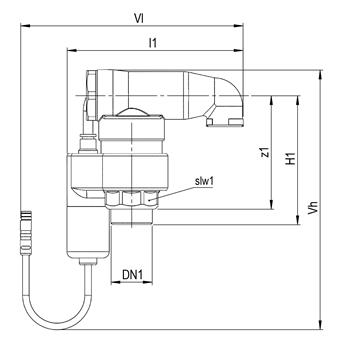

image for Diagram

diagram | jpg

Diagram

installation- & maintenance document | pdf

Installation instructuions 8155.50

label

value

label

Nominal diameter

value

1/2 inch (15)

label

Connection 1

value

External thread cylindrical BSPP-G (ISO 228-1)

label

Max. operating pressure at 20 °C

value

10bar

label

Max. operating pressure at 20 °C (imperial)

value

145.04psi

label

Max. medium temperature (continuous)

value

80°C

label

Max. medium temperature (continuous) (imperial)

value

176°F

label

Surface protection

value

Chromium-plated

label

Length of connection 1

value

114mm

label

Length of connection 1 (imperial)

value

4.49"

label

Working length connection 1

value

73mm

label

Working length connection 1 (imperial)

value

2.87"

label

Height

value

167mm
