SEPP Safe built-in aerator with flush automatic form E, single

SEPP Safe built-in aerator with flush automatic form E, single

8151.50

applications

potable water

solutions

building installations industry
item number size weight dimensions packaging gtin
0541229 G1/2" x G1" (DN15) 1.41 kg 185x80x185 mm carton (1 pce) 04018422357547
item number size DN1 l1 l2
0541229 G1/2" x G1" (DN15) 1/2" (DN15) 63 60

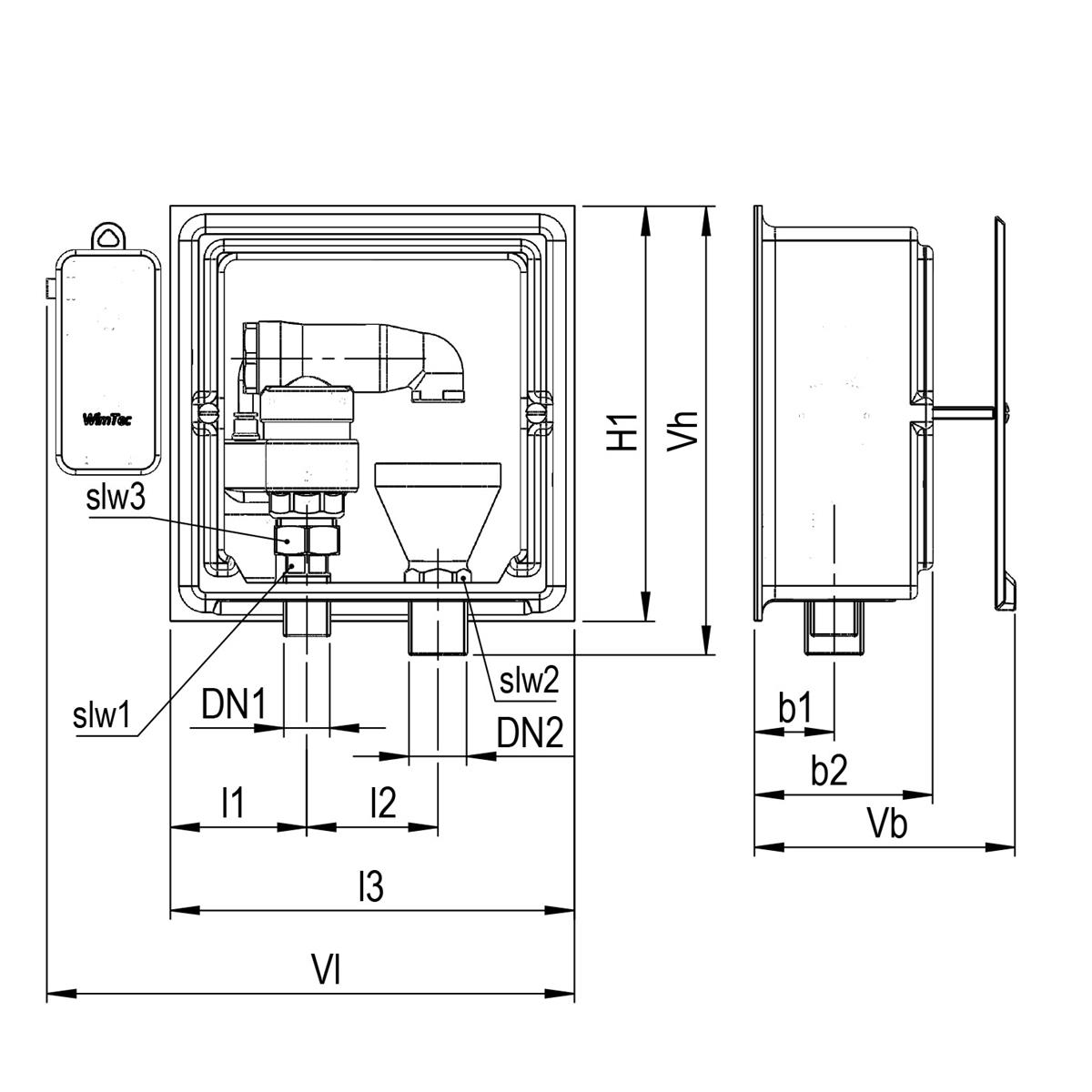

see above for the diagram related to these dimensions
color chrome
materials brass
finishing chromed
manufacturer Seppelfricke
connection type G - male thread gas cylindrical (BSPP)
pressure rating (PN) PN 10
sealing EPDM
product group safety valves (safety valve, aerators)
ETIM class EC010131 Aerator (pressureless system)
HS code 84818019
brand Seppelfricke
series SEPP Safe
type 8151.50
label value
ETIM class EC010131 Aerator (pressureless system)
Nominal diameter 1/2 inch (15)
Connection 1 External thread cylindrical BSPP-G (ISO 228-1)
Max. operating pressure at 20 °C 10bar
Max. operating pressure at 20 °C (imperial) 145.04psi
Max. medium temperature (continuous) 80°C
Max. medium temperature (continuous) (imperial) 176°F
Surface protection Chromium-plated
Length of connection 1 63mm
Length of connection 1 (imperial) 2.48"
Height 185mm

accessories

item number description
0549965 Seppelfricke SEPP Safe Extension cable (300mm)
0550223 Seppelfricke SEPP Safe flush valve ending MF G3/4"x1/2" (DN15)
0556536 Seppelfricke SEPP Safe Cartridge valve (DN5)
0556537 Seppelfricke SEPP Safe Flush controll Plus sparepart for Aerator with flushingsystem
0005982 Seppelfricke SEPP Safe replacement-cover 180x180x3
0005948 Seppelfricke SEPP Safe replacement-outlet funnel M G3/4" (DN20)
