SEPP Safe wall elbow union with safety combination HD

group: 8083

read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

segments

commercial building

commercial building

industry

industry

approvals

DVGW Wasser

DVGW Wasser

item number

size

DN1

l1

z1

z2

item number

0005953

size

G1/2" (DN15)

DN1

DN15

l1

47

z1

35

z2

36

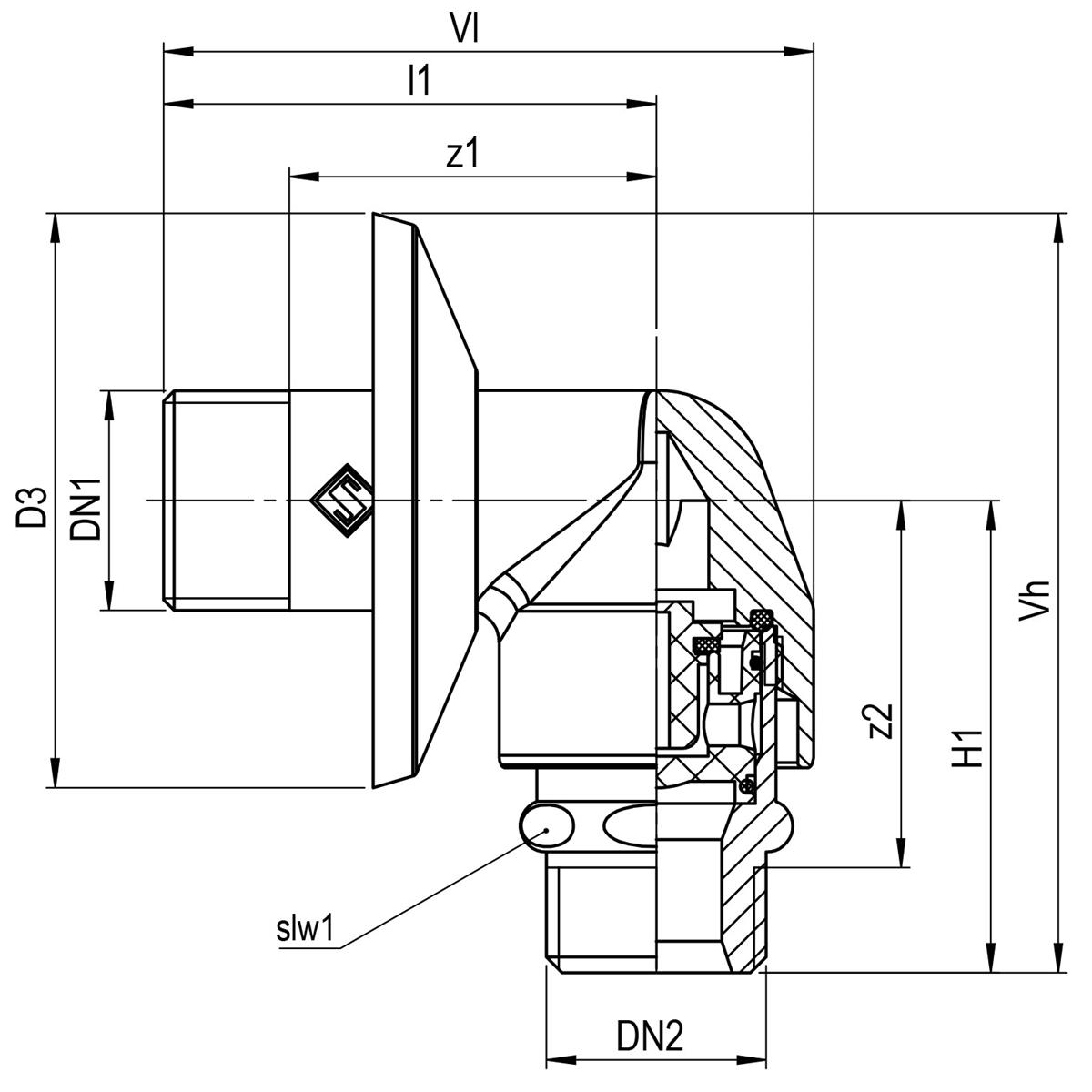

technical drawing for product

characteristics

color

chrome

materials

brass

finishing

chromed

manufacturer

Seppelfricke

connection type

G - male thread gas cylindrical (BSPP)

pressure rating (PN)

PN 10

sealing

EPDM

general

product group

safety valves (safety valves)

ETIM class

EC010131 Aerator (pressureless system)

HS code

84818019

brand

Seppelfricke

series

SEPP Safe

type

8083

label

value

label

Nominal diameter

value

DN 15

label

Connection 1

value

External thread cylindrical BSPP-G (ISO 228-1)

label

Max. operating pressure at 20 °C

value

10bar

label

Max. operating pressure at 20 °C (imperial)

value

145.04psi

label

Max. medium temperature (continuous)

value

90°C

label

Max. medium temperature (continuous) (imperial)

value

194°F

label

Surface protection

value

Chromium-plated

label

Length of connection 1

value

47mm

label

Length of connection 1 (imperial)

value

1.85"

label

Working length connection 1

value

35mm

label

Working length connection 1 (imperial)

value

1.38"

label

Height

value

63mm
