SEPP Safe safety combination HD

if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

segments

commercial building

commercial building

industry

industry

approvals

DVGW Wasser

DVGW Wasser

item number

size

dimensions

weight

packaging

gtin

item number

0005961

size

G1/2" (DN15)

dimensions

65x30x30 mm

weight

0.21 kg

packaging

carton (1 pce)

gtin

04018422038910

item number

0005952

size

G3/4" x G3/4" (DN20)

dimensions

33x33x72 mm

weight

0.28 kg

packaging

carton (1 pce)

gtin

04018422021028

item number

size

DN1

l1

z1

DN2

l2

z2

item number

0005961

size

G1/2" (DN15)

DN1

1/2" (DN15)

l1

23

z1

12

DN2

1/2" (DN15)

l2

50

z2

42

item number

0005952

size

G3/4" x G3/4" (DN20)

DN1

3/4" (DN20)

l1

22

z1

12

DN2

l2

43

z2

36

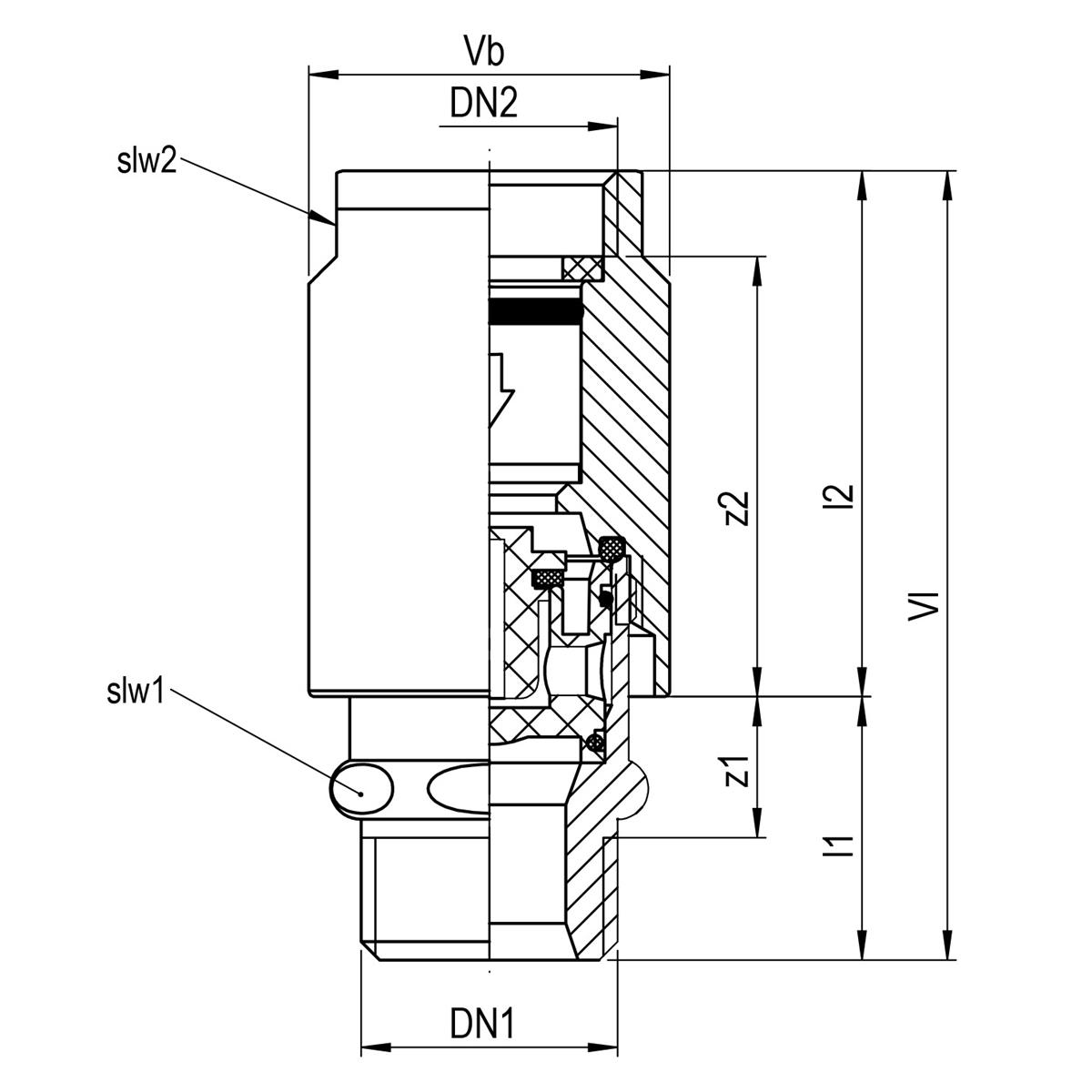

technical drawing for product

characteristics

color

chrome

materials

brass (CW617N)

finishing

chromed

pressure rating (PN)

PN 10

sealing

EPDM

general

product group

safety valves (safety valves)

ETIM class

EC010131 Aerator (pressureless system)

HS code

84818019

brand

Seppelfricke

series

SEPP Safe

type

8082

technical

max operating pressure liquid

10 bar

max medium temperature

90 °C

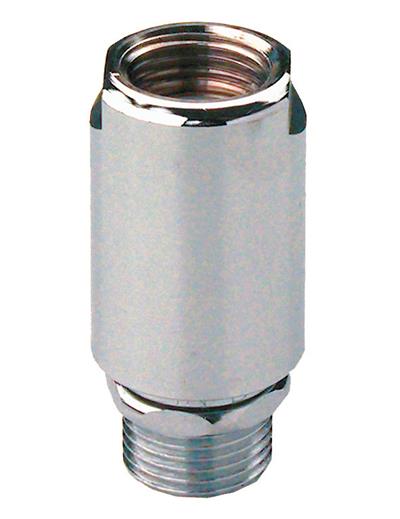

image for 8082

image | jpg

8082

image for Diagram

diagram | jpg

Diagram

installation- & maintenance document | pdf

Installation instructuions 8082

certifications | pdf

Seppelfricke Safe HB 8081 DVGW

certifications | pdf

Seppelfricke Safe HB 8081 DVGW

label

value

label

Max. operating pressure at 20 °C

value

10bar

label

Max. operating pressure at 20 °C (imperial)

value

145.04psi

label

Max. medium temperature (continuous)

value

90°C

label

Max. medium temperature (continuous) (imperial)

value

194°F

label

Surface protection

value

Chromium-plated

label

Working length connection 1

value

12mm

label

Working length connection 1 (imperial)

value

0.47"
