products

SEPP Safe aerator HB, form C

if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

segments

commercial building

commercial building

industry

industry

approvals

DVGW Wasser

DVGW Wasser

item number

size

dimensions

weight

packaging

gtin

item number

0006033

size

G1/2" x G1/2" (DN15)

dimensions

30x30x47 mm

weight

0.12 kg

packaging

carton (1 pce)

gtin

04018422021684

item number

0006034

size

G3/4" x G3/4" (DN20)

dimensions

33x33x49 mm

weight

0.17 kg

packaging

carton (1 pce)

gtin

04018422021691

item number

0006035

size

G1" x G1" (DN25)

dimensions

46x46x59 mm

weight

0.28 kg

packaging

carton (1 pce)

gtin

04018422021707

item number

size

DN1

z1

DN2

z2

item number

0006033

size

G1/2" x G1/2" (DN15)

DN1

1/2" (DN15)

z1

17

DN2

1/2" (DN15)

z2

13

item number

0006034

size

G3/4" x G3/4" (DN20)

DN1

3/4" (DN20)

z1

15

DN2

3/4" (DN20)

z2

14

item number

0006035

size

G1" x G1" (DN25)

DN1

1" (DN25)

z1

20

DN2

1" (DN25)

z2

15

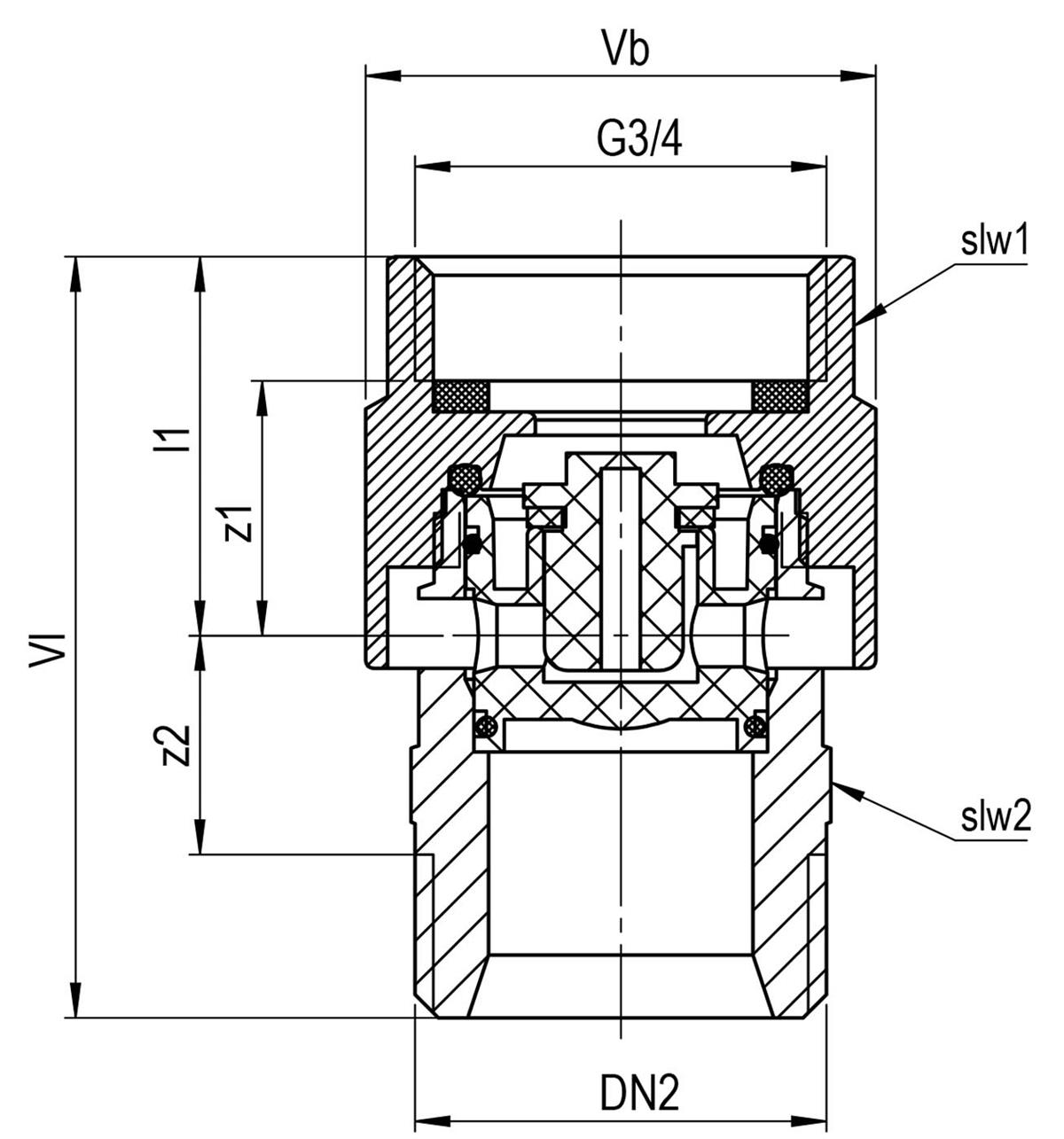

technical drawing for product

characteristics

color

chrome

materials

brass (CW617N)

finishing

chromed

shape

straight (0º)

connection type

G - female thread gas cylindrical (BSPP)

pressure rating (PN)

PN 10

sealing

EPDM

general

product group

safety valves (safety valves, aerators)

ETIM class

EC010131 Aerator (pressureless system)

HS code

84818019

brand

Seppelfricke

series

SEPP Safe

type

8081

technical

max operating pressure liquid

10 bar

max medium temperature

90 °C

peak medium temperature

90 °C

Kvs-value

value depends on the item view items

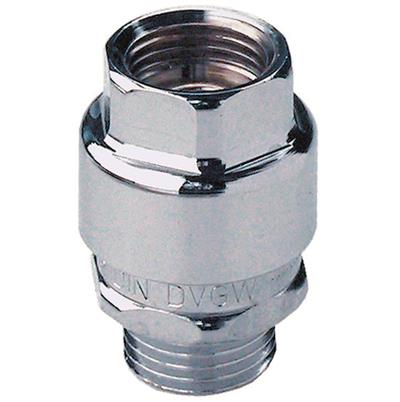

image for 8081

image | jpg

8081

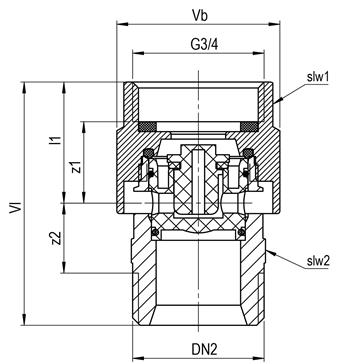

image for Diagram

diagram | jpg

Diagram

installation- & maintenance document | pdf

Installation instructions 8081

certifications | pdf

Seppelfricke Safe 80 DVGW

certifications | pdf

Seppelfricke Safe 80 DVGW

label

value

label

Housing material

value

Brass

label

Connection 1

value

Internal thread cylindrical BSPP-G (ISO 228-1)

label

Max. operating pressure at 20 °C

value

10bar

label

Max. operating pressure at 20 °C (imperial)

value

145.04psi

label

Max. medium temperature (continuous)

value

90°C

label

Max. medium temperature (continuous) (imperial)

value

194°F

label

Surface protection

value

Chromium-plated
