SEPP-Eis frost-resistant facade tap (key operated)

Product Image for SEPP-Eis frost-resistant facade tap (key operated)
Product Image for SEPP-Eis frost-resistant facade tap (key operated)

group: 8044

The type 8044 SEPP-Eis is a frost resistant exterior tap that does not drip after closing. During freezing the additional volume will be absorbed automaticaly in the wall-tube, thus avoiding frost damage to the tubing system. The exterior tap is suitable for single and isolated walls as well as plastered walls. The SEPP-Eis can be mounted very fast due to the use of a tectite push-connection.
  • available with handle or key
  • does not drip after closing
  • simple and fast installation due to use of push-connection
  • Kiwa and DVGW approval
  • containing a "bucket hook"
  • insulated wall-tube for optimal protaction
  • wall thickness between 135 and 500 mm
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

show all
show less

segments

industry

industry

utility

utility

show all
show less

approvals

ACS

ACS

Belgaqua

Belgaqua

ÜA

ÜA

KIWA

KIWA

DVGW Wasser

DVGW Wasser

show all
show less
  • assortment
  • dimensions
  • specifications
  • downloads
  • ETIM
  • related

code

size

dimensions

weight

packaging

gtin

code

0201251

size

-

dimensions

625x94x129 mm

weight

2.3 kg

packaging

Carton (1 pce)

gtin

04018422298567

code

size

DN1

l1

slw1

d2

DN2

l2

slw2

H1

H2

M

Y

D1

a

angle

code

0201251

size

-

DN1

1/2"

l1

46

slw1

17

d2

14.0

DN2

3/4"

l2

577

slw2

27

H1

68

H2

56

M

6

Y

0

D1

22

a

90

angle

90

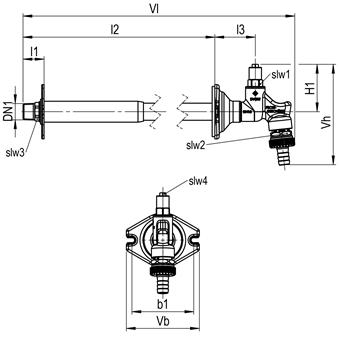

technical drawing for product

product info

item

SEPP-Eis frost-resistant facade tap (key operated)

item number with gtin

8044 (04018422298567)

manufacturer

Aalberts integrated piping systems B.V. (VSH)

weight

2.3 kg

dimensions

625x94x129 mm

characteristics

color

chrome

materials

brass (CW617N)

finishing

matt chrome

shape

Perpendicular, 90º

connection type

R - male thread gas conical (BSPT), G - male thread gas cylindrical (BSPP)

pressure rating (PN)

PN 10

sealing

EPDM

technical

max operating pressure liquid

10 bar

max medium temperature

65 cel

peak medium temperature

90 cel

Kvs-value

0.9

Kv-value

0 - 0.9

general

product group

kranen (facade taps, aerator taps, sanitary taps)

ETIM class

EC011378 Outdoor faucet

HS code

84818019

brand

Seppelfricke

series

SEPP-Eis

type

8044

image for 8044

image | jpg

8044

save to my IPS
image for Diagram

diagram | jpg

Diagram

save to my IPS

installation- & maintenance document | pdf

Installation instructions SEPP-Eis

save to my IPS

certificate | pdf

SEPP Eis-Kiwa

save to my IPS

certificate | pdf

SEPP_ UA_Gebaeudearmaturen

save to my IPS

certificate | pdf

SEPP_Eis_Belgaqua

save to my IPS

certificate | PDF

Seppelfricke SEPP Eis-ACS

save to my IPS

certificate | pdf

SEPP_UA_Gebaeudearmaturen_1Nf

save to my IPS

label

value

label

etim-class

value

EC011378 Outdoor faucet

label

Material

value

Brass

label

Surface protection

value

Chromium-plated

label

Operation

value

Key

label

Tap nozzle

value

External thread

label

Connection supply

value

External thread

label

Connection size supply

value

1/2 inch

label

Size of tap outlet threaded connection (inch)

value

3/4 inch

label

With mixing function for cold and warm water

value

No

label

With wall plate

value

Yes

label

With aerator

value

Yes

label

With swivel protection

value

Yes

label

Wall thickness

value

135mm - 500mm

label

Wall lead-through diameter

value

34mm

label

Separate feed-through for spindle

value

No

label

Backflow safeguard according to EN 1717

value

EB

label

Max. tap capacity (at 300 kPa)

value

24l/min
