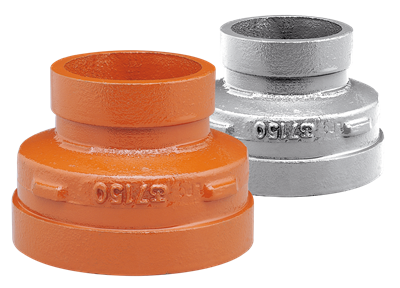

VSH Shurjoint concentric reducer (2 x groove)

VSH Shurjoint concentric reducer (2 x groove)

7150

Shurjoint grooved-end reducers are made of ductile iron per ASTM A536 Gr. 65-45-12. dimensions are manufacturer’s standard.

Shurjoint standard fitting pressure ratings conform to the ratings of Model 7707 couplings.

applications

heating cooling compressed air sprinkler dry fire main

solutions

building installations fire protection industry

approvals

FM LPCB TSU UL ULc
item number size weight dimensions packaging gtin
171504515001 114.3x48.3 orange 1 kg 115x115x76 mm carton (12 pce) 08711985444162
171504520001 114.3x60.3 orange 0.91 kg 115x115x76 mm carton (24 pce) 08711985444179
171504520003 114.3x60.3 galvanized 0.91 kg 115x115x76 mm carton (24 pce) 08711985444186
171504529001 114.3x76.1 orange 1.03 kg 115x115x76 mm carton (20 pce) 08711985444193
171504529003 114.3x76.1 galvanized 1.03 kg 115x115x76 mm carton (20 pce) 08711985444209
171504530001 114.3x88.9 orange 1.3 kg 115x115x76 mm carton (20 pce) 08711985444216
171504530003 114.3x88.9 galvanized 1.3 kg 115x115x76 mm carton (20 pce) 08711985444223
171505245001 139.7x114.3 orange 1.42 kg 140x140x90 mm carton (12 pce) 08711985444254
171505245003 139.7x114.3 galvanized 1.42 kg 140x140x90 mm carton (12 pce) 08711985444261
171505230001 139.7x88.9 orange 1.6 kg 140x140x90 mm carton (12 pce) 08711985444230
171505230003 139.7x88.9 galvanized 1.6 kg 140x140x90 mm carton (12 pce) 08711985444247
171505545001 141.3x114.3 orange 1.61 kg 142x142x90 mm carton (12 pce) 04710574425562
171506245001 165.1x114.3 orange 2.1 kg 166x166x102 mm carton (8 pce) 08711985444322
171506245003 165.1x114.3 galvanized 2.1 kg 166x166x102 mm carton (8 pce) 08711985444339
171506252001 165.1x139.7 orange 2.5 kg 166x166x102 mm carton (8 pce) 08711985444346
171506220001 165.1x60.3 orange 1.9 kg 166x166x102 mm carton (8 pce) 08711985444278
171506229001 165.1x76.1 orange 2 kg 166x166x102 mm carton (8 pce) 08711985444285
171506229003 165.1x76.1 galvanized 2 kg 166x166x102 mm carton (8 pce) 08711985444292
171506230001 165.1x88.9 orange 2.21 kg 166x166x102 mm carton (8 pce) 08711985444308
171506230003 165.1x88.9 galvanized 2.21 kg 166x166x102 mm carton (8 pce) 08711985444315
171506545001 168.3x114.3 orange 2.1 kg 169x169x102 mm carton (8 pce) 08711985444407
171506545003 168.3x114.3 galvanized 2.1 kg 169x169x102 mm carton (8 pce) 08711985444414
171506552001 168.3x139.7 orange 2.72 kg 169x169x102 mm carton (7 pce) 08711985444421
171506552002 168.3x139.7 red 2.5 kg 169x169x102 mm carton (7 pce) 04710574460983
171506552003 168.3x139.7 galvanized 2.72 kg 169x169x102 mm carton (8 pce) 08711985444438
171506520001 168.3x60.3 orange 1.9 kg 169x169x102 mm carton (8 pce) 08711985444353
171506520003 168.3x60.3 galvanized 1.9 kg 169x169x102 mm carton (8 pce) 08711985444360
171506529001 168.3x76.1 orange 2.32 kg 169x169x102 mm carton (8 pce) 08711985476743
171506529003 168.3x76.1 galvanized 2.32 kg 169x169x102 mm carton (8 pce) 08711985444377
171506530001 168.3x88.9 orange 2.31 kg 169x169x102 mm carton (8 pce) 04710574425869
171506530002 168.3x88.9 red 2.31 kg 169x169x102 mm carton (8 pce) 04710574425876
171506530003 168.3x88.9 galvanized 2.31 kg 169x169x102 mm carton (8 pce) 04710574425883
171508545001 219.1x114.3 orange 4.27 kg 220x220x127 mm carton (3 pce) 08711985444445
171508545003 219.1x114.3 galvanized 4.27 kg 220x220x127 mm carton (3 pce) 08711985444452
171508552001 219.1x139.7 orange 4.28 kg 220x220x127 mm carton (2 pce) 08711985476767
171508552003 219.1x139.7 galvanized 4.28 kg 220x220x127 mm carton (2 pce) 08711985476781
171508562001 219.1x165.1 orange 5.06 kg 220x220x127 mm carton (3 pce) 08711985444469
171508562003 219.1x165.1 galvanized 5.2 kg 220x220x127 mm carton (3 pce) 08711985444476
171508565001 219.1x168.3 orange 5.2 kg 220x220x127 mm carton (3 pce) 08711985444483
171508565002 219.1x168.3 red 5.2 kg 220x220x127 mm carton (3 pce) 04710574426200
171508565003 219.1x168.3 galvanized 5.2 kg 220x220x127 mm carton (3 pce) 08711985444490
171508530001 219.1x88.9 orange 3.83 kg 220x220x102 mm carton (2 pce) 08711985476750
171508530003 219.1x88.9 galvanized 3.83 kg 220x220x102 mm carton (2 pce) 08711985476774
17150A162001 273 x165.1 orange 9 kg 273x273x152 mm carton (1 pce) 08711985445688
17150A165001 273 x168.3 orange 9 kg 273x273x152 mm carton (1 pce) 08711985445695
17150A165003 273 x168.3 galvanized 9 kg 273x273x152 mm carton (1 pce) 08711985445701
17150A145001 273x114.3 orange 8.46 kg 273x273x152 mm carton (1 pce) 08711985445671
17150A145003 273x114.3 galvanized 8.46 kg 273x273x152 mm carton (1 pce) 08711985445664
17150A162003 273x165.1 galvanized 9 kg 273x273x152 mm carton (1 pce) 08711985477528
17150A185001 273x219.1 orange 8.94 kg 273x273x152 mm carton (1 pce) 08711985445718
17150A185003 273x219.1 galvanized 8.94 kg 273x273x152 mm carton (1 pce) 08711985445725
17150A3A1001 323.9x 273 orange 13.66 kg 324x324x178 mm carton (1 pce) 08711985445763
17150A3A1003 323.9x 273 galvanized 13.66 kg 324x324x178 mm carton (1 pce) 08711985445770
17150A365001 323.9x168.3 orange 14 kg 324x324x178 mm carton (1 pce) 08711985445732
17150A385001 323.9x219.1 orange 14 kg 324x324x178 mm carton (1 pce) 08711985445749
17150A385003 323.9x219.1 galvanized 14 kg 324x324x178 mm carton (1 pce) 08711985445756
171501210001 42.4x33.7 orange 0.19 kg 43x43x64 mm carton (90 pce) 08711985443912
171501210003 42.4x33.7 galvanized 0.19 kg 43x43x64 mm carton (90 pce) 08711985443929
171501510001 48.3x33.7 orange 0.23 kg 49x49x64 mm carton (80 pce) 08711985443936
171501510003 48.3x33.7 galvanized 0.23 kg 49x49x64 mm carton (80 pce) 08711985443943
171501512001 48.3x42.4 orange 0.28 kg 49x49x64 mm carton (50 pce) 08711985443950
171501512003 48.3x42.4 galvanized 0.28 kg 49x49x64 mm carton (50 pce) 08711985443967
171502010001 60.3x33.7 orange 0.37 kg 61x61x64 mm carton (50 pce) 08711985443974
171502010003 60.3x33.7 galvanized 0.37 kg 61x61x64 mm carton (50 pce) 08711985443981
171502012001 60.3x42.4 orange 0.31 kg 61x61x64 mm carton (50 pce) 08711985443998
171502012003 60.3x42.4 galvanized 0.31 kg 61x61x64 mm carton (50 pce) 08711985444001
171502015001 60.3x48.3 orange 0.35 kg 61x61x64 mm carton (36 pce) 08711985444018
171502015003 60.3x48.3 galvanized 0.35 kg 61x61x64 mm carton (36 pce) 08711985444025
171502912001 76.1x42.4 orange 0.5 kg 77x77x64 mm carton (28 pce) 08711985444032
171502912003 76.1x42.4 galvanized 0.5 kg 77x77x64 mm carton (28 pce) 08711985444049
171502915001 76.1x48.3 orange 0.5 kg 77x77x64 mm carton (28 pce) 08711985444056
171502915003 76.1x48.3 galvanized 0.5 kg 77x77x64 mm carton (28 pce) 08711985444063
171502920001 76.1x60.3 orange 0.5 kg 77x77x64 mm carton (24 pce) 08711985444070
171502920003 76.1x60.3 galvanized 0.5 kg 77x77x64 mm carton (24 pce) 08711985444087
171503012001 88.9x42.4 orange 0.6 kg 89x89x64 mm carton (24 pce) 08711985444094
171503015001 88.9x48.3 orange 0.6 kg 89x89x64 mm carton (24 pce) 08711985444100
171503015003 88.9x48.3 galvanized 0.6 kg 89x89x64 mm carton (24 pce) 08711985444117
171503020001 88.9x60.3 orange 0.6 kg 89x89x64 mm carton (24 pce) 08711985444124
171503020003 88.9x60.3 galvanized 0.6 kg 89x89x64 mm carton (24 pce) 08711985444131
171503029001 88.9x76.1 orange 0.6 kg 89x89x64 mm carton (18 pce) 08711985444148
171503029002 88.9x76.1 red 0.6 kg 89x89x64 mm carton (18 pce) 04710574425210
171503029003 88.9x76.1 galvanized 0.6 kg 89x89x64 mm carton (18 pce) 08711985444155
item number size d1 DN1 l1 z1 d2 DN2 l2 z2 es1 es2
171504515001 114.3x48.3 orange 114.3 DN100 38 38 48.3 DN40 38 38
171504520001 114.3x60.3 orange 114.3 DN100 38 38 60.3 DN50 38 38
171504520003 114.3x60.3 galvanized 114.3 DN100 38 38 60.3 DN50 38 38
171504529001 114.3x76.1 orange 114.3 DN100 38 38 76.1 DN65 38 38
171504529003 114.3x76.1 galvanized 114.3 DN100 38 38 76.1 DN65 38 38
171504530001 114.3x88.9 orange 114.3 DN100 38 38 88.9 DN80 38 38
171504530003 114.3x88.9 galvanized 114.3 DN100 38 38 88.9 DN80 38 38
171505245001 139.7x114.3 orange 139.7 DN125 45 38 114.3 DN100 45 45
171505245003 139.7x114.3 galvanized 139.7 DN125 45 38 114.3 DN100 45 45
171505230001 139.7x88.9 orange 139.7 DN125 45 38 88.9 DN80 45 45
171505230003 139.7x88.9 galvanized 139.7 DN125 45 38 88.9 DN80 45 45
171505545001 141.3x114.3 orange 141.3 DN125 45 38 114.3 DN100 45 45
171506245001 165.1x114.3 orange 165.1 DN150 51 51 114.3 DN100 51 51
171506245003 165.1x114.3 galvanized 165.1 DN150 51 51 114.3 DN100 51 51
171506252001 165.1x139.7 orange 165.1 DN150 51 51 139.7 DN125 51 51
171506220001 165.1x60.3 orange 165.1 DN150 51 51 60.3 DN50 51 51
171506229001 165.1x76.1 orange 165.1 DN150 51 51 76.1 DN65 51 51
171506229003 165.1x76.1 galvanized 165.1 DN150 51 51 76.1 DN65 51 51
171506230001 165.1x88.9 orange 165.1 DN150 51 51 88.9 DN80 51 51
171506230003 165.1x88.9 galvanized 165.1 DN150 51 51 88.9 DN80 51 51
171506545001 168.3x114.3 orange 168.3 DN150 51 51 114.3 DN100 51 51
171506545003 168.3x114.3 galvanized 168.3 DN150 51 51 114.3 DN100 51 51
171506552001 168.3x139.7 orange 168.3 DN150 51 51 139.7 DN125 51 51
171506552002 168.3x139.7 red 168.3 DN150 51 51 139.7 DN125 51 51
171506552003 168.3x139.7 galvanized 168.3 DN150 51 51 139.7 DN125 51 51
171506520001 168.3x60.3 orange 168.3 DN150 51 51 60.3 DN50 51 51
171506520003 168.3x60.3 galvanized 168.3 DN150 51 51 60.3 DN50 51 51
171506529001 168.3x76.1 orange 168.3 DN150 51 51 76.1 DN65 51 51
171506529003 168.3x76.1 galvanized 168.3 DN150 51 51 76.1 DN65 51 51
171506530001 168.3x88.9 orange 168.3 DN150 51 51 88.9 DN80 51 51
171506530002 168.3x88.9 red 168.3 DN150 51 51 88.9 DN80 51 51 25 25
171506530003 168.3x88.9 galvanized 168.3 DN150 51 51 88.9 DN80 51 51
171508545001 219.1x114.3 orange 219.1 DN200 64 64 114.3 DN100 64 64
171508545003 219.1x114.3 galvanized 219.1 DN200 64 64 114.3 DN100 64 64
171508552001 219.1x139.7 orange 219.1 DN200 64 51 139.7 DN125 64 64
171508552003 219.1x139.7 galvanized 219.1 DN200 64 51 139.7 DN125 64 64
171508562001 219.1x165.1 orange 219.1 DN200 64 64 165.1 DN150 64 64
171508562003 219.1x165.1 galvanized 219.1 DN200 64 64 165.1 DN150 64 64
171508565001 219.1x168.3 orange 219.1 DN200 64 64 168.3 DN150 64 64
171508565002 219.1x168.3 red 219.1 DN200 64 64 168.3 DN150 64 64 31 25
171508565003 219.1x168.3 galvanized 219.1 DN200 64 64 168.3 DN150 64 64
171508530001 219.1x88.9 orange 219.1 DN200 51 51 88.9 DN80 51 64
171508530003 219.1x88.9 galvanized 219.1 DN200 51 51 88.9 DN80 51 64
17150A162001 273 x165.1 orange 273.0 DN250 76 76 165.1 DN150 76 76
17150A165001 273 x168.3 orange 273.0 DN250 76 76 168.3 DN150 76 76
17150A165003 273 x168.3 galvanized 273.0 DN250 76 76 168.3 DN150 76 76
17150A145001 273x114.3 orange 273.0 DN250 76 76 114.3 DN100 76 76
17150A145003 273x114.3 galvanized 273.0 DN250 76 76 114.3 DN100 76 76
17150A162003 273x165.1 galvanized 273.0 DN250 76 76 165.1 DN150 76 76
17150A185001 273x219.1 orange 273.0 DN250 76 76 219.1 DN200 76 76
17150A185003 273x219.1 galvanized 273.0 DN250 76 76 219.1 DN200 76 76
17150A3A1001 323.9x 273 orange 323.9 DN300 79 79 273.0 DN250 79 79
17150A3A1003 323.9x 273 galvanized 323.9 DN300 79 79 273.0 DN250 79 79
17150A365001 323.9x168.3 orange 323.9 DN300 79 79 168.3 DN150 79 79
17150A385001 323.9x219.1 orange 323.9 DN300 79 79 219.1 DN200 89 79
17150A385003 323.9x219.1 galvanized 323.9 DN300 79 79 219.1 DN200 89 79
171501210001 42.4x33.7 orange 42.4 DN32 32 32 33.7 DN25 32 32
171501210003 42.4x33.7 galvanized 42.4 DN32 32 32 33.7 DN25 32 32
171501510001 48.3x33.7 orange 48.3 DN40 32 32 33.7 DN25 32 32
171501510003 48.3x33.7 galvanized 48.3 DN40 32 32 33.7 DN25 32 32
171501512001 48.3x42.4 orange 48.3 DN40 32 32 42.4 DN32 32 32
171501512003 48.3x42.4 galvanized 48.3 DN40 32 32 42.4 DN32 32 32
171502010001 60.3x33.7 orange 60.3 DN50 32 32 33.7 DN25 32 32
171502010003 60.3x33.7 galvanized 60.3 DN50 32 32 33.7 DN25 32 32
171502012001 60.3x42.4 orange 60.3 DN50 32 32 42.4 DN32 32 32
171502012003 60.3x42.4 galvanized 60.3 DN50 32 32 42.4 DN32 32 32
171502015001 60.3x48.3 orange 60.3 DN50 32 32 48.3 DN40 32 32
171502015003 60.3x48.3 galvanized 60.3 DN50 32 32 48.3 DN40 32 32
171502912001 76.1x42.4 orange 76.1 DN65 32 32 42.4 DN32 32 32
171502912003 76.1x42.4 galvanized 76.1 DN65 32 32 42.4 DN32 32 32
171502915001 76.1x48.3 orange 76.1 DN65 32 32 48.3 DN40 32 32
171502915003 76.1x48.3 galvanized 76.1 DN65 32 32 48.3 DN40 32 32
171502920001 76.1x60.3 orange 76.1 DN65 32 32 60.3 DN50 32 32
171502920003 76.1x60.3 galvanized 76.1 DN65 32 32 60.3 DN50 32 32
171503012001 88.9x42.4 orange 88.9 DN80 32 32 42.4 DN32 32 32
171503015001 88.9x48.3 orange 88.9 DN80 32 32 48.3 DN40 32 32
171503015003 88.9x48.3 galvanized 88.9 DN80 32 32 48.3 DN40 32 32
171503020001 88.9x60.3 orange 88.9 DN80 32 32 60.3 DN50 32 32
171503020003 88.9x60.3 galvanized 88.9 DN80 32 32 60.3 DN50 32 32
171503029001 88.9x76.1 orange 88.9 DN80 32 32 76.1 DN65 32 32
171503029002 88.9x76.1 red 88.9 DN80 32 32 76.1 DN65 32 32
171503029003 88.9x76.1 galvanized 88.9 DN80 32 32 76.1 DN65 32 32
see above for the diagram related to these dimensions
color silver, red, orange
materials cast iron (ASTM A536 65-45-12)
finishing galvanised, varnished
manufacturer Shurjoint
shape reducer
connection type groove (fitting)
product group fittings (demountable)
ETIM class EC003024 Fitting with 2 connections
HS code 73071910
country of origin Taiwan
brand VSH
series Shurjoint
type 7150
label value
ETIM class EC003024 Fitting with 2 connections
Material connection 1 Cast iron
Material connection 2 Cast iron
Shape Straight
Reducing Yes
Eccentric No
System-specific No
Connection 1 Groove
Connection 2 Groove
With buffer stud No
High tensile strength Yes
With sealing rings/gaskets No
Capped No
With connection indicator No
With drain valve No
With de-aerator No
VdS quality mark No
DVGW quality mark for gas No
DVGW quality mark for water No
Certified according to NF 545 No
KIWA certified No
Gastec QA mark No
KOMO certified No
