VSH Shurjoint 22.5° gooseneck elbow (2 x groove)

group: 7112G

The model 7112G elbows in combination with a coupling will serve as a universal joint and is ideal for instances where a pipe line is in need of a slight adjustment during make-up.
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

heating

heating

cooling

cooling

compressed air

compressed air

sprinkler

sprinkler

dry fire main

dry fire main

segments

fire protection

fire protection

commercial building

commercial building

industry

industry

approvals

CRN

CRN

FM

FM

item number

size

dimensions

weight

packaging

gtin

item number

171120052001

size

139.7 (DN125) orange

dimensions

127x140x140 mm

weight

3.07 kg

packaging

bag (1 pce)

gtin

04710574620257

item number

171120052003

size

139.7 (DN125) galvanized

dimensions

127x140x140 mm

weight

2.94 kg

packaging

bag (1 pce)

gtin

04710574620271

item number

size

d1

DN1

l1

z1

es1

d2

DN2

l2

z2

es2

angle

item number

171120052001

size

139.7 (DN125) orange

d1

139.7

DN1

DN125

l1

64

z1

64

es1

25

d2

139.7

DN2

DN125

l2

64

z2

64

es2

25

angle

22.5

item number

171120052003

size

139.7 (DN125) galvanized

d1

139.7

DN1

DN125

l1

64

z1

64

es1

25

d2

139.7

DN2

DN125

l2

64

z2

64

es2

25

angle

22.5

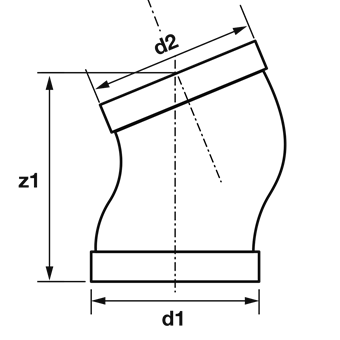

technical drawing for product
