group: 710TP
Test points for needle connections
potable water
heating
cooling
commercial building
industry
BSI
item number
size
weight
dimensions
packaging
gtin
item number
size
R1/4"x36 (5 pack)
weight
0.31 kg
dimensions
170x40x120 mm
packaging
bag (1 pce)
gtin
05022050217004
item number
size
R1/4"x75 (5 pack)
weight
0.12 kg
dimensions
170x60x120 mm
packaging
bag (1 pce)
gtin
05022050217196

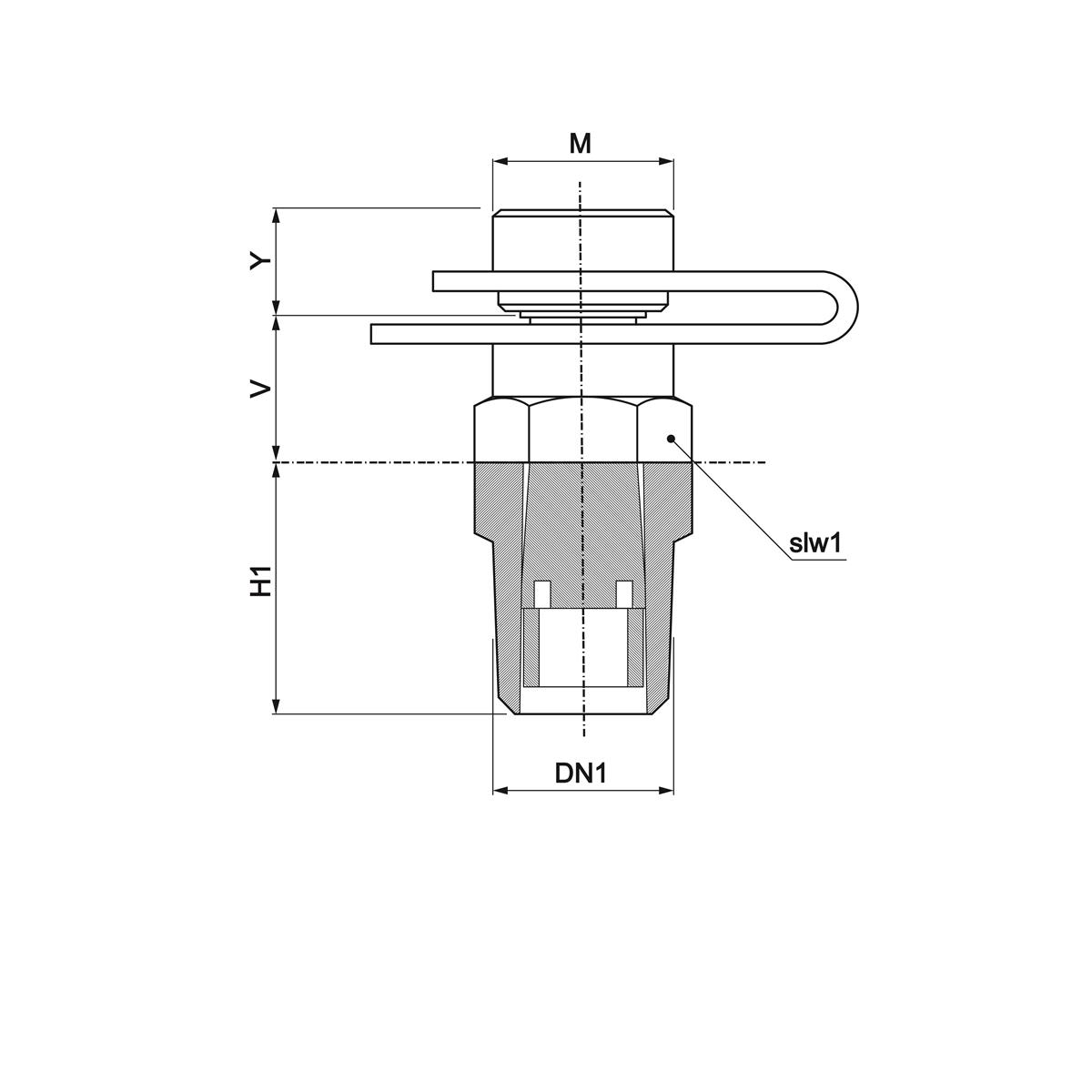

item number
size
d1
DN1
item number
126041
size
R1/4"x36 (5 pack)
d1
13.5
DN1
1/4" (DN8)
item number
126042
size
R1/4"x75 (5 pack)
d1
13.5
DN1
1/4" (DN8)
color
brass
materials
brass (CW602N (DZR))
finishing
none
manufacturer
Aalberts integrated piping systems Ltd (Pegler)
shape
straight (0º)
connection type
R - male thread gas conical (BSPT)
pressure rating (PN)
PN 16
sealing
EPDM
product group
valves (accessories (valves), static balancing valves)
ETIM class
EC003024 Fitting with 2 connections
HS code
84818099
brand
Pegler
series
ProFlow Static
type
710TP
UNSPS
40141609
label
value
label
ETIM class
label
Material connection 1
value
Brass
label
Material quality connection 1
value
CuZn36Pb2As (CW602N)
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Material connection 2
value
Brass
label
Material quality connection 2
value
CuZn36Pb2As (CW602N)
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Shape
value
Straight
label
Model
value
1-part
label
Bend angle
value
0°
label
Reducing
value
No
label
Eccentric
value
No
label
System specific
value
No
label
Nominal diameter connection 1
value
1/4 inch (8)
label
Outer pipe diameter connection 1
value
13.5mm
label
Outer pipe diameter connection 1 (imperial)
value
0.53"
label
Connection 1
value
External thread conical BSPT-R (ISO 7-1 / EN 10226-1)
label
Main colour fitting
value
Brass
label
Flange compression class (PN)
value
PN 16
label
Material sealing
value
Ethylene-propylene diene monomer rubber (EPDM)
label
With buffer stud
value
No
label
Length
value
170mm
label
With thermal insulation
value
No
label
With sealing rings/gaskets
value
No
label
Capped
value
No
label
With connection indicator
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
Certified according to NF 545
value
No
label
KIWA certified
value
No
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
