VSH SmartPress O-ring EPDM

group: 599E-VSH

VSH SmartPress is an innovative press connection system designed for joining 1/2"-2" IPS ASTM A312 schedule 5/10s stainless steel pipe (approved for use with both AISI type 304/304L and 316/316L stainless). The VSH SmartPress product range consists of V-profile (type ASP) press fittings and valves produced from AISI 316L stainless steel alloy that are fitted with patented sealing elements for a guaranteed safe, leak-tight and lasting connection. The VSH SmartPress system offers end-users a complete solution with maximum coverage of commercial and industrial applications requiring HNBR, EPDM, or FPM sealing elements.
  • complete range of AISI 316 fittings and valves
  • 500 psi operating pressure
  • color-coded Visu-control® foil for material/dimensions identification and visual press indication
  • patented sealing element design with Leak Before Pressed technology for added safety and optimized installation
  • clear identification of sealing element and dimensions
  • quick installation thanks to pre-marked insertion depth
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

cooling

cooling

steam

steam

compressed air

compressed air

sprinkler

sprinkler

vacuum

vacuum

segments

fire protection

fire protection

commercial building

commercial building

industry

industry

approvals

FM

FM

IAPMO/ANSI/CAN Z1117

IAPMO/ANSI/CAN Z1117

NSF/ANSI 372

NSF/ANSI 372

NSF/ANSI 61

NSF/ANSI 61

UL

UL

ULc

ULc

item number

size

dimensions

weight

packaging

gtin

item number

123460351

size

1/2"

dimensions

-

weight

0 kg

packaging

bag (20 pce)

gtin

08711985542103

item number

123460352

size

3/4"

dimensions

-

weight

0 kg

packaging

bag (20 pce)

gtin

08711985542110

item number

123460353

size

1"

dimensions

-

weight

0 kg

packaging

bag (20 pce)

gtin

08711985542127

item number

123460354

size

1 1/2"

dimensions

-

weight

0 kg

packaging

bag (20 pce)

gtin

08711985542134

item number

123460355

size

2"

dimensions

-

weight

0.01 kg

packaging

bag (20 pce)

gtin

08711985542141

characteristics

color

black

materials

rubber (EPDM)

finishing

none

shape

round

connection type

press

sealing

EPDM

general

product group

fittings (accessories (fittings))

ETIM class

EC010584 Rubber O-ring seal

HS code

40169300

brand

VSH

series

SmartPress

type

599E

UNSPS

30141703

technical

max operating pressure liquid

34.47 bar

min. medium temperature

-35 °C

max medium temperature

135 °C

peak medium temperature

150 °C

installation- & maintenance document | pdf

VSH SmartPress installation instructions

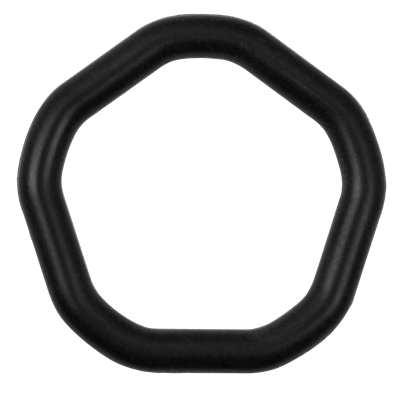

image for 599E

image | png

599E

label

value

label

ETIM class

label

Material

value

Ethylene-propylene diene monomer rubber (EPDM)

label

Colour

value

Black

label

LABS-free

value

Yes

label

Silicone-free

value

Yes

label

Surface protection

value

None

label

KTW quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No
