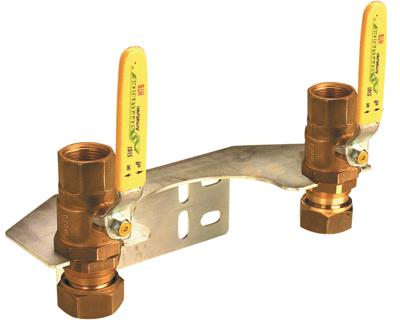

SEPP Easy II assembly unit

SEPP Easy II assembly unit



natural gas


building installations industry
item number size weight dimensions packaging gtin
0049468 Rp1" (DN25) 3.48 kg 260x193x332 mm carton (1 pce) 04018422288841
item number size DN1 z1 z2
0049468 Rp1" (DN25) 1" (DN25) 125 125
see above for the diagram related to these dimensions
color brass
materials brass
finishing none
manufacturer Seppelfricke
connection type G - female thread gas cylindrical (BSPP)
pressure rating (PN) PN 5
sealing HNBR
product group valves (accessories (valves), ball valves)
ETIM class EC011015 Gas valve
HS code 84818081
brand Seppelfricke
series SEPP Easy®
type 5252
SCIP 00338641-a733-4e80-bbfb-ab3f43f72cc9
label value
ETIM class EC011015 Gas valve
Surface protection housing Untreated
Nominal diameter connection 1 1 inch (25)
Connection 1 Internal thread cylindrical BSPP-G (ISO 228-1)
Approved according to EN 331 No
Working length connection 1 125mm
Working length connection 1 (imperial) 4.92"
Working length connection 2 125mm
Working length connection 2 (imperial) 4.92"
DVGW quality mark for gas No
Gastec QA mark No


item number description
0049490 Seppelfricke SEPP Easy® II replacement-meter screw connection Rp1" (DN25)
0049482 Seppelfricke SEPP Easy® II replacement-mounting bracket 1" (DN25)
