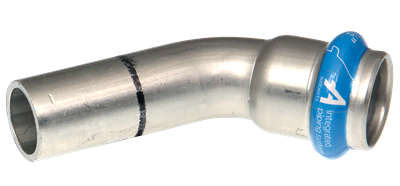

VSH SmartPress is an innovative press connection system designed for joining 1/2"-2" IPS ASTM A312 schedule 5/10s stainless steel pipe (approved for use with both AISI type 304/304L and 316/316L stainless). The VSH SmartPress product range consists of V-profile (type ASP) press fittings and valves produced from AISI 316L stainless steel alloy that are fitted with patented sealing elements for a guaranteed safe, leak-tight and lasting connection. The VSH SmartPress system offers end-users a complete solution with maximum coverage of commercial and industrial applications requiring HNBR, EPDM, or FPM sealing elements.
heating
cooling
compressed air
vacuum
building installations
industry
IAPMO/ANSI/CAN Z1117
| item number | size | weight | dimensions | packaging | gtin |
|---|---|---|---|---|---|
| 123460123 | 1/2" | 0.11 kg | 90x58x33 | bag (10 pce) | 08711985529241 |
| 123460124 | 3/4" | 0.14 kg | 102x67x38 | bag (10 pce) | 08711985529258 |
| 123460125 | 1" | 0.27 kg | 120x82x48 | bag (5 pce) | 08711985529265 |
| 123460126 | 1 1/2" | 0.44 kg | 144x105x65 | bag (1 pce) | 08711985529272 |
| 123460127 | 2" | 0.68 kg | 173x129x80 | bag (1 pce) | 08711985529289 |
| item number | size | d1 | DN1 | l1 | z1 | d2 | DN2 | l2 | radius | angle |
|---|---|---|---|---|---|---|---|---|---|---|
| 123460123 | 1/2" | 21.3 | DN15 | 42 | 16 | 21.3 | DN15 | 48 | 26 | 45 |
| 123460124 | 3/4" | 26.9 | DN20 | 44 | 17 | 26.9 | DN20 | 57 | 32 | 45 |
| 123460125 | 1" | 33.7 | DN25 | 52 | 22 | 33.7 | DN25 | 67 | 40 | 45 |
| 123460126 | 1 1/2" | 48.3 | DN40 | 64 | 29 | 48.3 | DN40 | 80 | 58 | 45 |
| 123460127 | 2" | 60.3 | DN50 | 76 | 35 | 60.3 | DN50 | 91 | 72 | 45 |
| color | silver |
|---|---|
| materials | stainless steel (Stainless steel 316L (1.4404)) |
| finishing | none |
| manufacturer | Aalberts integrated piping systems B.V. (VSH) |
| shape | Bend (45º) |
| connection type | press (V), tube end |
| sealing | FPM |
| product group | fittings |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| HS code | 73072980 |
| brand | VSH |
| series | SmartPress |
| type | 506-2F |
| UNSPS | 40172100 |
| label | value |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| Material connection 1 | Stainless steel |
| Material quality connection 1 | Stainless steel 316 L (1.4404) |
| Surface protection connection 1 | Untreated |
| Surface treatment connection 1 | Untreated |
| Material connection 2 | Stainless steel |
| Material quality connection 2 | Stainless steel 316 L (1.4404) |
| Surface protection connection 2 | Untreated |
| Surface treatment connection 2 | Untreated |
| Shape | Bend |
| Model | 1-part |
| Bend angle | 45° |
| Reducing | No |
| Eccentric | No |
| System specific | Yes |
| Connection 1 | Press sleeve |
| Contour code connection 1 | V |
| Connection 2 | Spigot/tube end |
| Main colour fitting | Grey |
| Material sealing | Fluorelastomer rubber (FPM/FKM) |
| With buffer stud | Yes |
| Medium temperature (continuous) | -20°C - 200°C |
| Medium temperature (continuous) (imperial) | -4°F - 392°F |
| Max. operating pressure at 20 °C | 34.47bar |
| Max. operating pressure at 20 °C (imperial) | 500psi |
| With thermal insulation | No |
| With sealing rings/gaskets | No |
| Capped | No |
| With connection indicator | Yes |
| With drain valve | No |
| With de-aerator | No |
| FM quality mark | No |
| LPCB quality mark | No |
| ULC quality mark | No |
| UL quality mark | No |
| VdS quality mark | No |
| DVGW quality mark for gas | No |
| DVGW quality mark for water | No |
| KIWA certified | No |
| Gastec QA mark | No |
| KOMO certified | No |
| Gastec QA - AR 214 (H2) | No |
