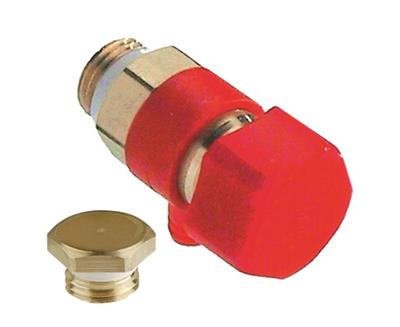

SEPP Servo drain valve set

group: 4966.37

drain valve set consisting of:
  • drain valve
  • plug
  • brass
  • self-sealing
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

segments

commercial building

commercial building

industry

industry

approvals

DVGW Wasser

DVGW Wasser

item number

size

DN1

l1

slw1

M

Y

item number

0026095

size

G1/4" (DN8)

DN1

1/4" (DN8)

l1

18

slw1

17

M

23

Y

13

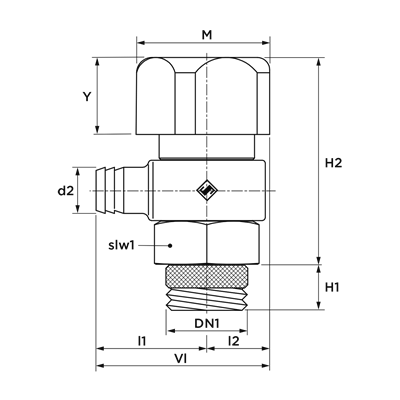

technical drawing for product

characteristics

color

brass, red

materials

brass (CW617N)

finishing

none

shape

straight

connection type

G - male thread gas cylindrical (BSPP)

pressure rating (PN)

PN 16

sealing

PTFE

general

product group

valves (accessories (valves), stop valves)

ETIM class

EC010985 Drain valve (radiator and tap water)

HS code

84819000

brand

Seppelfricke

series

SEPP Servo

type

4966.37

SCIP

f9d250b7-dc33-473e-a7c0-f1c52eda6491

label

value

label

Housing material

value

Brass

label

Size of threaded connection

value

1/4 inch (8)

label

Connection 1

value

External thread cylindrical BSPP-G (ISO 228-1)

label

Max. medium temperature (continuous)

value

90°C

label

Max. medium temperature (continuous) (imperial)

value

194°F

label

Surface protection

value

Untreated

label

With operating key

value

No

label

Rotating spout

value

Yes

label

Suitable for tap water

value

Yes

label

Suitable for central heating water

value

No

label

Max. operating pressure

value

16bar

label

KIWA certified

value

No
