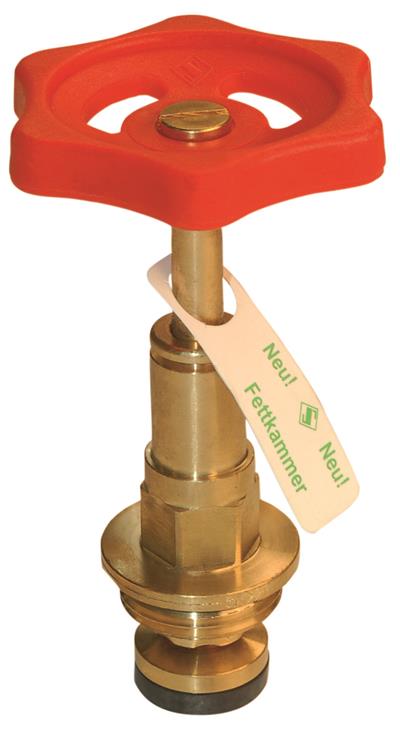

SEPP Servo free flow valve headpart

SEPP Servo free flow valve headpart

group: 4922

applications

potable water

potable water

heating

heating

show all
show less

solutions

building installations

building installations

industry

industry

show all
show less

approvals

no approvals available

item number size weight dimensions packaging gtin
0049810 G1/2" (DN15) 0.11 kg 75x60x60 mm bag (1 pce) 04018422290950
0049811 G3/4" (DN20) 0.15 kg 81x60x60 mm bag (1 pce) 04018422290967
0049809 G1" (DN25) 0.27 kg 95x70x70 mm bag (1 pce) 04018422290943
0049812 G1 1/4" (DN32) 0.43 kg 120x70x70 mm bag (1 pce) 04018422290974
0049813 G1 1/2" (DN40) 0.52 kg 123x90x90 mm bag (1 pce) 04018422290981
0210133 G2" (DN50) 0.87 kg 162x90x90 mm bag (1 pce) 04018422306521
item number size DN1 l1 slw1 M Y V U D1
0049810 G1/2" (DN15) 1/2" (DN15) 20 17 60 14 82 36 16
0049811 G3/4" (DN20) 3/4" (DN20) 23 17 60 14 91 38 22
0049809 G1" (DN25) 1" (DN25) 27 22 70 19 104 46 28
0049812 G1 1/4" (DN32) 1 1/4" (DN32) 29 27 70 19 131 52 35
0049813 G1 1/2" (DN40) 1 1/2" (DN40) 35 27 90 23 136 56 41
0210133 G2" (DN50) 2" (DN50) 34 32 90 23 174 68 53
drawing for product
color brass, red
materials brass (CW617N)
finishing none
manufacturer Seppelfricke
shape straight
connection type G - male thread gas cylindrical (BSPP)
pressure rating (PN) PN 16
sealing EPDM
product group valves (accessories (valves), stop valve)
ETIM class EC011657 Accessories/spare parts for globe valve
HS code 84819000
brand Seppelfricke
series SEPP Servo
type 4922
SCIP 595b237a-cb3d-4f91-8731-a4c832a4905b
label value
ETIM class EC011657 Accessories/spare parts for globe valve
Material Brass

accessories

item number description
0037057 Seppelfricke SEPP Servo hand wheel DN25-32 SW8,0 x D70
0037056 Seppelfricke SEPP Servo hand wheel DN15-20 SW6,5 x D60
0201315 Seppelfricke SEPP Servo hand wheel DN40-50 SW10,0 x D90
0037059 Seppelfricke SEPP Servo hand wheel DN50 SW12,0 x D90
