SPS angle seat valve non-rising, without drain (2 x press)

group: 4621.10

The Type 4621.10 SPS freeflow valves with press connections have double O-ring seals with grease chamber for permanently smooth and low maintenance operation. The SPS press connections can be used for copper, galvanized steel and stainless steel pipes and can be pressed with M- or V-contour press jaws.

  • with non-rising handwheel
  • with SPS  press connection for copper, galvanized and stainless steel pipe
  • for M- or V-contour press jaws
  • also available with rising operating handle
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

segments

commercial building

commercial building

industry

industry

approvals

DVGW Wasser

DVGW Wasser

KIWA

KIWA

item number

size

dimensions

weight

packaging

gtin

item number

TW0022225

size

15 (DN15)

dimensions

129x38x99 mm

weight

0.38 kg

packaging

bag (1 pce)

gtin

04018422352801

item number

TW0026194

size

18 (DN20)

dimensions

142x38x110 mm

weight

0.5 kg

packaging

bag (1 pce)

gtin

04018422353273

item number

TW0022226

size

22 (DN20)

dimensions

142x38x110 mm

weight

0.59 kg

packaging

bag (1 pce)

gtin

04018422352818

item number

TW0022227

size

28 (DN25)

dimensions

159x46x127 mm

weight

0.76 kg

packaging

bag (1 pce)

gtin

04018422352825

item number

TW0022228

size

35 (DN32)

dimensions

196x56x157 mm

weight

1.18 kg

packaging

bag (1 pce)

gtin

04018422352832

item number

TW0022840

size

42 (DN40)

dimensions

213x56x166 mm

weight

1.73 kg

packaging

bag (1 pce)

gtin

04018422353006

item number

TW0211041

size

54 (DN50)

dimensions

265x58x210 mm

weight

2.44 kg

packaging

bag (1 pce)

gtin

04018422354324

item number

size

d1

DN1

l1

z1

d2

DN2

l2

z2

H1

H2

M

H

Y

V

U

a

item number

tw0022225

size

15 (DN15)

d1

15.0

DN1

DN15

l1

38

z1

12

d2

15.0

DN2

DN15

l2

72

z2

46

H1

19

H2

80

M

36

H

90

Y

62

V

45

U

15

a

41

item number

tw0026194

size

18 (DN20)

d1

18.0

DN1

DN20

l1

40

z1

11

d2

42.0

DN2

DN20

l2

84

z2

55

H1

20

H2

90

M

36

H

80

Y

62

V

59

U

15

a

41

item number

tw0022226

size

22 (DN20)

d1

22.0

DN1

DN20

l1

40

z1

11

d2

18.0

DN2

DN20

l2

84

z2

55

H1

20

H2

90

M

36

H

90

Y

62

V

59

U

15

a

41

item number

tw0022227

size

28 (DN25)

d1

28.0

DN1

DN25

l1

40

z1

11

d2

22.0

DN2

DN25

l2

91

z2

62

H1

21

H2

106

M

46

H

106

Y

73

V

70

U

19

a

41

item number

tw0022228

size

35 (DN32)

d1

35.0

DN1

DN32

l1

46

z1

14

d2

28.0

DN2

DN32

l2

102

z2

70

H1

25

H2

132

M

56

H

132

Y

94

V

85

U

22

a

41

item number

tw0022840

size

42 (DN40)

d1

42.0

DN1

DN40

l1

57

z1

21

d2

35.0

DN2

DN40

l2

121

z2

85

H1

28

H2

138

M

56

H

138

Y

94

V

93

U

22

a

41

item number

tw0211041

size

54 (DN50)

d1

54.0

DN1

DN50

l1

64

z1

18

d2

54.0

DN2

DN50

l2

144

z2

98

H1

33

H2

177

M

60

H

177

Y

125

V

119

U

24

a

41

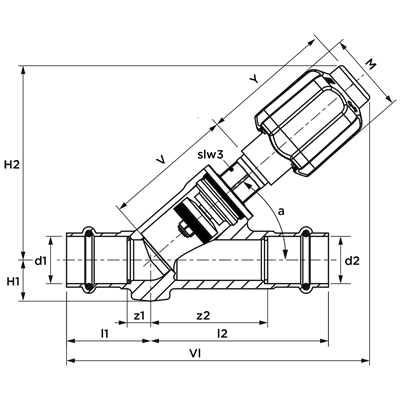

technical drawing for product

characteristics

color

brass

materials

brass (CW625N (DZR))

finishing

none

shape

straight (0º)

connection type

press (M/V)

pressure rating (PN)

PN 16

sealing

EPDM

general

product group

valves (stop valves)

ETIM class

EC010058 Shut down valve (tap water)

HS code

84818079

brand

Seppelfricke

series

SEPP SPS®

type

4621.10

UNSPS

40141611

SCIP

797622a0-2bc2-4feb-b677-a9b24f611e83

technical

max operating pressure liquid

16 bar

max medium temperature

90 °C

peak medium temperature

90 °C

Kvs-value

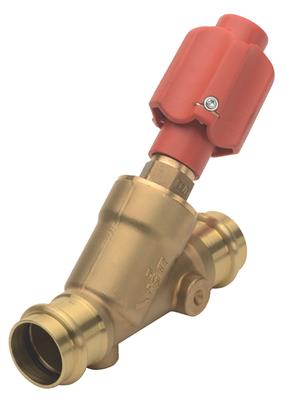

image for 4621.10

image | jpg

4621.10

installation- & maintenance document | pdf

Seppelfricke_SPS_instruction-ML

image for Diagram

diagram | png

Diagram

certifications | pdf

Reach declaration

link to sheet | pdf

SDS-Seppelfricke_SPS_valves_EN

certifications | pdf

SPS-KIWA

label

value

label

Housing material

value

Brass

label

Housing material quality

value

Brass CW625N (CuZn35Pb1.5AlAs)

label

Connection 1

value

Press sleeve

label

With coupling connection 1

value

No

label

Connection 2

value

Press sleeve

label

With coupling connection 2

value

No

label

Contour code

value

M/V

label

Max. medium temperature (continuous)

value

90°C

label

Max. medium temperature (continuous) (imperial)

value

194°F

label

Surface protection

value

Untreated

label

With drain possibility (connection)

value

No

label

With drain valve

value

No

label

With position indicator

value

Yes

label

Spindle and/or hand wheel rising

value

No

label

Spindle angle

value

41°

label

Spindle angle (imperial)

value

1.61"
