SEPP UP right angle valve with short spindle

group: 2701.05

read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

segments

commercial building

commercial building

industry

industry

approvals

DVGW Wasser

DVGW Wasser

item number

size

DN1

l1

z1

slw1

l2

z2

slw2

M

Y

V

item number

0213036

size

Rp1/2" (DN15)

DN1

1/2" (DN15)

l1

29

z1

14

slw1

27

l2

36

z2

22

slw2

27

M

8

Y

10

V

60

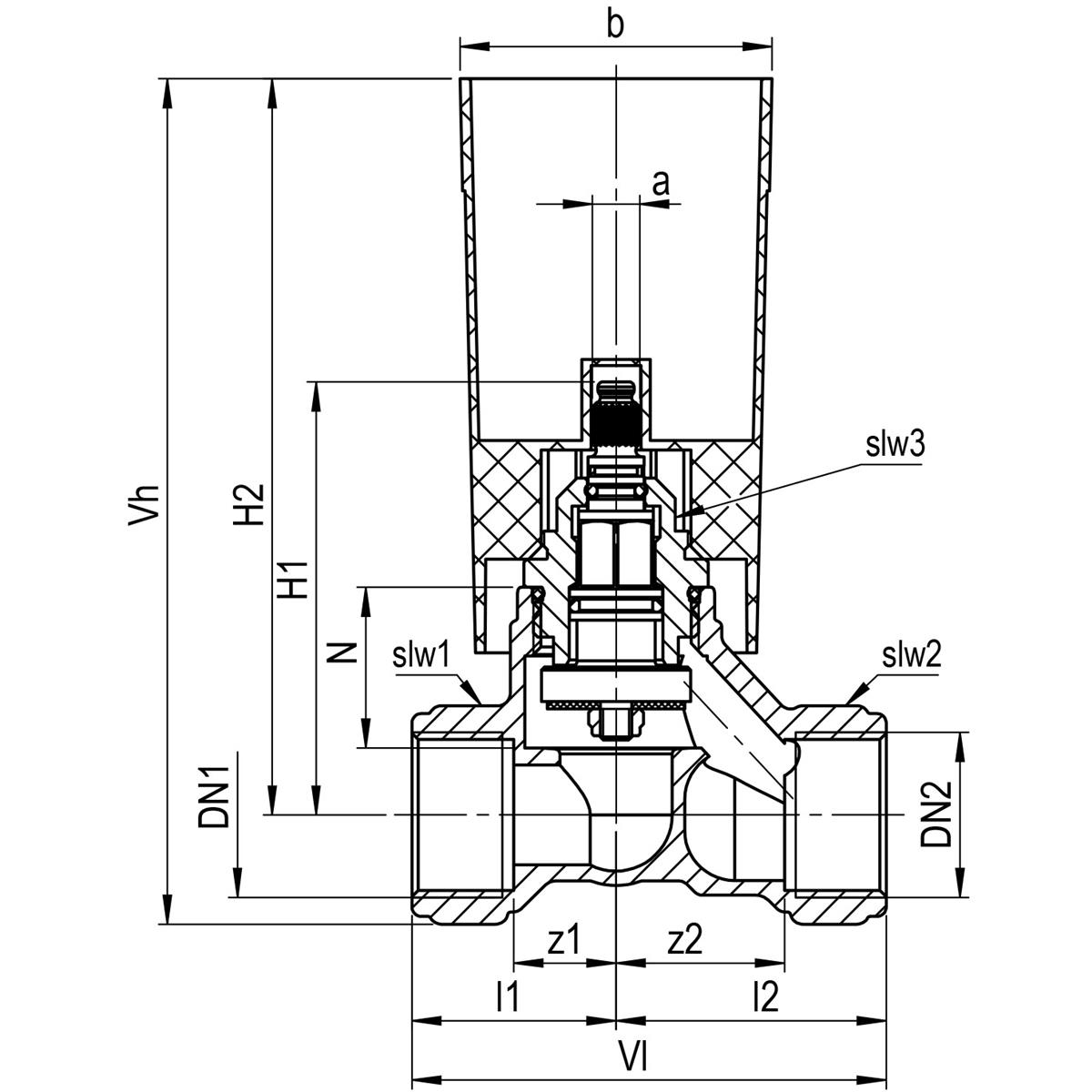

technical drawing for product

characteristics

color

brass

materials

brass (CW617N)

finishing

none

manufacturer

Seppelfricke

shape

straight (0º)

connection type

Rp - female thread cylindrical (BSPT)

pressure rating (PN)

PN 10

sealing

EPDM

general

product group

valves (stop valves)

ETIM class

EC010058 Shut down valve (tap water)

HS code

84818079

brand

Seppelfricke

series

SEPP UP

type

2701.05

label

value

label

Housing material

value

Brass

label

Housing material quality

value

CuZn40Pb2 (CW617N)

label

Nominal diameter

value

1/2 inch (15)

label

Connection 1

value

Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1)

label

With coupling connection 1

value

No

label

Connection 2

value

Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1)

label

With coupling connection 2

value

No

label

Max. medium temperature (continuous)

value

90°C

label

Max. medium temperature (continuous) (imperial)

value

194°F

label

Surface protection

value

Untreated

label

With drain possibility (connection)

value

No

label

With drain valve

value

No

label

With position indicator

value

No

label

Spindle and/or hand wheel rising

value

No

label

Length of connection 1

value

29mm

label

Length of connection 1 (imperial)

value

1.14"

label

Working length connection 1

value

14mm

label

Working length connection 1 (imperial)

value

0.55"

label

Length of connection 2

value

36mm

label

Length of connection 2 (imperial)

value

1.42"

label

Working length connection 2

value

22mm

label

Working length connection 2 (imperial)

value

0.87"

label

Handle/hand wheel height

value

10mm

label

Handle/hand wheel height (imperial)

value

0.39"

label

Length of handle/diameter of hand wheel

value

8mm

label

Length of handle/diameter of hand wheel (imperial)

value

0.31"
