SEPP DIN-Basis check valve headpart

code

size

dimensions

weight

packaging

gtin

code

0201074

size

G1/2" (DN15)

dimensions

61x26x26 mm

weight

0.1 kg

packaging

bag (1 pce)

gtin

04018422297362

code

0017977

size

G3/4" (DN20)

dimensions

71x32x32 mm

weight

0.1 kg

packaging

bag (1 pce)

gtin

04018422121933

code

0017978

size

G1" (DN25)

dimensions

90x40x40 mm

weight

0.19 kg

packaging

bag (1 pce)

gtin

04018422121940

code

0017979

size

G1 1/4" (DN32)

dimensions

118x49x49 mm

weight

0.36 kg

packaging

bag (1 pce)

gtin

04018422121957

code

0017980

size

G1 1/2" (DN40)

dimensions

140x56x56 mm

weight

0.46 kg

packaging

bag (1 pce)

gtin

04018422121964

code

0017981

size

G2" (DN50)

dimensions

168x68x68 mm

weight

0.76 kg

packaging

bag (1 pce)

gtin

04018422121971

code

0210299

size

G2 1/2" (DN65)

dimensions

193x86x86 mm

weight

0.9 kg

packaging

bag (1 pce)

gtin

04018422300888

code

0210300

size

G3" (DN80)

dimensions

218x102x102 mm

weight

1.5 kg

packaging

bag (1 pce)

gtin

04018422300895

code

size

DN1

l1

slw1

V

U

D1

code

0201074

size

G1/2" (DN15)

DN1

1/2" (DN15)

l1

35

slw1

13

V

55

U

36

D1

16

code

0017977

size

G3/4" (DN20)

DN1

3/4" (DN20)

l1

43

slw1

17

V

65

U

38

D1

22

code

0017978

size

G1" (DN25)

DN1

1" (DN25)

l1

52

slw1

22

V

83

U

46

D1

28

code

0017979

size

G1 1/4" (DN32)

DN1

1 1/4" (DN32)

l1

62

slw1

27

V

108

U

52

D1

35

code

0017980

size

G1 1/2" (DN40)

DN1

1 1/2" (DN40)

l1

71

slw1

27

V

121

U

56

D1

41

code

0017981

size

G2" (DN50)

DN1

2" (DN50)

l1

88

slw1

32

V

156

U

68

D1

53

code

0210299

size

G2 1/2" (DN65)

DN1

2 1/2" (DN65)

l1

100

slw1

36

V

181

U

86

D1

68

code

0210300

size

G3" (DN80)

DN1

3" (DN80)

l1

110

slw1

41

V

198

U

120

D1

82

product info

item

SEPP DIN-Basis check valve headpart

item number with gtin

1928

manufacturer

Aalberts integrated piping systems B.V. (VSH)

weight

1.5 kg

dimensions

218x102x102 mm

characteristics

color

brass

materials

brass (CW617N)

finishing

none

shape

straight

connection type

G - male thread gas cylindrical (BSPP)

pressure rating (PN)

PN 16

sealing

EPDM

technical

max operating pressure liquid

16 bar

max medium temperature

90 °C

peak medium temperature

90 °C

general

product group

valves (accessories (valves), check valves)

ETIM class

EC010164 Accessories/spare parts for check valve

HS code

84819000

brand

Seppelfricke

series

SEPP DIN-Basis

type

1928

SCIP

595b237a-cb3d-4f91-8731-a4c832a4905b

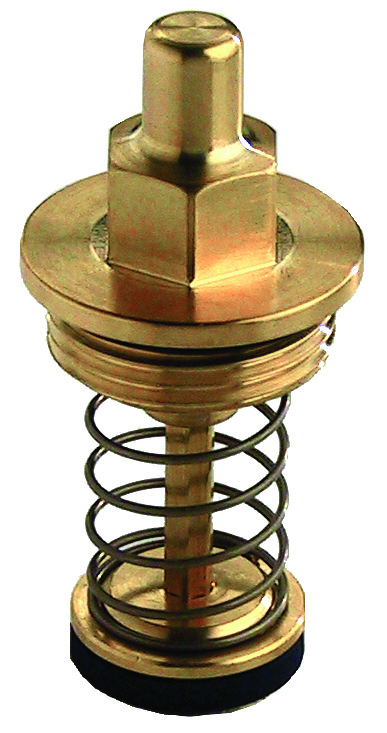

image | png

1928

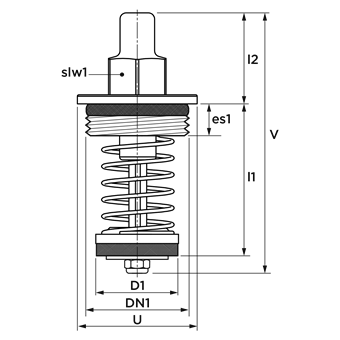

diagram | png

Diagram

certifications | pdf

Reach declaration

label

value

label

etim-class

value

EC010164 Accessories/spare parts for check valve

label

Type of accessory/spare part

value

Spare set

label

Accessory

value

Yes

label

Spare part

value

Yes
