Pegler ProFlow 1600 operating tool

Pegler ProFlow 1600 operating tool

1600PT

The type 1600PT, Apollo ProFlow operating tool is designed to rotate the head of the 1600 PICV from the flush configuration to the isolation and regulating function.

The type 1600 PICV is designed to eliminate existing heating and cooling system issues. Apollo ProFlow PICV’s are supplied in bypass configuration. Valves can be installed and flushed (forward and backward) at full bore prior to commissioning with the PICV mechanism safely out of the way. Once the system is clean and ready to commission, a simple rotation of the PICV head introduces the valve into the flow, and rotates the bypass out of the way.

  • the head of the 1600 PICV can only be rotated when the locking pin is removed
  • when the 1600 PICV is in use, the valve and its parts can be hot. When handling the valve, appropriate safety measures must be taken

applications

heating cooling

solutions

building installations industry

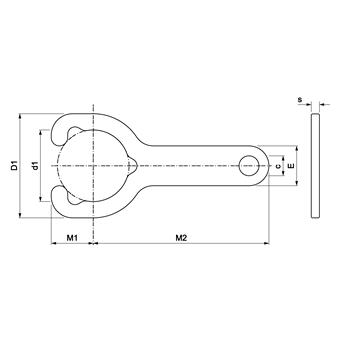

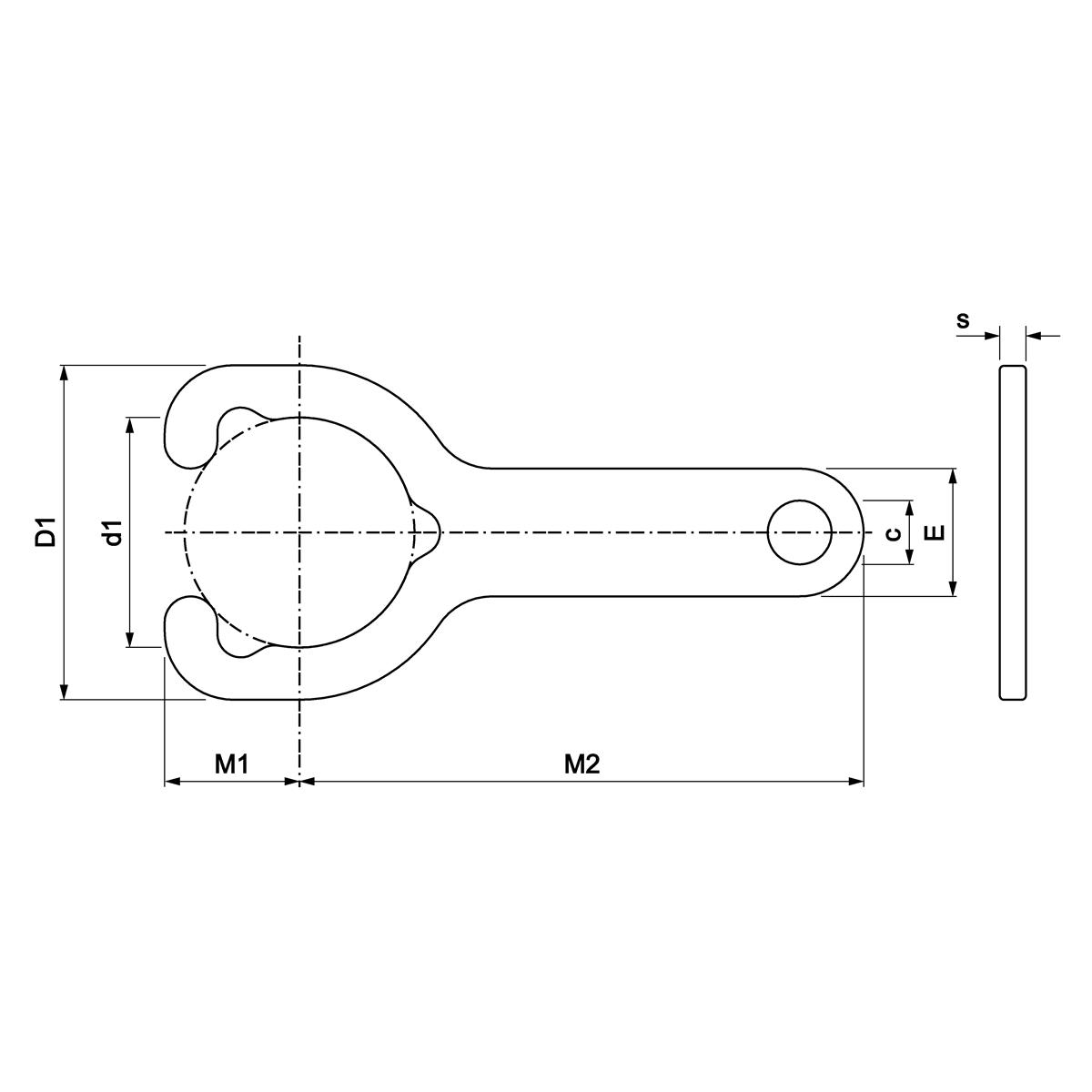

item number size weight dimensions packaging gtin
16079 DN15 0.12 kg 79x164x3 mm bag (1 pce) 05022050654953
16080 DN20/DN25 0.13 kg 90x175x3 mm bag (1 pce) 05022050655066
color silver
materials stainless steel (Stainless steel 304 (1.4301))
finishing none
manufacturer Pegler Yorkshire
product group tools (accessories (tools))
ETIM class EC002130 Spanner
HS code 82041100
brand Pegler
series ProFlow dynamic
type 1600PT
label value
ETIM class EC002130 Spanner
Single wrench model Yes
Right-angled wrench model Yes
Isolation protection 1000 V No
Low spark model No
Suitable for tommy bar No
With tommy bar No
Tapered handle No
