Pegler ProFlow 1600 cartridge

Pegler ProFlow 1600 cartridge

group: 1600CRT

The type 1600CRT Apollo ProFlow PICV cartridge can replace existing cartridges in the valves. By choosing a cartridge with different parameters, the flow range of the valve can be adjusted without having to demount the complete valve. The cartridges can be exchanged with the system in-use (hot-swap)

The type 1600, Apollo PICV is designed to eliminate existing heating and cooling system issues. Apollo ProFlow PICV’s are supplied in bypass configuration. Valves can be installed and flushed (forward and backward) at full bore prior to commissioning with the PICV mechanism safely out of the way. Once the system is clean and ready to commission, a simple rotation of the PICV head introduces the valve into the flow, and rotates the bypass out of the way.

  • the cartridges are colour-coded to avoid mix-up

applications

heating

heating

cooling

cooling

show all
show less

solutions

building installations

building installations

industry

industry

show all
show less

approvals

no approvals available

item number size weight dimensions packaging gtin
16070 DN15 LF 0.06 kg 105x32x32 mm bag (1 pce) 05022050654779
16071 DN15 SF 0.06 kg 105x32x32 mm bag (1 pce) 05022050654793
16072 DN15 HF 0.06 kg 105x32x32 mm bag (1 pce) 05022050654816
16073 DN20 SF 0.1 kg 125x40x40 mm bag (1 pce) 05022050654830
16074 DN20 HF/DN25 SF 0.1 kg 124x40x40 mm bag (1 pce) 05022050654854
item number size d1 l1 d2 l2 D1
16070 DN15 LF 18.7 13 24.5 93 32
16071 DN15 SF 18.7 13 24.5 93 32
16072 DN15 HF 18.7 13 32.0 93 32
16073 DN20 SF 18.7 13 38.0 112 40
16074 DN20 HF/DN25 SF 18.7 13 38.0 112 40

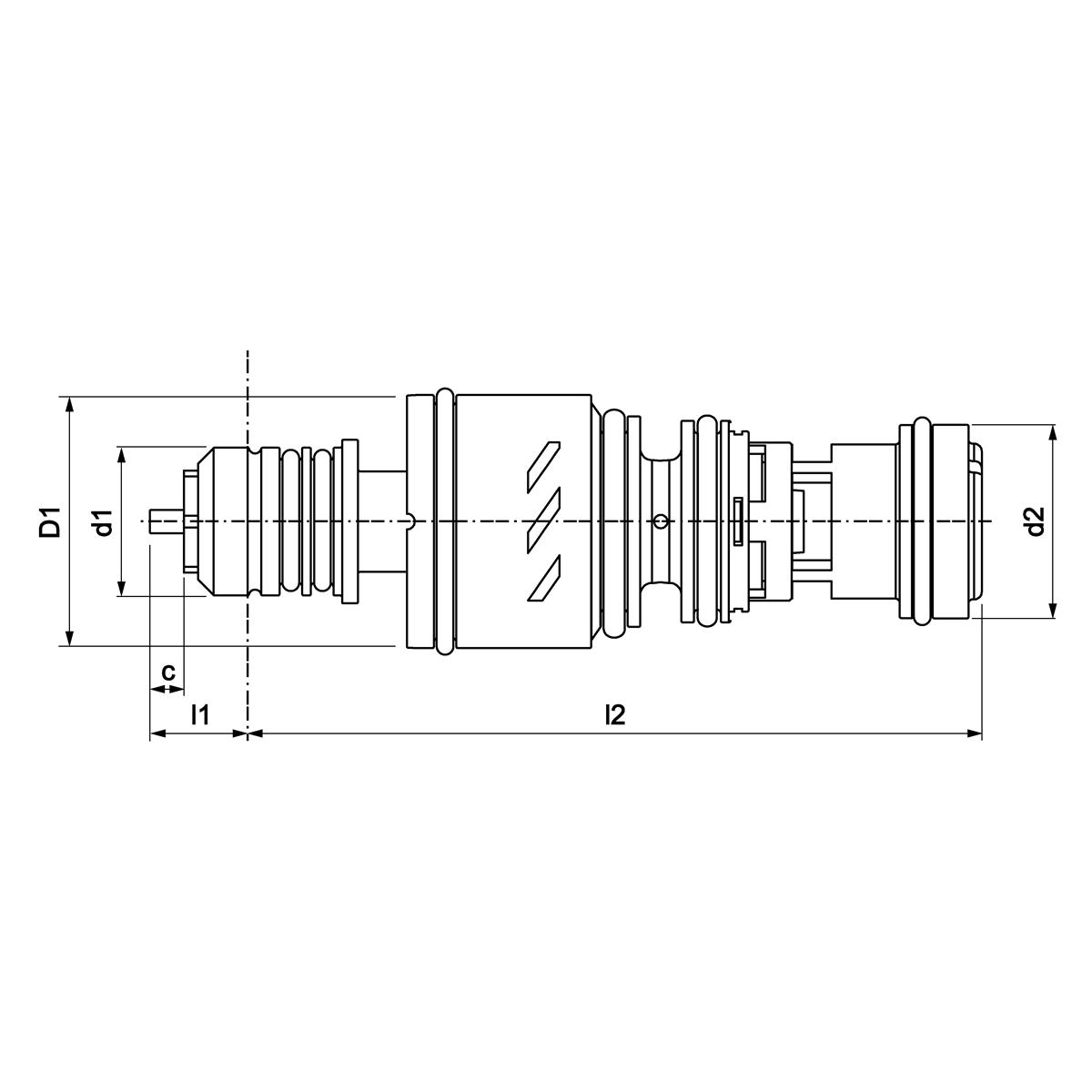

drawing for product
color white, black, red
materials plastic, brass
finishing none
manufacturer Pegler Yorkshire
shape straight (0º)
sealing EPDM
product group valves (accessories (valves), dynamic balancing valve)
ETIM class EC011656 Accessories/spare parts for regulating valve
HS code 84819000
brand Pegler
series ProFlow Dynamic Integrated Technology
type 1600CRT
UNSPS 40161809
label value
ETIM class EC011656 Accessories/spare parts for regulating valve
Type of accessory/spare part Cartridge
Accessory Yes
Spare part Yes
