Apollo ProFlow dynamic control valve PICV (2 x female thread)

group: 1600

The type 1600, Apollo ProFlow Pressure Independent Control Valve (PICV), is designed to eliminate existing heating and cooling system issues, saving significant time and money. Apollo ProFlow PICV’s are supplied in bypass configuration. Valves can be installed and flushed (forward and backward) at full bore prior to commissioning with the PICV mechanism safely out of the way. Once the system is clean and ready to commission, a simple rotation of the PICV head introduces the valve into the flow, and rotates the bypass out of the way. Type Apollo ProFlow PICV valves are available with several connection technologies.
  • ensures bypass/flushing have been actioned to prevent future issues
  • utilise as isolating valve; no need for ball valve inline
  • less time removing cartridges for flushing
  • includes test points
  • hot swap of inserts
  • visible setting indication with actuator on
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

heating

heating

cooling

cooling

segments

commercial building

commercial building

industry

industry

approvals

no approvals available

item number

size

dimensions

weight

packaging

gtin

item number

16001

size

G1/2" (DN15) LF

dimensions

153x65x96 mm

weight

0.9 kg

packaging

bag (1 pce)

gtin

05022050605375

item number

16002

size

G1/2" (DN15) SF

dimensions

153x65x96 mm

weight

0.88 kg

packaging

bag (1 pce)

gtin

05022050605405

item number

16003

size

G1/2" (DN15) HF

dimensions

153x65x96 mm

weight

0.89 kg

packaging

bag (1 pce)

gtin

05022050605436

item number

16004

size

G3/4" (DN20) SF

dimensions

188x104x104 mm

weight

1.47 kg

packaging

bag (1 pce)

gtin

05022050605467

item number

16005

size

G3/4" (DN20) HF

dimensions

188x104x104 mm

weight

1.5 kg

packaging

bag (1 pce)

gtin

05022050605498

item number

16006

size

G1" (DN25) SF

dimensions

188x116x116 mm

weight

1.5 kg

packaging

bag (1 pce)

gtin

05022050605528

item number

size

d1

DN1

l1

z1

slw1

d2

DN2

l2

z2

slw2

H

Y

V

U

a

item number

16001

size

G1/2" (DN15) LF

d1

21.3

DN1

1/2" (DN15)

l1

48

z1

29

slw1

27

d2

21.3

DN2

1/2" (DN15)

l2

48

z2

29

slw2

27

H

90

Y

29

V

38

U

49

a

90

item number

16002

size

G1/2" (DN15) SF

d1

21.3

DN1

1/2" (DN15)

l1

48

z1

29

slw1

27

d2

21.3

DN2

1/2" (DN15)

l2

48

z2

29

slw2

27

H

90

Y

29

V

38

U

49

a

90

item number

16003

size

G1/2" (DN15) HF

d1

21.3

DN1

1/2" (DN15)

l1

48

z1

29

slw1

27

d2

21.3

DN2

1/2" (DN15)

l2

48

z2

29

slw2

27

H

90

Y

29

V

38

U

49

a

90

item number

16004

size

G3/4" (DN20) SF

d1

26.9

DN1

3/4" (DN20)

l1

52

z1

33

slw1

32

d2

26.9

DN2

3/4" (DN20)

l2

52

z2

33

slw2

32

H

105

Y

32

V

50

U

60

a

90

item number

16005

size

G3/4" (DN20) HF

d1

26.9

DN1

3/4" (DN20)

l1

52

z1

33

slw1

32

d2

26.9

DN2

3/4" (DN20)

l2

52

z2

33

slw2

32

H

105

Y

32

V

50

U

60

a

90

item number

16006

size

G1" (DN25) SF

d1

33.7

DN1

1" (DN25)

l1

58

z1

42

slw1

40

d2

33.7

DN2

1" (DN25)

l2

58

z2

42

slw2

40

H

105

Y

32

V

50

U

60

a

90

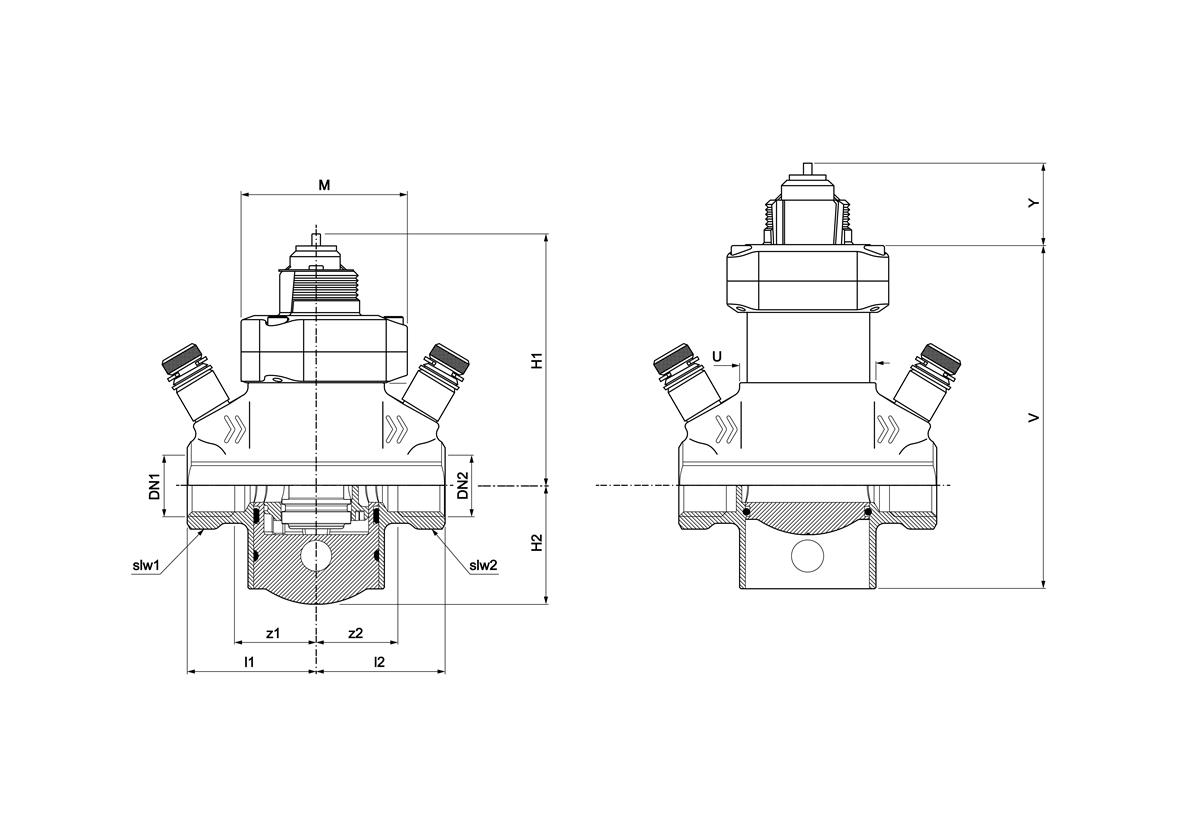

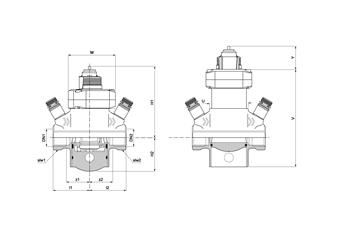

technical drawing for product

characteristics

color

black

materials

brass (CW511L (lead-free))

finishing

powder

shape

straight (0º)

connection type

G - female thread gas cylindrical (BSPP)

pressure rating (PN)

PN 16

sealing

EPDM

general

product group

valves (dynamic balancing valves)

ETIM class

EC011463 Regulating valve

HS code

84818099

brand

Pegler

series

ProFlow Dynamic

type

1600

UNSPS

40141609

technical

max operating pressure liquid

16 bar

min. medium temperature

-10 °C

max medium temperature

90 °C

peak medium temperature

90 °C

Kv-value

image for 1600

image | png

1600

Presentation video | mp4

Apollo Proflow PICV 30s

Other Attachments | docx

Apollo ProFlow 1600 bestektekst NL

image for Diagram

diagram | jpg

Diagram

Other Attachments | pdf

Apollo ProFlow 1600 Ausschreibungstexte DU

Other Attachments | docx

Apollo ProFlow 1600 prescription text EN

certifications | pdf

TM65 Embodied Carbon Declaration

label

value

label

ETIM class

label

Housing material

value

Brass

label

Material quality

value

CuZn38As

label

Surface protection

value

Coated

label

Connection 1

value

Internal thread cylindrical BSPP-G (ISO 228-1)

label

With coupling connection 1

value

No

label

Connection 2

value

Internal thread cylindrical BSPP-G (ISO 228-1)

label

With coupling connection 2

value

No

label

Article compression class

value

PN 16

label

Flange compression class

value

PN 16

label

Suitable for tap water

value

No

label

Suitable for hot tap water

value

No

label

Suitable for central heating water

value

Yes

label

Max. pressure difference at 20 °C

value

4bar

label

Max. operating pressure

value

16bar

label

Max. operating pressure (imperial)

value

232.06psi

label

Medium temperature (continuous)

value

-10°C - 90°C

label

Medium temperature (continuous) (imperial)

value

14°F - 194°F

label

Stroke length

value

3.5mm

label

Suitable for manual operation

value

No

label

Thermostatic

value

No

label

Hydraulic balance control

value

Dynamic

label

With drain valve

value

No

label

With thermometer

value

No

label

With position indicator

value

Yes

label

With measuring nipples

value

Yes

label

With extended measuring nipples

value

No

label

With measuring connector

value

Yes

label

Spindle angle

value

90°

label

Spindle angle (imperial)

value

3.54"

label

With insulation

value

No
