SEPP Kommunal valve non-rising spindle with drain (2 x female thread)

group: 1406.10

The SEPP Kommunal free-flow valve 1406.10 is easy to use, low-maintenance and soundproofed to DIN 4109.
  • non-rising head part with double O-ring seal
  • including drain valve
  • also available with rising head part
  • also available with KFE bonnet with integrated check valve function.
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

segments

commercial building

commercial building

industry

industry

approvals

DVGW Wasser

DVGW Wasser

ÖVGW Wasser

ÖVGW Wasser

ÜA

ÜA

item number

size

dimensions

weight

packaging

gtin

item number

0000825

size

Rp1/2" (DN15)

dimensions

113x75x93 mm

weight

0.42 kg

packaging

bag (1 pce)

gtin

04018422003208

item number

0000826

size

Rp3/4" (DN20)

dimensions

126x79x110 mm

weight

0.51 kg

packaging

bag (1 pce)

gtin

04018422003215

item number

0000827

size

Rp1" (DN25)

dimensions

146x81x129 mm

weight

0.84 kg

packaging

bag (1 pce)

gtin

04018422003222

item number

0000828

size

Rp1 1/4" (DN32)

dimensions

180x88x159 mm

weight

1.3 kg

packaging

bag (1 pce)

gtin

04018422003239

item number

0000829

size

Rp1 1/2" (DN40)

dimensions

189x102x168 mm

weight

1.57 kg

packaging

bag (1 pce)

gtin

04018422003246

item number

0000830

size

Rp2" (DN50)

dimensions

241x109x214 mm

weight

2.68 kg

packaging

bag (1 pce)

gtin

04018422003253

item number

size

d1

DN1

l1

z1

slw1

DN2

l2

z2

slw2

H1

H2

M

Y

V

U

a

item number

0000825

size

Rp1/2" (DN15)

d1

21.3

DN1

1/2" (DN15)

l1

21

z1

6

slw1

27

DN2

1/2" (DN15)

l2

46

z2

31

slw2

27

H1

21

H2

82

M

36

Y

62

V

52

U

36

a

41

item number

0000826

size

Rp3/4" (DN20)

d1

26.9

DN1

3/4" (DN20)

l1

23

z1

7

slw1

32

DN2

3/4" (DN20)

l2

54

z2

38

slw2

32

H1

18

H2

92

M

36

Y

62

V

60

U

38

a

41

item number

0000827

size

Rp1" (DN25)

d1

33.7

DN1

1" (DN25)

l1

27

z1

8

slw1

41

DN2

1" (DN25)

l2

65

z2

45

slw2

41

H1

23

H2

106

M

46

Y

73

V

68

U

46

a

41

item number

0000828

size

Rp1 1/4" (DN32)

d1

42.4

DN1

1 1/4" (DN32)

l1

31

z1

10

slw1

50

DN2

1 1/4" (DN32)

l2

81

z2

60

slw2

50

H1

27

H2

132

M

56

Y

94

V

87

U

52

a

41

item number

0000829

size

Rp1 1/2" (DN40)

d1

48.3

DN1

1 1/2" (DN40)

l1

33

z1

12

slw1

55

DN2

1 1/2" (DN40)

l2

89

z2

68

slw2

55

H1

30

H2

138

M

56

Y

94

V

95

U

56

a

41

item number

0000830

size

Rp2" (DN50)

d1

60.3

DN1

2" (DN50)

l1

41

z1

15

slw1

70

DN2

2" (DN50)

l2

112

z2

86

slw2

70

H1

37

H2

177

M

60

Y

125

V

116

U

68

a

41

technical drawing for product

characteristics

color

brass

materials

brass (CW617N)

finishing

none

shape

straight (0º)

connection type

Rp - female thread cylindrical (BSPT)

pressure rating (PN)

PN 16

sealing

EPDM

general

product group

valves (stop valves)

ETIM class

EC010058 Shut down valve (tap water)

HS code

84818079

brand

Seppelfricke

series

SEPP Kommunal

type

1406.10

SCIP

62ae05cb-5d58-4e86-a09a-90069f6f35a4

technical

max operating pressure liquid

16 bar

max medium temperature

90 °C

peak medium temperature

90 °C

Kvs-value

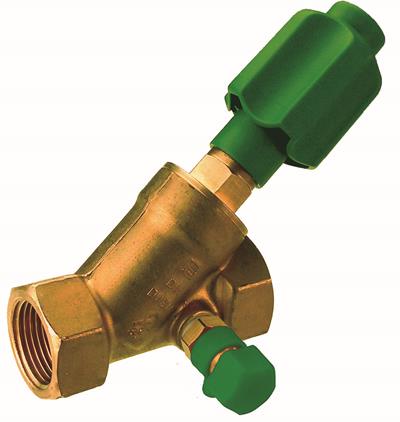

image for 1406.10

image | jpg

1406.10

image for Diagram

diagram | png

Diagram

certifications | pdf

Reach declaration

certifications | pdf

SEPP_ UA_Gebaeudearmaturen

certifications | pdf

Seppelfricke valve ÖVGW

certifications | pdf

SEPP_UA_Gebaeudearmaturen_1Nf

label

value

label

Housing material

value

Brass

label

Housing material quality

value

CuZn40Pb2 (CW617N)

label

Connection 1

value

Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1)

label

With coupling connection 1

value

No

label

Connection 2

value

Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1)

label

With coupling connection 2

value

No

label

Max. medium temperature (continuous)

value

90°C

label

Max. medium temperature (continuous) (imperial)

value

194°F

label

Surface protection

value

Untreated

label

With drain possibility (connection)

value

Yes

label

With drain valve

value

Yes

label

With position indicator

value

Yes

label

Spindle and/or hand wheel rising

value

No

label

Spindle angle

value

41°

label

Spindle angle (imperial)

value

1.61"
