1402.10

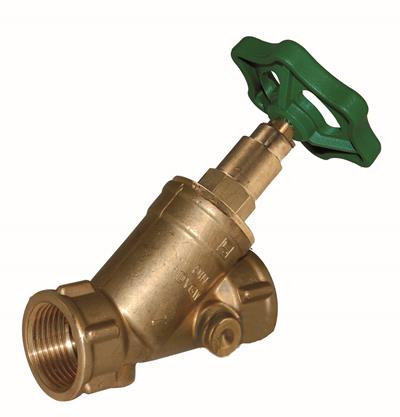

The SEPP DIN-Basis free-flow valve 1402.10 is easy to use, low-maintenance and soundproofed to DIN 4109.
applications
solutions
approvals
| item number | size | weight | dimensions | packaging | gtin |
|---|---|---|---|---|---|
| 0048328 | Rp1/2" (DN15) | 0.31 kg | 105x60x97 mm | bag (1 pce) | 04018422266511 |
| 0048329 | Rp3/4" (DN20) | 0.4 kg | 118x60x106 mm | bag (1 pce) | 04018422266528 |
| 0048330 | Rp1" (DN25) | 0.72 kg | 140x70x127 mm | bag (1 pce) | 04018422266535 |
| 0048331 | Rp1 1/4" (DN32) | 1.16 kg | 161x70x143 mm | bag (1 pce) | 04018422266542 |
| 0048332 | Rp1 1/2" (DN40) | 1.34 kg | 174x70x165 mm | bag (1 pce) | 04018422266559 |
| 0048333 | Rp2" (DN50) | 2.42 kg | 200x70x196 mm | bag (1 pce) | 04018422266566 |
| item number | size | d1 | DN1 | l1 | z1 | slw1 | DN2 | l2 | z2 | slw2 | M | Y | V | U | a |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0048328 | Rp1/2" (DN15) | 21.3 | 1/2" (DN15) | 19 | 5 | 27 | 1/2" (DN15) | 48 | 31 | 27 | 60 | 14 | 70 | 26 | 41 |
| 0048329 | Rp3/4" (DN20) | 26.9 | 3/4" (DN20) | 22 | 6 | 32 | 3/4" (DN20) | 54 | 38 | 32 | 60 | 14 | 84 | 38 | 41 |
| 0048330 | Rp1" (DN25) | 33.7 | 1" (DN25) | 27 | 8 | 40 | 1" (DN25) | 64 | 45 | 40 | 70 | 19 | 95 | 46 | 41 |
| 0048331 | Rp1 1/4" (DN32) | 42.4 | 1 1/4" (DN32) | 31 | 10 | 50 | 1 1/4" (DN32) | 81 | 60 | 50 | 70 | 19 | 117 | 52 | 41 |
| 0048332 | Rp1 1/2" (DN40) | 48.3 | 1 1/2" (DN40) | 35 | 12 | 55 | 1 1/2" (DN40) | 89 | 68 | 55 | 70 | 23 | 131 | 56 | 41 |
| 0048333 | Rp2" (DN50) | 60.3 | 2" (DN50) | 41 | 15 | 70 | 2" (DN50) | 112 | 86 | 70 | 70 | 23 | 96 | 68 | 41 |
| color | brass |
|---|---|
| materials | brass (CW617N) |
| finishing | none |
| manufacturer | Seppelfricke |
| shape | straight (0º) |
| connection type | Rp - female thread cylindrical (BSPT) |
| pressure rating (PN) | PN 16 |
| sealing | EPDM |
| product group | valves (stop valve) |
|---|---|
| ETIM class | EC010058 Shut down valve (tap water) |
| HS code | 84818079 |
| brand | Seppelfricke |
| series | SEPP DIN-Basis |
| type | 1402.10 |
| SCIP | 62ae05cb-5d58-4e86-a09a-90069f6f35a4 |
| label | value |
|---|---|
| ETIM class | EC010058 Shut down valve (tap water) |
| Housing material | Brass |
| Housing material quality | CuZn40Pb2 (CW617N) |
| Connection 1 | Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1) |
| With coupling connection 1 | No |
| Connection 2 | Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1) |
| With coupling connection 2 | No |
| Max. medium temperature (continuous) | 90°C |
| Max. medium temperature (continuous) (imperial) | 194°F |
| Surface protection | Untreated |
| With drain possibility (connection) | No |
| With drain valve | No |
| With position indicator | No |
| Spindle and/or hand wheel rising | No |
| Spindle angle | 41° |
| item number | description | |
|---|---|---|
 |
0048979 | Seppelfricke SEPP DIN-Basis angle seat valve-upper part rising G1/2" (DN15) |
 |
0048340 | Seppelfricke SEPP DIN-Basis angle seat valve-upper part rising G1/2" (DN15) |
 |
0033121 | Seppelfricke SEPP Servo hand wheel DN15-20 SW6,5 x D60 |
 |
0001482 | Seppelfricke SEPP Servo-Plus angle seat valve-upper part non-rising G1/2" (DN15) |
|
0048981 | Seppelfricke SEPP DIN-Basis angle seat valve-upper part rising G3/4" (DN20) |
|
0048341 | Seppelfricke SEPP DIN-Basis angle seat valve-upper part rising G3/4" (DN20) |
|
0001483 | Seppelfricke SEPP Servo-Plus angle seat valve-upper part non-rising G3/4" (DN20) |
|
0048983 | Seppelfricke SEPP DIN-Basis angle seat valve-upper part rising G1" (DN25) |
|
0048342 | Seppelfricke SEPP DIN-Basis angle seat valve-upper part rising G1" (DN25) |
|
0033062 | Seppelfricke SEPP Servo hand wheel DN25-32 SW8,0 x D70 |
|
0033464 | Seppelfricke SEPP Servo hand wheel DN25-32 SW8,0 x D90 |
|
0001484 | Seppelfricke SEPP Servo-Plus angle seat valve-upper part non-rising G1" (DN25) |
|
0048986 | Seppelfricke SEPP DIN-Basis angle seat valve-upper part rising G1 1/4" (DN32) |
|
0048343 | Seppelfricke SEPP DIN-Basis angle seat valve-upper part rising G1 1/4" (DN32) |
|
0001485 | Seppelfricke SEPP Servo-Plus angle seat valve-upper part non-rising G1 1/4" (DN32) |
|
0048988 | Seppelfricke SEPP DIN-Basis angle seat valve-upper part rising G1 1/2" (DN40) |
|
0048344 | Seppelfricke SEPP DIN-Basis angle seat valve-upper part rising G1 1/2" (DN40) |
|
0201314 | Seppelfricke SEPP Servo hand wheel DN40-50 SW10,0 x D90 |
|
0001486 | Seppelfricke SEPP Servo-Plus angle seat valve-upper part non-rising G1 1/2" (DN40) |
|
0048990 | Seppelfricke SEPP DIN-Basis angle seat valve-upper part rising G2" (DN50) |
|
0048345 | Seppelfricke SEPP DIN-Basis angle seat valve-upper part rising G2" (DN50) |
|
0033122 | Seppelfricke SEPP Servo hand wheel DN50 SW12,0 x D90 |
|
0001487 | Seppelfricke SEPP Servo-Plus angle seat valve-upper part non-rising G2" (DN50) |
