SEPP DIN-Gerade right angle valve (KFE)

if the download did not start automatically, click here

PDF generation failed, please try again later

applications

heating

heating

segments

commercial building

commercial building

industry

industry

approvals

no approvals available

item number

size

DN1

l1

z1

slw1

d2

DN2

l2

z2

slw2

M

Y

V

a

item number

0000241

size

Rp1/2"xG3/4" (DN15)

DN1

1/2" (DN15)

l1

30

z1

15

slw1

25

d2

12.5

DN2

3/4" (DN20)

l2

29

z2

44

slw2

25

M

60

Y

14

V

56

a

90

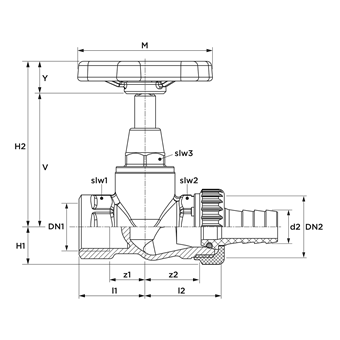

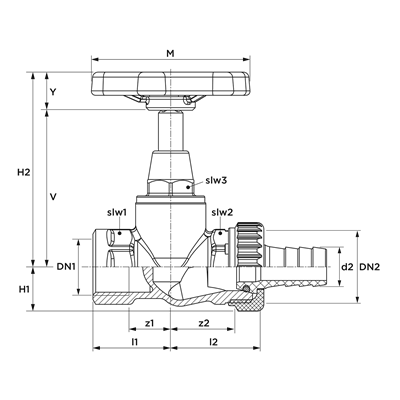

technical drawing for product

characteristics

color

brass, green

materials

brass (CW617N)

finishing

none

shape

straight (0º)

connection type

Rp - female thread cylindrical (BSPT), G - male thread gas cylindrical (BSPP)

pressure rating (PN)

PN 10

sealing

EPDM

general

product group

valves (stop valves)

ETIM class

EC010071 Fill and drain valve

HS code

84818079

brand

Seppelfricke

series

SEPP DIN-Gerade

type

1216

SCIP

62ae05cb-5d58-4e86-a09a-90069f6f35a4

technical

max operating pressure liquid

10 bar

max medium temperature

90 °C

peak medium temperature

90 °C

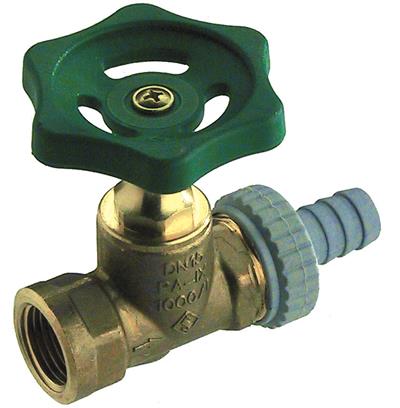

image for 1216

image | jpg

1216

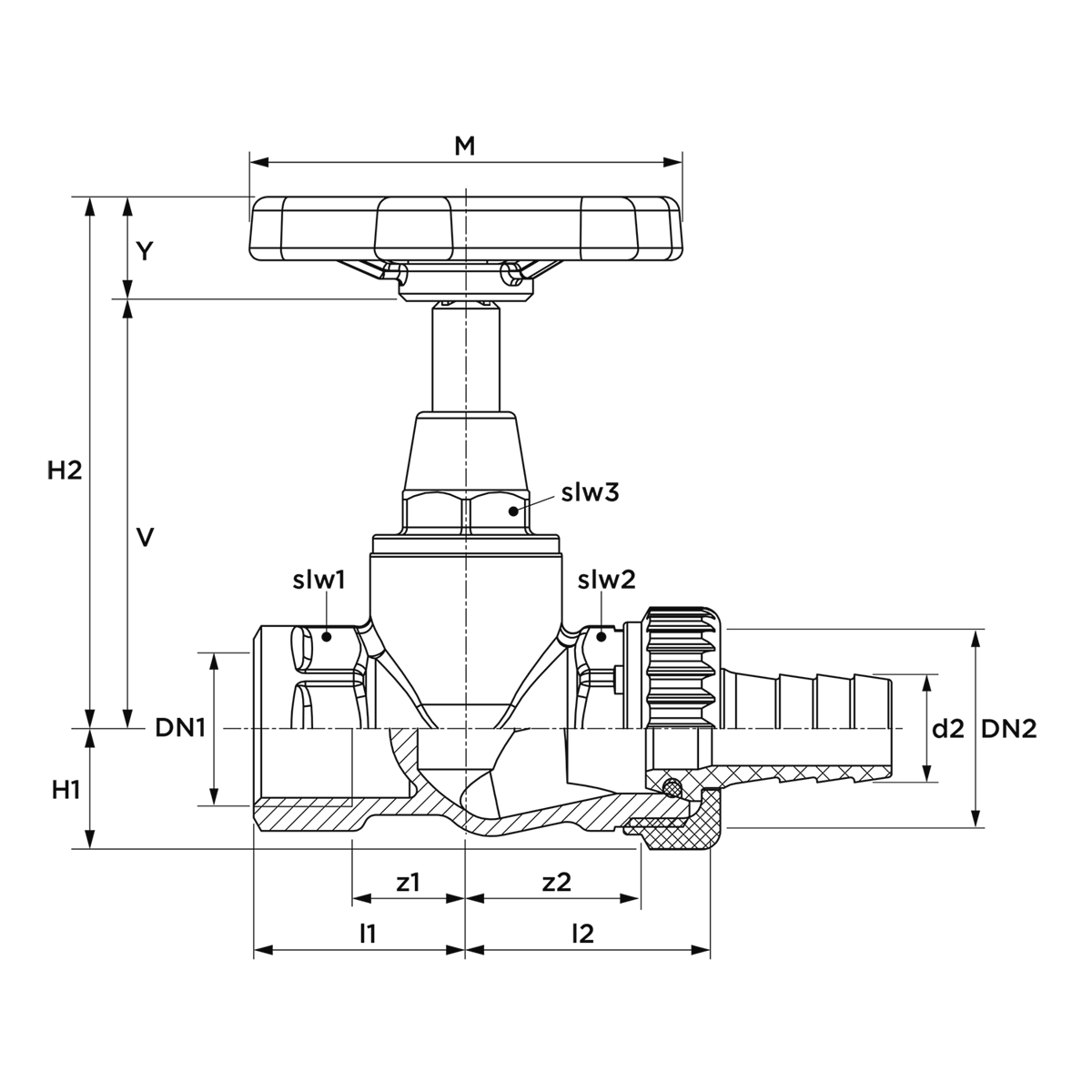

image for Diagram

diagram | png

Diagram

label

value

label

ETIM class

label

Housing material

value

Brass

label

Surface protection

value

Untreated

label

Degree of gloss

value

Matt

label

Nominal diameter connection 1

value

1/2 inch (15)

label

Connection 1

value

Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1)

label

Nominal diameter connection 2

value

3/4 inch (20)

label

Outer pipe diameter connection 2

value

12.5mm

label

Outer pipe diameter connection 2 (imperial)

value

0.49"

label

Max. operating pressure at 20 °C

value

10bar

label

Max. operating pressure at 20 °C (imperial)

value

145.04psi

label

Max. medium temperature (continuous)

value

90°C

label

Max. medium temperature (continuous) (imperial)

value

194°F

label

Operation

value

Hand wheel

label

Sealing element

value

Plug stop

label

With operating key

value

Yes

label

With pressure gauge

value

No

label

With safety overflow valve

value

No

label

Length

value

74mm

label

Working length

value

15mm

label

Working length (imperial)

value

0.59"

label

Suitable for heating

value

Yes

label

Suitable for potable water

value

No

label

Suitable for solar heating

value

No
