Pegler Check valve swing type

group: 1060A

Check valves in the Pegler Commercial range are designed for long trouble free service. All check valves are designed to prevent back flow of fluids in pipe lines and are self acting. They are used for low velocity services, especially liquids and infrequent change of direction in back flow prevention.
  • PN25
  • gunmetal
  • type B according to EN13959:2004
  • EN12288
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

cooling

cooling

steam

steam

compressed air

compressed air

segments

commercial building

commercial building

industry

industry

shipbuilding

shipbuilding

approvals

no approvals available

item number

size

d1

DN1

l1

z1

slw1

d2

DN2

l2

z2

slw2

V

U

a

item number

122007

size

Rp1/2" (DN15)

d1

30.0

DN1

DN15

l1

31

z1

22

slw1

30

d2

30.0

DN2

DN15

l2

31

z2

22

slw2

30

V

45

U

32

a

90

item number

122008

size

Rp3/4" (DN20)

d1

36.0

DN1

DN20

l1

38

z1

27

slw1

36

d2

36.0

DN2

DN20

l2

38

z2

27

slw2

36

V

55

U

38

a

90

item number

122009

size

Rp1" (DN25)

d1

43.0

DN1

DN25

l1

42

z1

30

slw1

37

d2

43.0

DN2

DN25

l2

42

z2

30

slw2

37

V

50

U

45

a

90

item number

122011

size

Rp1 1/2" (DN40)

d1

62.0

DN1

DN40

l1

47

z1

33

slw1

54

d2

62.0

DN2

DN40

l2

47

z2

33

slw2

54

V

65

U

64

a

90

item number

122013

size

Rp2 1/2" (DN65)

d1

95.0

DN1

DN65

l1

74

z1

53

slw1

82

d2

95.0

DN2

DN65

l2

74

z2

53

slw2

82

V

111

U

97

a

90

item number

122014

size

Rp3" (DN80)

d1

114.0

DN1

DN80

l1

88

z1

62

slw1

99

d2

114.0

DN2

DN80

l2

88

z2

62

slw2

99

V

125

U

116

a

90

item number

122015

size

Rp4" (DN100)

d1

140.0

DN1

DN100

l1

111

z1

79

slw1

121

d2

140.0

DN2

DN100

l2

111

z2

79

slw2

121

V

130

U

142

a

90

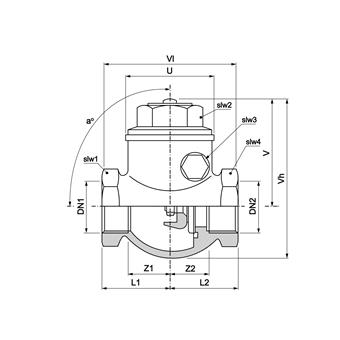

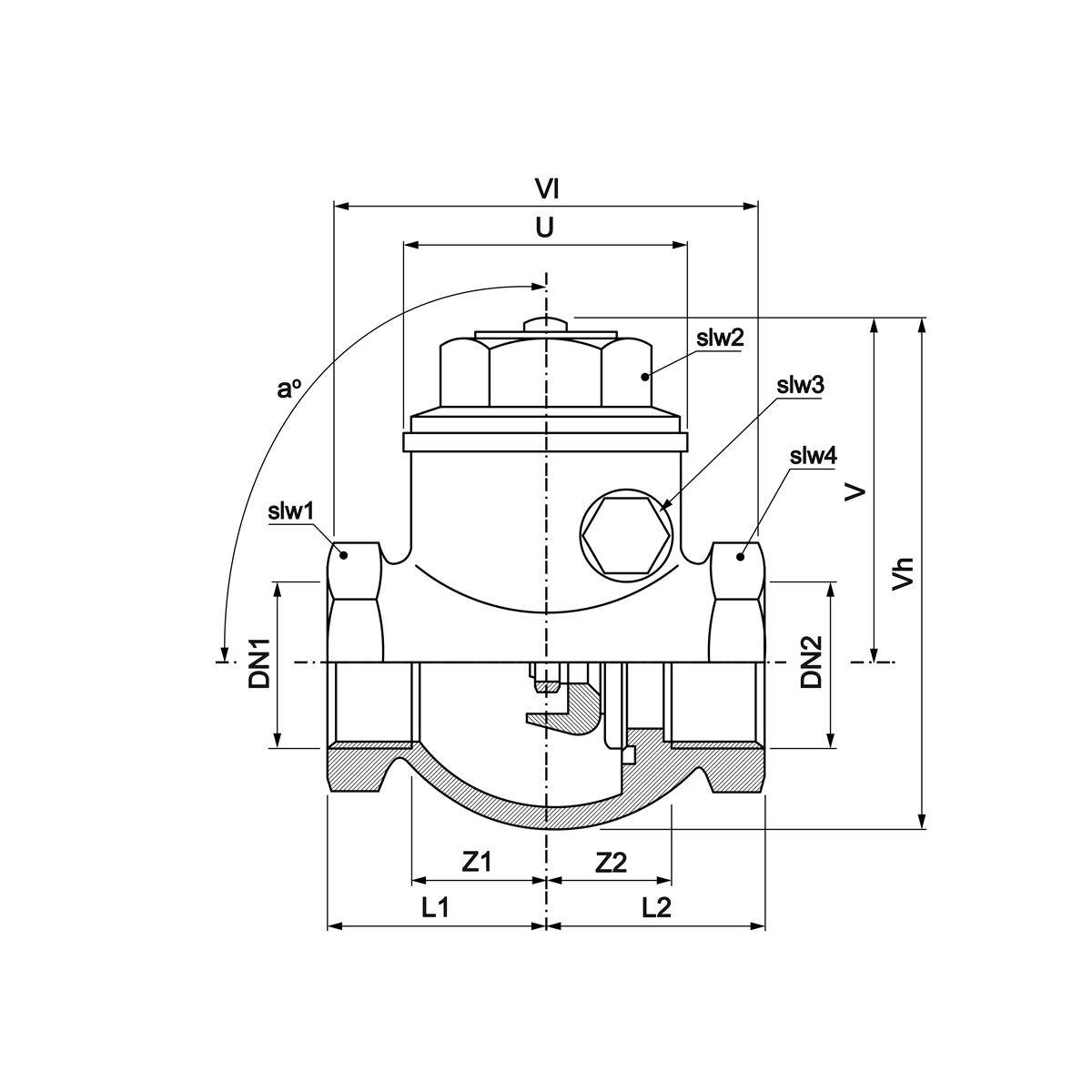

technical drawing for product

characteristics

color

bronze

materials

bronze (EN CC499K)

finishing

none

shape

straight (0º)

connection type

Rp - female thread cylindrical (BSPT)

pressure rating (PN)

PN 25

sealing

Metal sealing

general

product group

valves (check valves)

ETIM class

EC011469 Check valve

HS code

84813099

brand

Pegler

series

Check Valve

type

1060A

UNSPS

40141634

technical

max operating pressure liquid

25 bar

min. medium temperature

-10 °C

max medium temperature

180 °C

peak medium temperature

180 °C

Kv-value

value depends on the item view items

image for 1060A

image | jpg

1060A

image for Diagram

diagram | jpg

Diagram

Other document | pdf

Pegler Valve Installation Instructions

label

value

label

ETIM class

label

Housing material

value

Bronze

label

Material quality

value

Bronze (Rg 5)

label

Surface protection

value

Untreated

label

Connections

value

Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1)

label

Article compression class

value

PN 25

label

Flange compression class

value

PN 25

label

Angle of non-return valve

value

label

Medium temperature (continuous)

value

-10°C - 180°C

label
