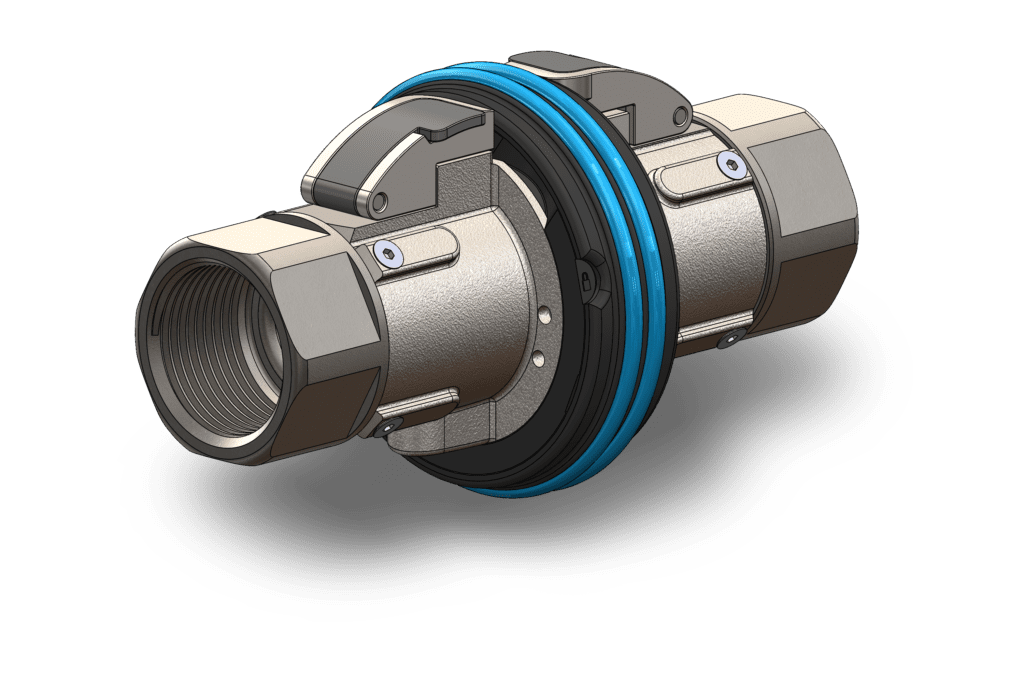

introducing the LC107 Liquid Cooling Interlocking Connection Valve
At Aalberts integrated piping systems, we help data centres keep their cooling systems running smoothly and reliably.
Our Liquid Cooling Interlocking Connection Valve makes installation fast and simple, while reducing the risk of leaks or mistakes.

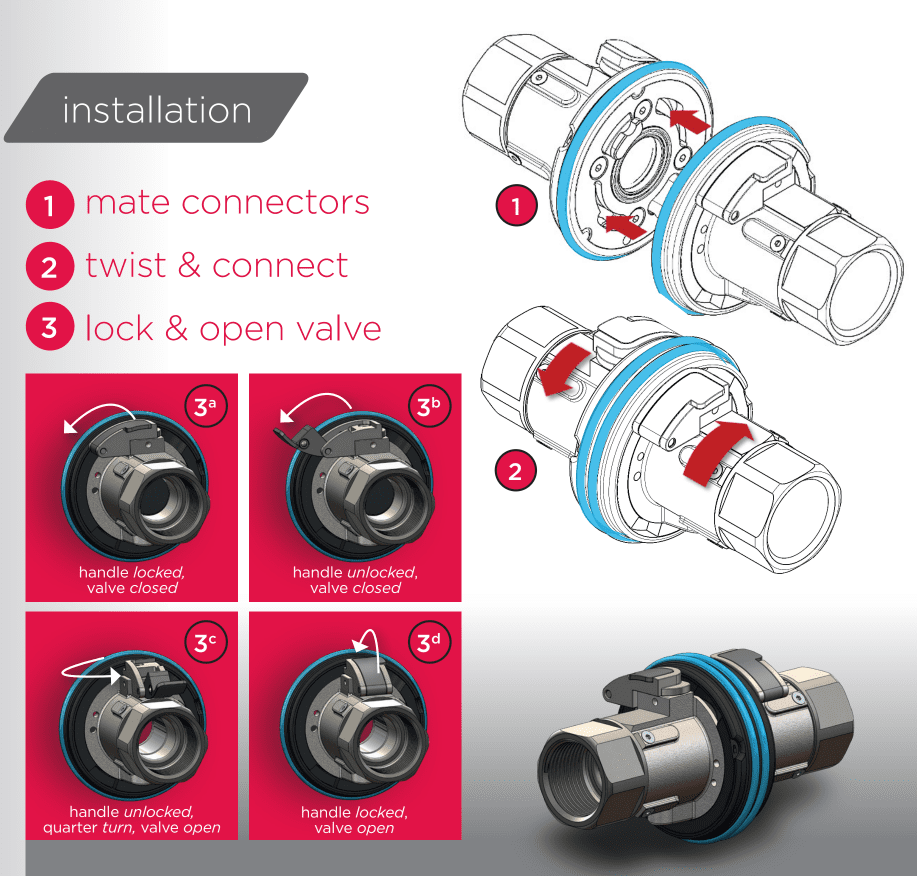

It uses an easy connect-twist-lock action, with built-in safety features to make sure the connection is secure and gives full bore flow. The result is less downtime, safer operation, and greater confidence for data centre teams managing critical cooling systems.
What makes the Liquid Cooling Interlocking Connection Valve special?
The Liquid Cooling Interlocking Connection Valve is especially created for us in datacenters, heating and cooling. You are able to use the valve with a wide range of other Aalberts products so this valve fits perfectly in your Aalberts systems.
features
• 100% safe twist & lock connectors
• full bore flow
• dual interlock safety:
– handles can only turn when valves are twisted and connected
– handles can NOT turn in the disconnected position
• visual flow identification by coloured rings: blue (flow) & orange
(return flow)
• valve end connections can be equipped with female thread, hose
connections and flanged connections

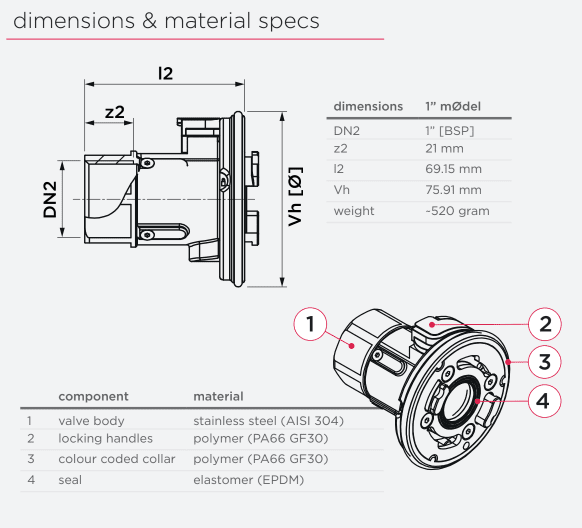

specifications
• max. operating pressure 10 bar (150 psi)
• min. burst pressure 20 bar (300 psi)
• max. vacuum pressure -1 bar (-14.5 psi)
• NRV less than 3.5 cc
