SP4976GV
The VSH SudoPress SP4976GV is a gemini bracket with raised bracket, with press and female thread ends. By using VSH SudoPress in your piping installation you can install in a quick, easy and clean way. VSH SudoPress provides a piping system that can be used in the most diverse situations.
applications
solutions
approvals
| item number | size | weight | dimensions | packaging | gtin |
|---|---|---|---|---|---|
| 6673260 | 15xRp1/2" | 0.3 kg | 178x56x37 mm | bag (1 pce) | 03430651360999 |
| item number | size | d1 | DN1 | l1 | z1 | d2 | DN2 | l2 | z2 | d3 | DN3 | l3 | z3 | d4 | DN4 | l4 | z4 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6673260 | 15xRp1/2" | 15.0 | DN12 | 43 | 21 | 15.0 | DN12 | 43 | 21 | 21.3 | 1/2" (DN15) | 20 | 11 | 21.3 | 1/2" (DN15) | 20 | 11 |
| color | bronze |
|---|---|
| materials | bronze (EN CC499K) |
| finishing | none |
| manufacturer | Aalberts integrated piping systems B.V. (VSH) |
| shape | Wall plate (90º) |
| connection type | press (V), Rp - female thread cylindrical (BSPT) |
| sealing | EPDM |
| product group | fittings |
|---|---|
| ETIM class | EC010162 Wall plate on bracket |
| HS code | 74122000 |
| brand | VSH |
| series | SudoPress Copper |
| type | SP4976GV |
| UNSPS | 40172807 |
| SCIP | 9c667905-838e-436f-9f23-94980e0c8c97 |
SDS-VSH_SudoPress_Copper_gunmetal link to sheet |
download | |

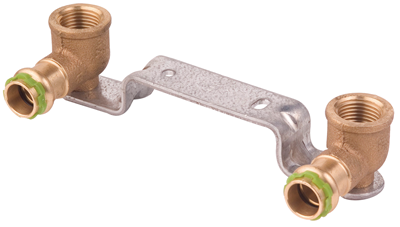

 SP4976V image |
