S1227
The VSH Super S1227 is a threaded T-piece with a compression, a male thread and a female thread end. VSH Super provides a large assortment of fittings for every application, designed for optimum installation convenience. Easy installation and high quality are the top priorities of the VSH Super product range.
applications
solutions
approvals
item number | size | weight | dimensions | packaging | gtin |
---|---|---|---|---|---|
0871805 | 15xR1/2"xG1/2" | 0.13 kg | 69x28x45 mm | bag (25 pce) | 08711985019216 |
item number | size | d1 | DN1 | l1 | z1 | slw1 | d2 | DN2 | l2 | z2 | d3 | DN3 | l3 |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0871805 | 15xR1/2"xG1/2" | 15.0 | DN12 | 33 | 12 | 24 | 21.3 | 1/2" (DN15) | 31 | 16 | 21.3 | 1/2" (DN15) | 36 |
color | brass |
---|---|
materials | brass (CW617N) |
finishing | none |
manufacturer | Aalberts integrated piping systems B.V. (VSH) |
shape | T-piece (90Āŗ) |
connection type | compression, G - female thread gas cylindrical (BSPP), R - male thread gas conical (BSPT) |
sealing | Brass |
product group | fittings |
---|---|
ETIM class | EC003025 Fitting with 3 connections |
HS code | 74122000 |
brand | VSH |
series | Super |
type | S1227 |
SCIP | 1e5d1bf2-d72d-4b8f-ba91-73f637c5ac6d |
EPD-VSH-Super-Brass Environmental Product Declaration |
download | |
MSDS_VSH_Super link to sheet |
download | |

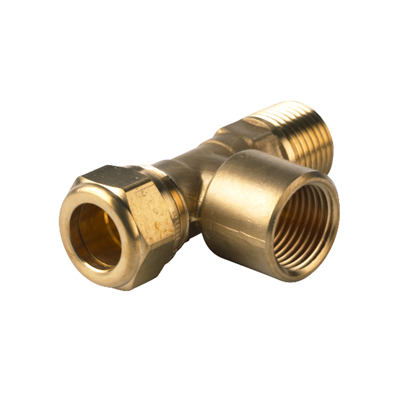

S1227 image |
png | download |
VSH Super DVGW Gas certifications |
download | |
VSH Super DVGW Water certifications |
download | |
VSH Super Knel water 15-42 mm ETA certifications |
download | |
VSH Super PEX ETA 10-22 mm water certifications |
download | |
VSH_Super_Knel_instructie_NL installation- & maintenance document |
download | |

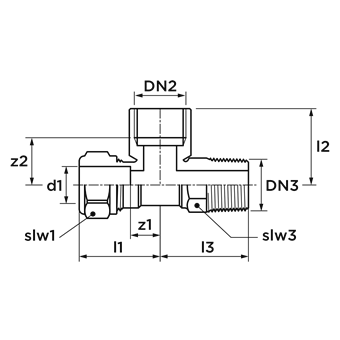

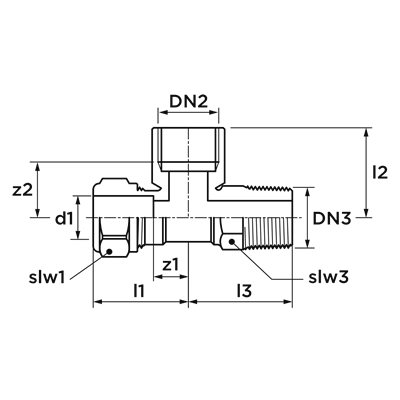

Diagram diagram |
png | download |
label | value |
---|---|
ETIM class | EC003025 Fitting with 3 connections |
Material connection 1 | Brass |
Material quality connection 1 | CuZn40Pb2 (CW617N) |
Surface protection connection 1 | Untreated |
Surface treatment connection 1 | Untreated |
Material connection 2 | Brass |
Material quality connection 2 | CuZn40Pb2 (CW617N) |
Surface protection connection 2 | Untreated |
Surface treatment connection 2 | Untreated |
Material connection 3 | Brass |
Material quality connection 3 | CuZn40Pb2 (CW617N) |
Surface protection connection 3 | Untreated |
Surface treatment connection 3 | Untreated |
Model | T-piece |
Angle | 90° |
Reducing | No |
Multi-part | No |
System specific | Yes |
Nominal diameter connection 1 | DN 12 |
Outer pipe diameter connection 1 | 15mm |
Outer pipe diameter connection 1 (imperial) | 0.59" |
Connection 1 | Compression ring |
Nominal diameter connection 2 | 1/2 inch (15) |
Outer pipe diameter connection 2 | 21.3mm |
Outer pipe diameter connection 2 (imperial) | 0.84" |
Connection 2 | Internal thread cylindrical BSPP-G (ISO 228-1) |
Nominal diameter connection 3 | 1/2 inch (15) |
Outer pipe diameter connection 3 | 21.3mm |
Outer pipe diameter connection 3 (imperial) | 0.84" |
Connection 3 | External thread conical BSPT-R (ISO 7-1 / EN 10226-1) |
Flange compression class | PN 10 |
Material sealing | Brass |
Main colour fitting | Brass |
Length of connection 1 | 33mm |
Length of connection 1 (imperial) | 1.3" |
Working length connection 1 | 12mm |
Working length connection 1 (imperial) | 0.47" |
High tensile strength | Yes |
Length of connection 2 | 31mm |
Length of connection 2 (imperial) | 1.22" |
Working length connection 2 | 16mm |
Working length connection 2 (imperial) | 0.63" |
Length of connection 3 | 36mm |
Length of connection 3 (imperial) | 1.42" |
Max. operating pressure at 20 °C | 10bar |
Max. operating pressure at 20 °C (imperial) | 145.04psi |
Wrench width union nut | 24mm |
Wrench width union nut (imperial) | 0.94" |
Medium temperature (continuous) | -35°C - 200°C |
Medium temperature (continuous) (imperial) | -31°F - 392°F |
With sealing rings/gaskets | No |
With drain valve | No |
With de-aerator | No |
With buffer stud | Yes |
Capped | No |
With connection indicator | No |
FM quality mark | No |
LPCB quality mark | No |
ULC quality mark | No |
UL quality mark | No |
VdS quality mark | No |
DVGW quality mark for gas | Yes |
DVGW quality mark for water | Yes |
KIWA certified | No |
Gastec QA mark | No |
KOMO certified | No |
