R2728G
The VSH XPress R2728G is a stainless steel 90º angle adapter with a press and male thread end, applicable for Gas. Ideal for applications where high levels of hydrogen sulphide make copper an unsuitable material choice. The yellow O-ring and prominent marking on the exterior of this fitting ensure a clear identification of the system.
applications
solutions
approvals
item number | size | weight | dimensions | packaging | gtin |
---|---|---|---|---|---|
6211458 | 15xR1/2" | 0.09 kg | 67x48x26 mm | bag (10 pce) | 08711985210460 |
6211469 | 18xR1/2" | 0.1 kg | 67x49x26 mm | bag (10 pce) | 08711985210477 |
6211471 | 22xR3/4" | 0.15 kg | 74x54x35 mm | bag (10 pce) | 08711985210484 |
6211480 | 28xR1" | 0.25 kg | 62x62x42 mm | bag (10 pce) | 08711985210491 |
6211491 | 35xR1 1/4" | 0.34 kg | 93x71x54 mm | bag (5 pce) | 08711985210781 |
item number | size | d1 | DN1 | l1 | z1 | d2 | DN2 | l2 | slw2 |
---|---|---|---|---|---|---|---|---|---|
6211458 | 15xR1/2" | 15.0 | DN12 | 53 | 32 | 21.3 | 1/2" (DN15) | 36 | 22 |
6211469 | 18xR1/2" | 18.0 | DN15 | 51 | 30 | 21.3 | 1/2" (DN15) | 36 | 22 |
6211471 | 22xR3/4" | 22.0 | DN20 | 58 | 35 | 26.9 | 3/4" (DN20) | 40 | 28 |
6211480 | 28xR1" | 28.0 | DN25 | 63 | 39 | 33.7 | 1" (DN25) | 44 | 36 |
6211491 | 35xR1 1/4" | 35.0 | DN32 | 71 | 44 | 42.4 | 1 1/4" (DN32) | 48 | 46 |
color | silver |
---|---|
materials | stainless steel (Stainless steel 316L (1.4404)) |
finishing | none |
manufacturer | Aalberts integrated piping systems B.V. (VSH) |
shape | Elbow (90º) |
connection type | press (M), R - male thread gas conical (BSPT) |
sealing | HNBR |
product group | fittings |
---|---|
ETIM class | EC003024 Fitting with 2 connections |
HS code | 73072980 |
brand | VSH |
series | XPress Stainless Gas |
type | R2728G |
UNSPS | 40172807 |

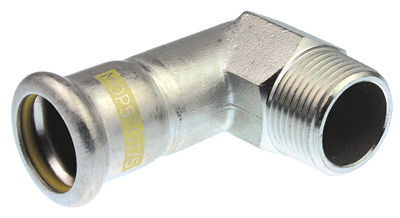

R2728G image |
png | download |
VSH XPress Stainless Gas ARGB-KVBG certifications |
download | |
VSH XPress Stainless Gas BSI certifications |
download | |
VSH XPress stainless DVGW Gas certifications |
download | |
VSH XPress stainless SVGW Gas certifications |
download | |
VSH_XPress_RVS_OVGW_Gas certifications |
download | |

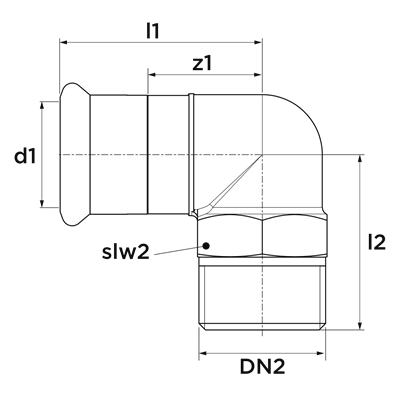

Diagram diagram |
png | download |
VSH XPress installation instructions installation- & maintenance document |
download |
label | value |
---|---|
ETIM class | EC003024 Fitting with 2 connections |
Material connection 1 | Stainless steel |
Material quality connection 1 | Stainless steel 316 L (1.4404) |
Surface protection connection 1 | Untreated |
Surface treatment connection 1 | Untreated |
Material connection 2 | Stainless steel |
Material quality connection 2 | Stainless steel 316 L (1.4404) |
Surface protection connection 2 | Untreated |
Surface treatment connection 2 | Untreated |
Shape | Bend |
Model | 1-part |
Bend angle | 90° |
Reducing | No |
Eccentric | No |
System specific | Yes |
Wall thickness, connection 1 | 1.5mm |
Connection 1 | Press sleeve |
Contour code connection 1 | M |
Connection 2 | External thread conical BSPT-R (ISO 7-1 / EN 10226-1) |
Main colour fitting | Grey |
Material sealing | Hydrogenated acrylonitrile butadiene rubber (HNBR) |
With buffer stud | Yes |
High tensile strength | Yes |
Medium temperature (continuous) | -20°C - 70°C |
Medium temperature (continuous) (imperial) | -4°F - 158°F |
With thermal insulation | No |
With sealing rings/gaskets | No |
Capped | No |
With connection indicator | No |
With drain valve | No |
With de-aerator | No |
FM quality mark | No |
LPCB quality mark | No |
ULC quality mark | No |
UL quality mark | No |
DIN-CERTCO certificate | No |
VdS quality mark | No |
With approval for TÜV | No |
DVGW quality mark for gas | Yes |
DVGW quality mark for water | No |
Certified according to NF 545 | No |
KIWA certified | No |
Gastec QA mark | No |
KOMO certified | No |
Type approval according to BBR/EKS | No |
