Product Image for VSH PowerPress swing check valve (2 x press)

Product Image for VSH PowerPress swing check valve (2 x press)

group: PP1060A

The VSH PowerPress^® swing check valve is a part of the VSH PowerPress^® system. By using this system installation times are reduced significantly and a clean working environment is assured. The range consists of DW-profile press fittings and valves in sizes ½" up to and including 2".

bronze metal seated check valve
horizontal and vertical fixing, indicated by flow directional Arrow
outstanding corrosion resistance due to ZnNi coating
clear identification of materials and dimensions
Visu-Control-ring and Leak Before Pressed-function

read more

read less

if the download did not start automatically, click here

PDF generation failed, please try again later

heating

cooling

compressed air

potable water

steam

show all

show less

industry

shipbuilding

commercial building

show all

show less

no approvals available

code

size

dimensions

weight

packaging

gtin

code

size

1/2 (DN15)

dimensions

138x43x68 mm

weight

0.56 kg

packaging

bag (1 pce)

gtin

05022050631794

code

size

3/4 (DN20)

dimensions

155x56x81 mm

weight

0.83 kg

packaging

bag (1 pce)

gtin

05022050631824

code

size

1 (DN25)

dimensions

170x63x92 mm

weight

1.21 kg

packaging

bag (1 pce)

gtin

05022050631855

code

size

1 1/4 (DN32)

dimensions

211x70x103 mm

weight

1.84 kg

packaging

bag (1 pce)

gtin

05022050631886

code

size

1 1/2 (DN40)

dimensions

226x86x120 mm

weight

2.36 kg

packaging

carton (1 pce)

gtin

05022050527387

code

size

2 (DN50)

dimensions

243x100x143 mm

weight

3.55 kg

packaging

carton (1 pce)

gtin

05022050527394

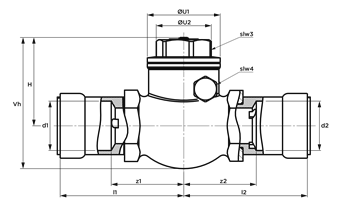

code

size

d1

DN1

l1

z1

d2

DN2

l2

z2

H

V

U

a

code

size

1/2 (DN15)

d1

21.3

DN1

DN15

l1

69

z1

41

d2

21.3

DN2

DN15

l2

69

z2

41

H

46

V

35

U

40

a

90

code

size

3/4 (DN20)

d1

26.9

DN1

DN20

l1

78

z1

47

d2

26.9

DN2

DN20

l2

78

z2

47

H

54

V

42

U

48

a

90

code

size

1 (DN25)

d1

33.7

DN1

DN25

l1

86

z1

50

d2

33.7

DN2

DN25

l2

86

z2

50

H

62

V

49

U

51

a

90

code

size

1 1/4 (DN32)

d1

42.4

DN1

DN32

l1

107

z1

59

d2

42.4

DN2

DN32

l2

107

z2

59

H

68

V

55

U

57

a

90

code

size

1 1/2 (DN40)

d1

48.3

DN1

DN40

l1

116

z1

67

d2

48.3

DN2

DN40

l2

116

z2

67

H

77

V

63

U

65

a

90

code

size

2 (DN50)

d1

60.3

DN1

DN50

l1

129

z1

76

d2

60.3

DN2

DN50

l2

129

z2

76

H

93

V

77

U

85

a

90

product info

item

VSH PowerPress swing check valve (2 x press)

item number with gtin

PP1060A

manufacturer

Aalberts integrated piping systems Ltd (Pegler)

weight

3.55 kg

dimensions

243x100x143 mm

characteristics

color

black

materials

bronze (EN CC499K)

finishing

none

shape

straight

connection type

press (DW)

pressure rating (PN)

PN 16

sealing

EPDM

technical

max operating pressure liquid

16 bar

min. medium temperature

-10 °C

max medium temperature

110 °C

peak medium temperature

110 °C

general

product group

afsluiters (check valves)

ETIM class

EC011469 Check valve

HS code

84813099

brand

VSH

series

PowerPress

type

PP1060A

UNSPS

40141634

image for PP1060A

image | png

PP1060A

image for Diagram

diagram | png

Diagram

installation- & maintenance document | pdf

VSH PowerPress installation instructions

label

value

label

etim-class

value

EC011469 Check valve

label

Housing material

value

Bronze

label

Material quality

value

Bronze (Rg 5)

label

Surface protection

value

Untreated

label

Connections

value

Press sleeve

label

Contour code

value

DW

label

Article compression class

value

PN 16

label

Flange compression class

value

PN 16

label

Sealing

value

Ethylene-propylene diene monomer rubber (EPDM)

label

Angle of non-return valve

value

label

Medium temperature (continuous)

value

-10°C - 110°C

label

Medium temperature (continuous) (imperial)

value

14°F - 230°F

label

Max. operating pressure at 20 °C

value

16bar

label

Max. operating pressure at 20 °C (imperial)

value

232.06psi

label

FM quality mark

value

No

label

UL quality mark

value

No

label

ULC quality mark

value

No

label

LPCB quality mark

value

No

label

Suitable for central heating water

value

Yes

label

Certified according to SVGW for water

value

No

label

Certified according to SVGW for gas

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

KIWA certified

value

No
