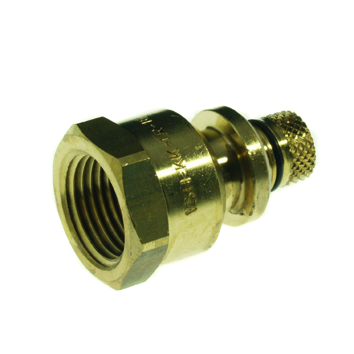

VSH Multicon S straight connector (sleeve x female thread)

VSH Multicon S straight connector (sleeve x female thread)

group: K3222

The VSH Multicon S K3222 is a straight connector with a sleeve- and female thread end. With VSH Multicon S, Aalberts integrated piping systems offers a complete plastic piping system for installing central heating, gas, drinking water, cooling and oil-free compressed air installations. VSH Multicon S provides a complete range of fittings, plastic pipes, valves and tools.

  • Low flow resistance and noise
  • Quick and secure installation
  • Clear visual inspection (Leake Before Pressed)
  • Slim compression sleeve fittings made of dezincification resistant brass
  • Provided with all relevant approvals

applications

potable water

potable water

heating

heating

cooling

cooling

compressed air

compressed air

show all
show less

solutions

building installations

building installations

show all
show less

approvals

KIWA

KIWA

KOMO

KOMO

show all
show less
item number size weight dimensions packaging gtin
0728035 14xRp1/2" 0.08 kg 45x33x33 mm bag (10 pce) 08711985278941
0726187 16xRp1/2" 0.07 kg 41x33x33 mm bag (10 pce) 08711985051810
0726198 20xRp1/2" 0.09 kg 45x33x33 mm bag (10 pce) 08711985051827
item number size d1 DN1 l1 z1 DN2 l2 z2
0728035 14xRp1/2" 14.0 DN10 21 8 1/2" (DN15) 24 9
0726187 16xRp1/2" 16.0 DN12 20 8 1/2" (DN15) 24 9
0726198 20xRp1/2" 20.0 DN15 23 8 1/2" (DN15) 24 9

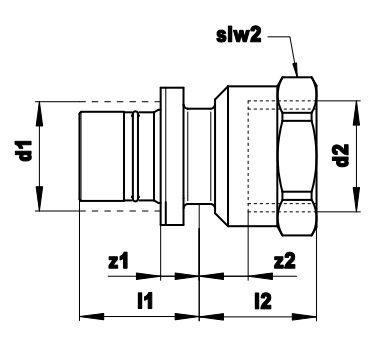

drawing for product
color brass
materials brass
finishing none
manufacturer Aalberts integrated piping systems B.V. (VSH)
shape straight, reducer
connection type sleeve, Rp - female thread cylindrical (BSPT)
sealing EPDM
product group fittings
ETIM class EC003024 Fitting with 2 connections
HS code 74122000
brand VSH
series Multicon S
type K3222
label value
ETIM class EC003024 Fitting with 2 connections
Material connection 1 Brass
Surface protection connection 1 Untreated
Surface treatment connection 1 Untreated
Material connection 2 Brass
Surface protection connection 2 Untreated
Surface treatment connection 2 Untreated
Shape Straight
Eccentric No
System specific Yes
Connection 1 Slide sleeve
Nominal diameter connection 2 1/2 inch (15)
Connection 2 Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1)
Main colour fitting Brass
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With buffer stud No
High tensile strength Yes
Working length connection 1 7.5mm
Working length connection 1 (imperial) 0.3"
Length of connection 2 24mm
Length of connection 2 (imperial) 0.94"
Working length connection 2 9mm
Working length connection 2 (imperial) 0.35"
Max. operating pressure at 20 °C 10bar
Max. operating pressure at 20 °C (imperial) 145.04psi
Capped No
FM quality mark No
LPCB quality mark No
ULC quality mark No
UL quality mark No
VdS quality mark No
DVGW quality mark for gas No
DVGW quality mark for water No
Certified according to NF 545 No
KIWA certified Yes
Gastec QA mark No
KOMO certified Yes
Gastec QA - AR 214 (H2) No
