K3066

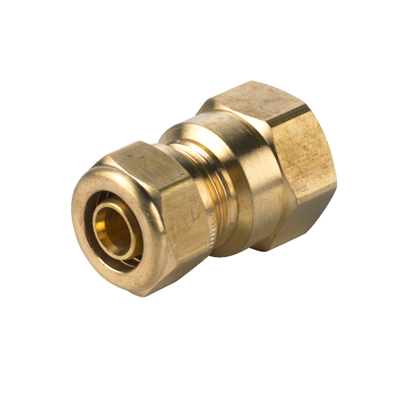

The VSH Multi Super K3066 is a straight connector with a compression and a female thread end. VSH Super provides a large assortment of fittings for every application, designed for optimum installation convenience. Easy installation and high quality are the top priorities of the VSH Super product range.
applications
solutions

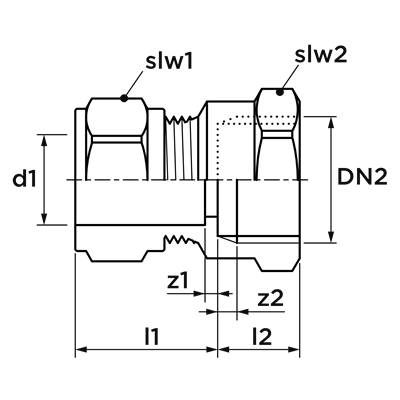

| item number | size | weight | dimensions | packaging | gtin |
|---|---|---|---|---|---|
| 0892091 | 14xRp1/2" | 0.11 kg | 45x31x45 mm | carton (10 pce) | 08711985187052 |
| 0892199 | 16xRp1/2" | 0.11 kg | 45x31x45 mm | carton (10 pce) | 08711985186871 |
| 0891264 | 20xRp1/2" | 0.17 kg | 47x37x47 mm | carton (5 pce) | 08711985267693 |
| 0891308 | 25xRp1" | 0.28 kg | 57x48x57 mm | carton (5 pce) | 08711985268768 |
| 0891286 | 25xRp3/4" | 0.27 kg | 54x45x54 mm | carton (5 pce) | 08711985268744 |
| 0891319 | 26xRp1" | 0.28 kg | 57x48x57 mm | carton (5 pce) | 08711985267754 |
| 0891297 | 26xRp3/4" | 0.27 kg | 54x45x54 mm | carton (5 pce) | 08711985267730 |
| item number | size | d1 | DN1 | l1 | z1 | slw1 | d2 | DN2 | l2 | z2 | slw2 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0892091 | 14xRp1/2" | 14.0 | DN12 | 26 | 9 | 24 | 21.3 | 1/2" (DN15) | 19 | 4 | 27 |
| 0892199 | 16xRp1/2" | 16.0 | DN12 | 26 | 13 | 24 | 21.3 | 1/2" (DN15) | 19 | 4 | 27 |
| 0891264 | 20xRp1/2" | 20.0 | DN15 | 31 | 15 | 32 | 21.3 | 1/2" (DN15) | 16 | 0 | 30 |
| 0891308 | 25xRp1" | 25.0 | DN20 | 34 | 15 | 39 | 33.7 | 1" (DN25) | 23 | 4 | 41 |
| 0891286 | 25xRp3/4" | 25.0 | DN20 | 32 | 13 | 39 | 26.9 | 3/4" (DN20) | 22 | 6 | 36 |
| 0891319 | 26xRp1" | 26.0 | DN20 | 34 | 15 | 39 | 33.7 | 1" (DN25) | 23 | 4 | 41 |
| 0891297 | 26xRp3/4" | 26.0 | DN20 | 32 | 13 | 39 | 26.9 | 3/4" (DN20) | 22 | 6 | 36 |
| color | brass |
|---|---|
| materials | brass (CW617N) |
| finishing | none |
| manufacturer | Aalberts integrated piping systems B.V. (VSH) |
| shape | straight, reducer |
| connection type | compression, Rp - female thread cylindrical (BSPT) |
| sealing | Brass |
| product group | fittings |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| HS code | 74122000 |
| brand | VSH |
| series | Multi Super Compression |
| type | K3066 |
| SCIP | 1e5d1bf2-d72d-4b8f-ba91-73f637c5ac6d |
| label | value |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| Material connection 1 | Brass |
| Material quality connection 1 | CuZn36Pb2As (CW602N) |
| Surface protection connection 1 | Untreated |
| Surface treatment connection 1 | Untreated |
| Material connection 2 | Brass |
| Material quality connection 2 | CuZn36Pb2As (CW602N) |
| Surface protection connection 2 | Untreated |
| Surface treatment connection 2 | Untreated |
| Shape | Straight |
| Model | 1-part |
| Eccentric | No |
| System specific | Yes |
| Connection 1 | Compression ring |
| Connection 2 | Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1) |
| Main colour fitting | Brass |
| Flange compression class | PN 10 |
| Material sealing | Brass |
| With buffer stud | Yes |
| High tensile strength | Yes |
| Medium temperature (continuous) | -20°C - 70°C |
| Medium temperature (continuous) (imperial) | -4°F - 158°F |
| Max. operating pressure at 20 °C | 10bar |
| Max. operating pressure at 20 °C (imperial) | 145.04psi |
| With sealing rings/gaskets | No |
| Capped | No |
| With connection indicator | No |
| With de-aerator | No |
| FM quality mark | No |
| LPCB quality mark | No |
| ULC quality mark | No |
| UL quality mark | No |
| VdS quality mark | No |
| DVGW quality mark for gas | No |
| DVGW quality mark for water | No |
| Certified according to NF 545 | No |
| KIWA certified | No |
| Gastec QA mark | No |
| KOMO certified | No |
