H3777
applications
solutions
| item number | size | weight | dimensions | packaging | gtin |
|---|---|---|---|---|---|
| 3205477 | G1/2" Ni | 0.27 kg | 74x32x89 mm | bag (1 pce) | 08711985108651 |
| item number | size | DN1 | z1 | DN2 | z2 | angle |
|---|---|---|---|---|---|---|
| 3205477 | G1/2" Ni | 1/2" (DN15) | 37 | 3/4" (DN20) | 22 | 90 |
| color | silver |
|---|---|
| materials | brass |
| finishing | nickel-plated |
| manufacturer | Simplex |
| shape | Perpendicular (90º) |
| connection type | G - male thread gas cylindrical (BSPP) |
| pressure rating (PN) | PN 10 |
| product group | valves (fill and drain valve) |
|---|---|
| ETIM class | EC010071 Fill and drain valve |
| HS code | 84818039 |
| brand | Simplex |
| series | KFE |
| type | H3777 |

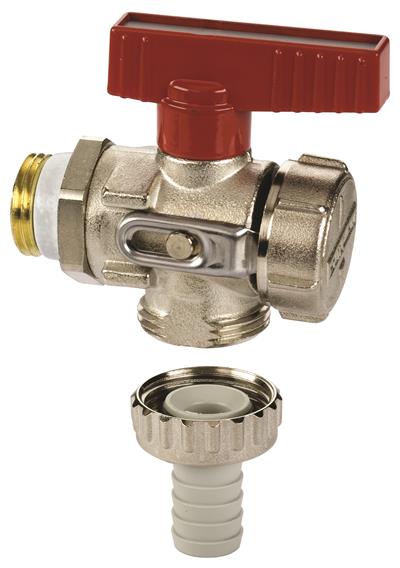

 H3777 image |
jpg | download |
| label | value |
|---|---|
| ETIM class | EC010071 Fill and drain valve |
| Housing material | Brass |
| Surface protection | Nickel-plated |
| Nominal diameter connection 1 | 1/2 inch (15) |
| Connection 1 | External thread cylindrical BSPP-G (ISO 228-1) |
| Nominal diameter connection 2 | 3/4 inch (20) |
| Max. operating pressure at 20 °C | 10bar |
| Max. operating pressure at 20 °C (imperial) | 145.04psi |
| Max. medium temperature (continuous) | 110°C |
| Max. medium temperature (continuous) (imperial) | 230°F |
| Length | 74mm |
| Working length | 37mm |
| Working length (imperial) | 1.46" |
| Suitable for heating | Yes |
| Suitable for potable water | No |
| Suitable for solar heating | No |
